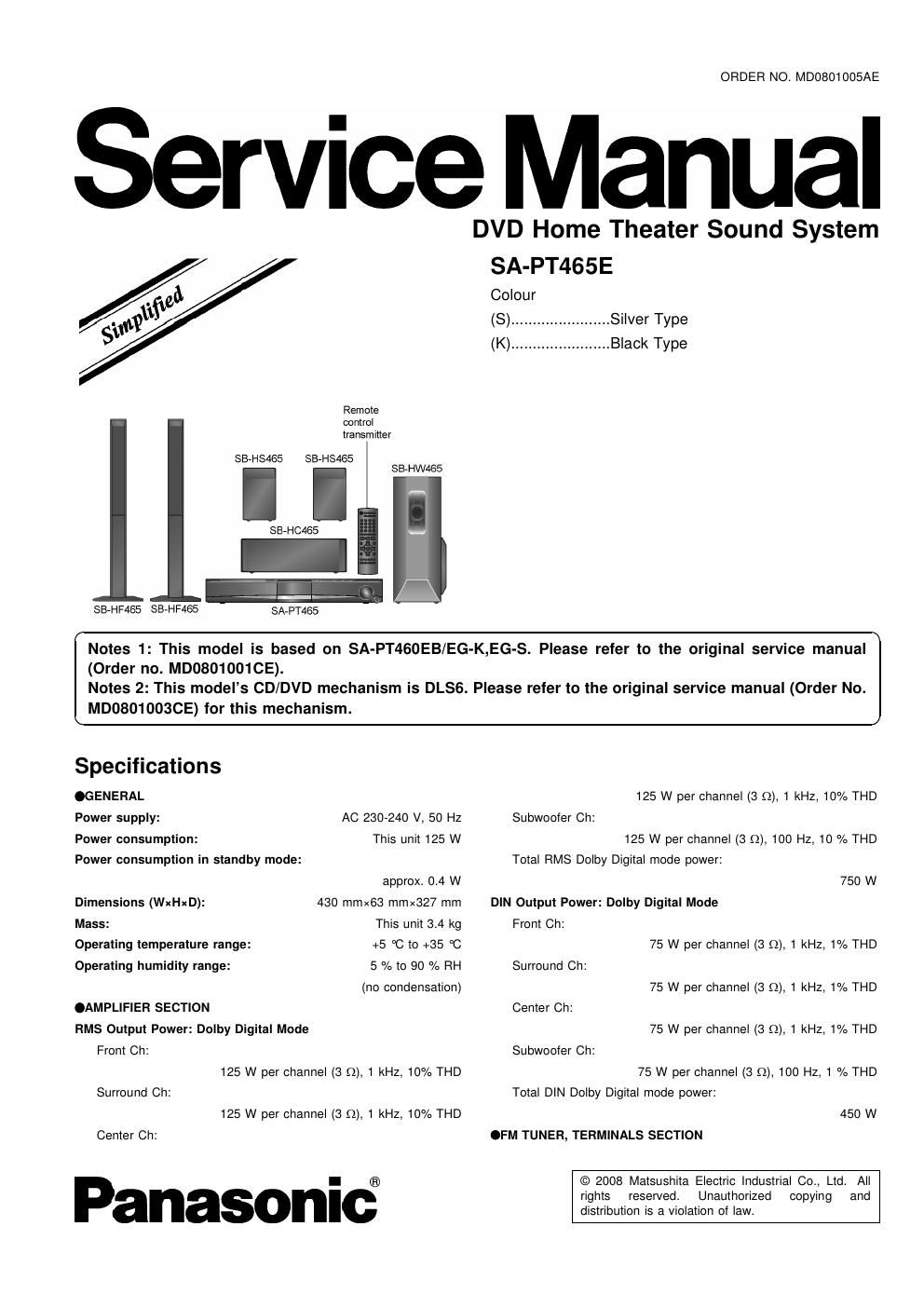

ORDER NO. MD0801005AE
Service Manual
Remote
DVD Home Theater Sound System
SA-PT465E
Colour
(8) ....................... Silver Type
Notes 1: This model is based on SA-PT460EB/EG-K,EG-S. Please refer to the original service manual
(Order no. MD0801001CE).
Notes 2: This models CD/DVD mechanism is DLSG. Please refer to the original service manual (Order No.
MD0801003CE) for this mechanism.
Specifications
Power supply: AC 230-240 V, 50 Hz
Power consumption: This unit 125 W
Power consumption in standby mode:
approx. 0.4 W
430 mmx63 mmx327 mm
This unit 3.4 kg
+5 0 to +35 °C
5 % to 90 % RH
(no condensation)
Dimensions (WxHxD):
Mass:
Operating temperature range:
.AMPLIFIER SECTION
Panasonic®
125 W per channel (3 Q), 1 kHz, 10% THD
© 2008 Matsushita Electric Industrial Co., Ltd. All
control
tmnsmitter
SB- H8465 834-15465
I I SB HW465
-3- H0465
SB
(K) ....................... Black Type
.GENEFIAL
Operating humidity range:
HMS Output Power: Dolby Digital Mode
Front Ch:
125 W per channel (3 Q), 1 kHz, 10% THD
Surround Ch:
125 W per channel (3 Q), 1 kHz, 10% THD
Center Ch:
Subwooler Ch:
125 W per channel (3 Q), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power:
750 W
DIN Output Power: Dolby Digital Mode
Front Ch:
75 W per channel (3 Q), 1 kHz, 1% THD
Surround Ch:
75 W per channel (3 Q), 1 kHz, 1% THD
Center Ch:
75 W per channel (3 Q), 1 kHz, 1% THD
Subwoofer Ch:
75 W per channel (3 Q), 100 Hz, 1 % THD
Total DIN Dolby Digital mode power:
450 W
.FM TUNER, TERMINALS SECTION
rights reserved. Unauthorized copying and
distribution is a violation of law.
