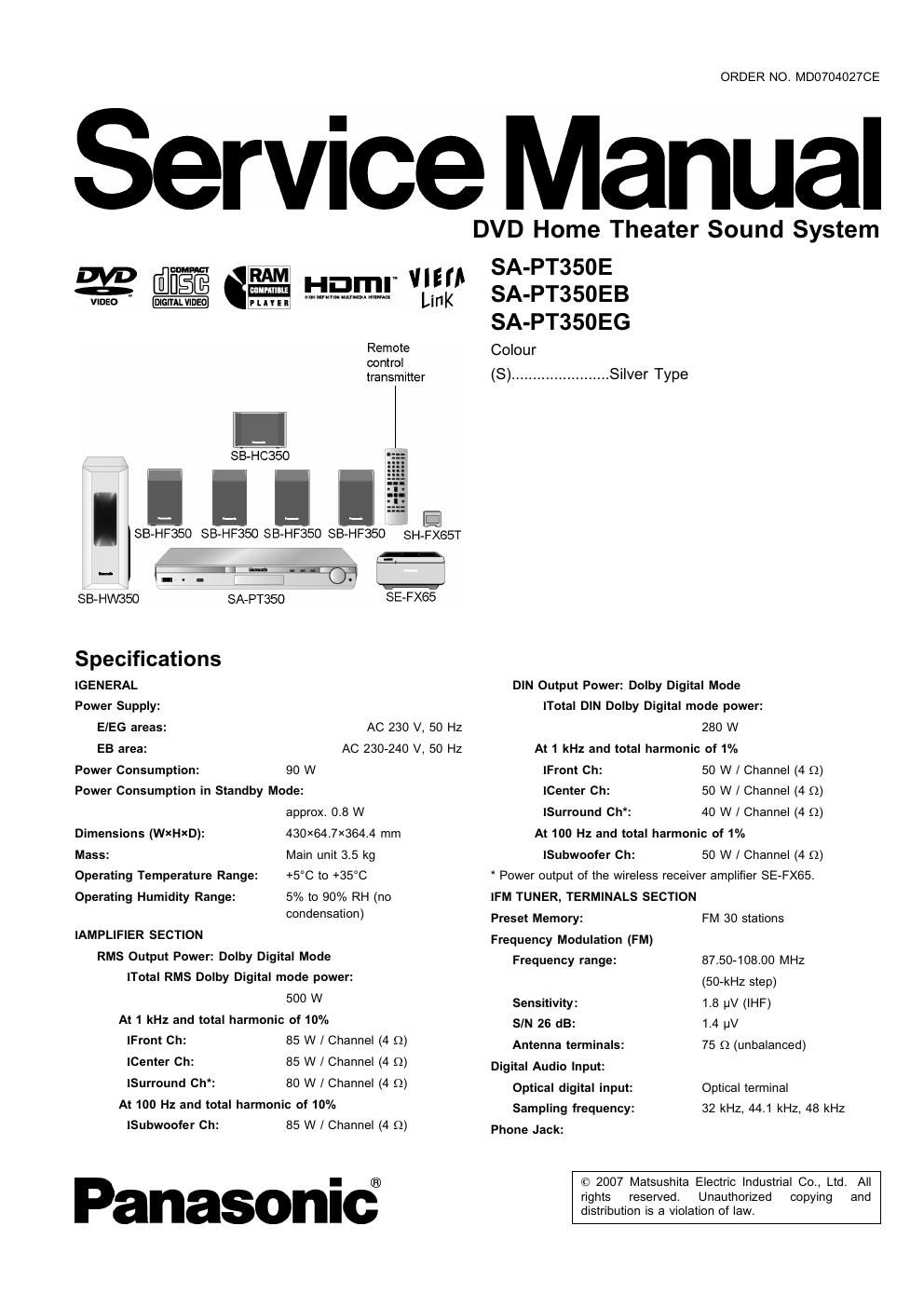

ORDER NO. MD0704027CE

Service Manual

|V|Effi
LinK

% mimso

vruso ' WALVIDEO

Remote
control
transmitter

E

SB- HC350

II a

SB- HF350 SB- HF350 SB- HF350 SB- HF350 SH- FX65T

SB-HW350 SE-FXGS

Specifications
[GENERAL
Power Supply:

E/EG areas:

EB area:

AC 230 V, 50 HZ
AC 230-240 V, 50 HZ

90 W
Power Consumption in Standby Mode:

Power Consumption:

approx. 0.8 W
4SOX64.7X364.4 mm
Main unit 3.5 kg
+5°C to +35°C

5% to 90% RH (no
condensation)

Dimensions (WXHXD):

Mass:

Operating Temperature Range:
Operating Humidity Range:

[AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
[Total RMS Dolby Digital mode power:

500 W
At 1 kHz and total harmonic of 10%
[Front Ch: 85 W / Channel (4 (2)
[Center Ch: 85 W / Channel (4 Q)

[Surround Ch: 80 W / Channel (4 9)
At 100 Hz and total harmonic of 10%
[Subwoofer Ch: 85 W / Channel (4 Q)

Panasonic®

DVD Home Theater Sound System

SA-PT350E
SA-PT350EB
SA-PT350EG

Colour
(S) ....................... Silver Type

DIN Output Power: Dolby Digital Mode
[Total DIN Dolby Digital mode power:

280 W

At 1 kHz and total harmonic of 1%
[Front Ch: 50 W / Channel (4 9)
[Center Ch: 50 W / Channel (4 Q)

[Surround Ch": 40 W / Channel (4 (2)
At 100 Hz and total harmonic of 1%

[Subwoofer Ch: 50 W / Channel (4 Q)
" Power output of the wireless receiver amplifier SE-FX65.
[FM TUNER, TERMINALS SECTION
Preset Memory: FM 30 stations
Frequency Modulation (FM)
875040800 MHZ
(SO-kHz step)
1.8 W (lHF)
1.4 W
75 Q (unbalanced)

Frequency range:

Sensitivity:

SIN 26 dB:

Antenna terminals:
Digital Audio Input:

Optical digital input: Optical terminal
Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

Phone Jack:

© 2007 Matsushita Electric Industrial 00., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
