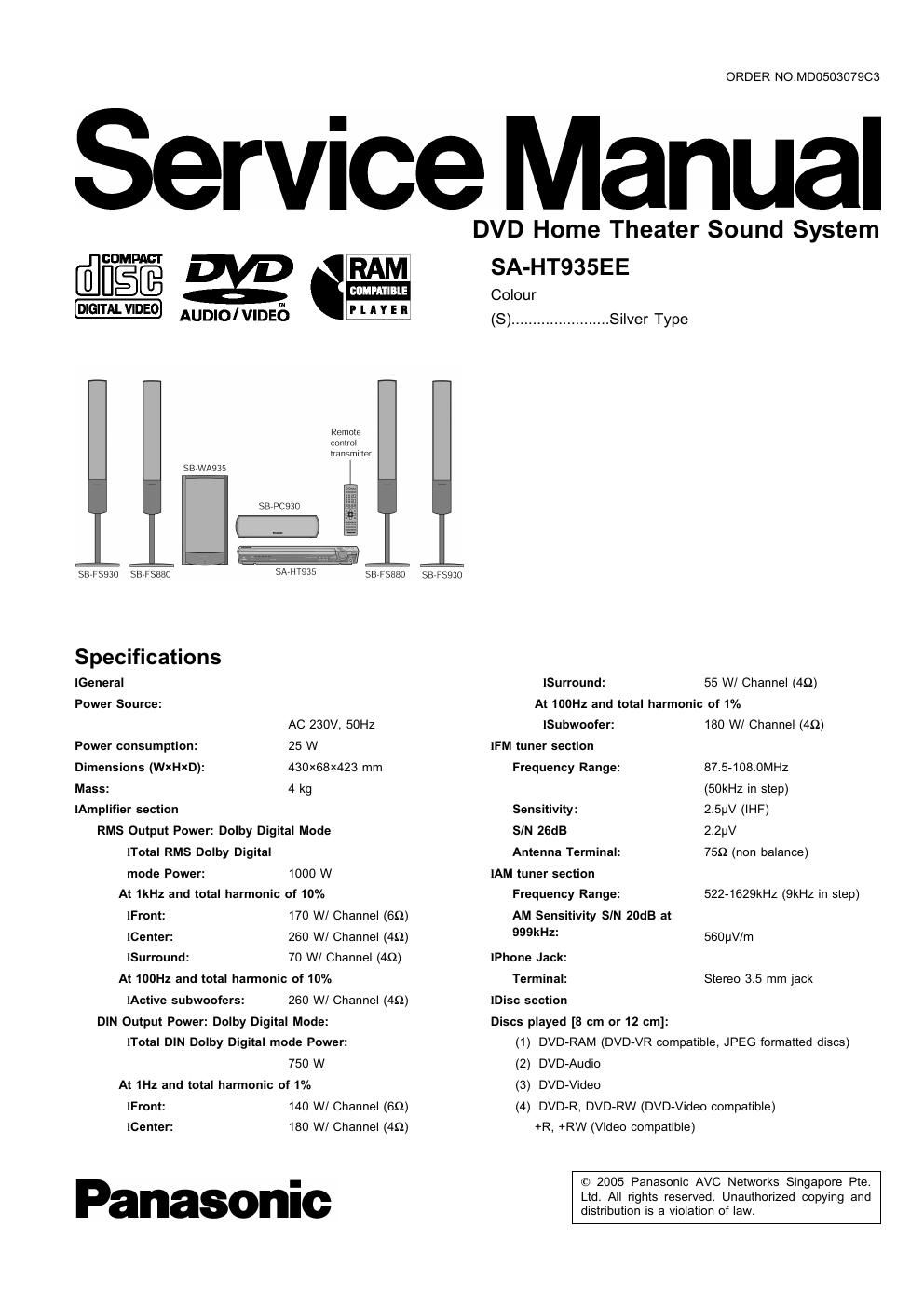

Page 1
ORDER NO.MD050307903
Service Manual
DVD Home Theater Sound System
[filfigfi E w :lej-IT935EE
AUDIO/VIBE?)
(8). .Silver Type
Remote
control.
udnsmltler
SB WAQSS
sarcssu
SR F5930 siérisarso a SA'HW 5515830 #1159370
Specifications
[General lSurround: 55 WI Channel (49)
Power Source: At 100Hz and total harmonic of 1%
AC 230V, 50HZ [Subwooferz 180 WI Channel (49)
Power consumption: 25 W [FM tuner section
Dimensions (WXHXD): 430><68><423 mm Frequency Range: 87.5-108.0MHZ
Mass: 4 kg (50kHz in step)
[Amplifier section Sensitivity: 2.5pV (IHF)
RMS Output Power: Dolby Digital Mode SIN 26dB 2.2pV
[Total RMS Dolby Digital Antenna Terminal: 759 (non balance)
mode Power: 1000 W [AM tuner section
At 1kHz and total harmonic of 10% Frequency Range: 522-1629kHz (9kHz in step)
[Front: 170 WI Channel (69) AM Sensitivity SIN 20dB at
reenter: 260 WI Channel (49) 999kHz= 560pV/m
lSurround: 70 WI Channel (40) [Phone Jack:
At 100Hz and total harmonic of 10% Terminal: Stereo 3.5 mm jack
[Active subwoofers: 260 WI Channel (49) [Disc section
DIN Output Power: Dolby Digital Mode: Discs played [8 cm or 12 cm]:
[Total DlN Dolby Digital mode Power: (1) DVD-RAM (DVD»VR compatible, JPEG formatted discs)
750 W (2) DVD-Audio
At 1H: and total harmonic of 1% (3) DVD-Video
[Front: 140 WI Channel (69) (4) DVD-R, DVD-RW (DVD-Video compatible)
[Center: 180 WI Channel (49) +R, +RW (Video compatible)
© 2005 Panasonic AVC Networks Singapore Pte.
I
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
Page 2
SA-HTSSSEE
lMaximum number of recognizable audio and picture contents
CD-R/CD-RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG
4000 audio and picture contents and 400 groups
lPicture resolution: between 320 x 240 and 6144 x 4096
lMaximum number of recognizable audio and picture contents
4000 audio and picture contents and 400 groups
lMPEG4 data recorded with the multi cameras or DVD video
recorders Conforming to SD VIDEO specifications (ASF
Standard)/ MPEG4 (Simple Profile) video system/G726
lMaximum number of recognizable audio and picture contents
4000 audio and picture contents and 400 groups
(5) CD-Audio (CD-DA)
(6) Video CD
(7) SVCD (Conforming to IE062107)
(8)
formatted discs)
(9) MPSNVMA
lCompatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
and groups:
(10) JPEG
lExif Ver 2.1 JPEG Baseline files
pixels (sub sampling is 4:2:2 or 4:2:0)
and groups:
(11) MPEG4
audio system.
and groups:
(12) DivX
lDIvX 3.11,4.x, 5.x
GMC (Global Motion Compensation) not supported.
lMaximum number of recognizable audio and picture contents
and groups:
4000 audio and picture contents and 400 groups
(13) HighMAT Level 2 (Audio and Image)
Pick up:
Wavelength:
lCD:
lDVD:
Laser power:
Audio output (DISC):
Number of channels:
785nm
662nm
CLASS 2/ CLASS 3A
5.1 ch (FL, FR, 0, SL, SR,
SW)
Audio performance( Measurement at Rec Out terminal):
Frequency response:
DVD (linear audio):
DVD-Audio:
CD-Audio:
SIN ratio:
CD-Audio:
Dynamic range:
DVD (linear audio):
4 Hz-22 kHz
(48 kHz sampling)
4 HZ-44 kHz
(96 kHz sampling)
4 Hz-88 kHz
(192 kHz sampling)
4 HZ-20 kHz
95 dB
95 dB
CD-Audio:
Total harmonic distortion:
CD-Audio:
[Video section
Video system:
Signal system:
Composite video output:
Output level:
Terminal:
S-video output:
Y output level:
C output level:
Terminal
Component video output :
NTSC: 525(480)PI525(480)I:
PAL: 625(576)PI625(576)I:
Y output level:
PI3 output level:
PR output level:
Terminal:
RGB video output :
R output level:
G output level:
B output level:
Terminal:
93 dB
0.005 /0
PAL 625/50, PAL 525/60,
NTSC
1 Vp-p (75 0)
Pin jack (1 system)
Scart jack (1 system)
1 Vp-p (75 0)
NTSC; 0.286 Vp-p (75 9)
PAL; 0.3 Vp-p (75 o)
S terminal (1 system)
Scart jack (1 system)
1 Vp-p (75 9)
0.7 Vp-p (75 9)
0.7 Vp»p (75 9)
Pin jack (Y: green, PB: blue,
PR: red) (1 system)
0.7 Vp»p (75 9)
0.7 Vp»p (75 9)
0.7 Vp-p (75 Q)
Scart jack (1 system)
Power consumption in standby mode:
Note:
approx 0.7W
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
system SC-HT935
Main unit SA-HT935
Front speakers SBPFSQ3OP
Center speaker SB-PC93OP
Surround speakers SB-FSB8OEB
Active subwoofer SBVWAQBSEE
