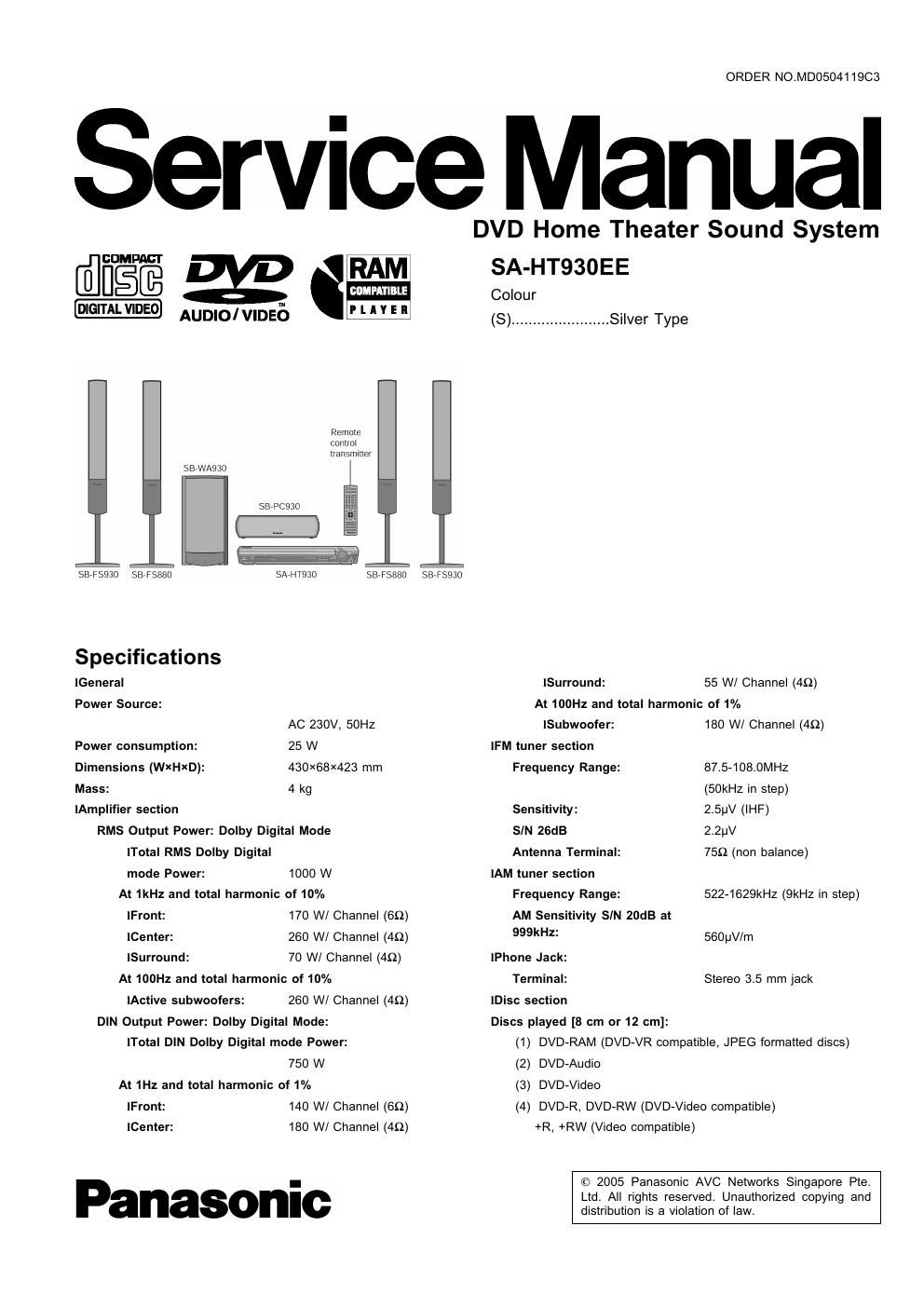

Page 1
ORDER NO.MD0504119C3
Service Manual
DVD Home Theater Sound System
mm 77 SA-HT930EE
[filflg@ E Colour
m AUDIO/VIDEO ' L E " (3) .Silver Type
Remote
control
transmitter
SBVWAQSO
SBVPCBBO
SB r5930 557F588!) SAero SR F8880 sarrseao
Specifications
[General lSurround: 55 WI Channel (49)
Power Source: At 100Hz and total harmonic of 1%
AC 230V, 50Hz [Subwoofen 180 WI Channel (49)
Power consumption: 25 W [FM tuner section
Dimensions (WXHXD): 430><68><423 mm Frequency Range: 87.5-108.0MHZ
Mass: 4 kg (50kHz in step)
[Amplifier section Sensitivity: 2.5pV (IHF)
RMS Output Power: Dolby Digital Mode SIN 26dB 2.2uV
[Total RMS Dolby Digital Antenna Terminal: 759 (non balance)
mode Power: 1000 W [AM tuner section
At 1kHz and total harmonic of 10% Frequency Range: 522-1629kHz (9kHz in step)
[Front: 170 WI Channel (69) AM Sensitivity SIN 20dB at
reenter: 260 WI Channel (49) 999kHz= 560pV/m
lSurround: 70 WI Channel (40) [Phone Jack:
At 100Hz and total harmonic of 10% Terminal: Stereo 3.5 mm jack
[Active subwoofers: 260 WI Channel (49) [Disc section
DIN Output Power: Dolby Digital Mode: Discs played [8 cm or 12 cm]:
[Total DlN Dolby Digital mode Power: (1) DVD-RAM (DVD»VR compatible, JPEG formatted discs)
750 W (2) DVD-Audio
At 1H: and total harmonic of 1% (3) DVD-Video
[Front: 140 WI Channel (69) (4) DVD-R, DVD-RW (DVD-Video compatible)
[Center: 180 WI Channel (49) +R, +RW (Video compatible)
© 2005 Panasonic AVC Networks Singapore Pte.
I
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
Page 2
SA-HTSSD EE
5
6
7
8
CD-Audio (CD-DA)
(
( Video CD
(
(
formatted discs)
(9) MPSNVMA
lCompatible compression rate:
SVCD (Conforming to IE062107)
CD-R/CD-RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
lMaximum number of recognizable audio and picture contents
and groups:
4000 audio and picture contents and 400 groups
(10) JPEG
lExif Ver 2.1 JPEG Baseline files
lPicture resolution: between 320 x 240 and 6144 x 4096
pixels (sub sampling is 4:2:2 or 422:0)
lMaximum number of recognizable audio and picture contents
and groups:
4000 audio and picture contents and 400 groups
(11) HighMAT Level 2 (Audio and Image)
Pick up:
Wavelength:
lCD:
lDVD:
Laser power:
Audio output (DISC):
Number of channels:
Audio performance:
Frequency response:
DVD (linear audio):
DVD-Audio:
CD-Audio:
SIN ratio:
CD-Audio:
Dynamic range:
DVD (linear audio):
CD-Audio:
Total harmonic distortion :
CD-Audio:
lVideo section
Video system:
Signal system:
Composite video output:
Output level:
785nm
662nm
CLASS 2/ CLASS 3a
5.1 ch (FL, FR, c, SL, SR,
SW)
10 Hz-22 kHz
(48 kHz sampling)
10 HZ-44 kHz
(96 kHz sampling)
10 Hz-88 kHz
(192 kHz sampling)
10 HZ-20 kHz
95 dB
95 dB
93 dB
0.005 /0
PAL 625/50, PAL 525/60,
NTSC
1 Vp»p (75 9)
Terminal: Pin jack (1 system)
S-video output:
Y output level: 1 Vp-p (75 0)
NTSC; 0.286 Vp»p (75 9)
PAL; 0.3 Vp-p (75 o)
S terminal (1 system)
C output level:
Terminal
Component video output :
NTSC: 525(480P)I525(480|):
PAL: 625(576P)!625(576l):
Y output level: 1 Vp-p (75 9)
0.7 Vp»p (75 :2)
0.7 Vp»p (75 9)
Pin jack (Y: green, PE: blue,
PR: red) (1 system)
PE output level:
PR output level:
Terminal:
Power consumption in standby mode:
approx 0.7W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
system SC-HT930EE
Main unit SA-HT930EE
Speaker system SBVHTSBOEB
Active subwooler SBVWA930
Speaker system SB-HT880EB
Front speakers SB-FS930P
Center speaker SBVPCQSOP
Surround speakers SBVFSBBOEB
MPEG Layer-3 audio decoding technology licensed from Fraunnoter
IIS and Thomson multimedia.
Windows Media, and the Windows logo are
trademarks, or registered trademarks of .
Microsoft Corporation in the United States and/ .
or other countries. . N
WMA is a compression iormat developed by palm,
Microsott Corporation. It achieves the same wmm
sound quality as MP3 with a tile size that is Medla'
smaller than that of MP3.
HighMAT and the HighMAT logo are either
trademarks or registered trademarks of
Microsoft Corporation in the United States and/
or other countries.
I Built-in decoders u | c | r A i
You can play discs with these symbols. DU
n I c I 1' A L
SURROUND
