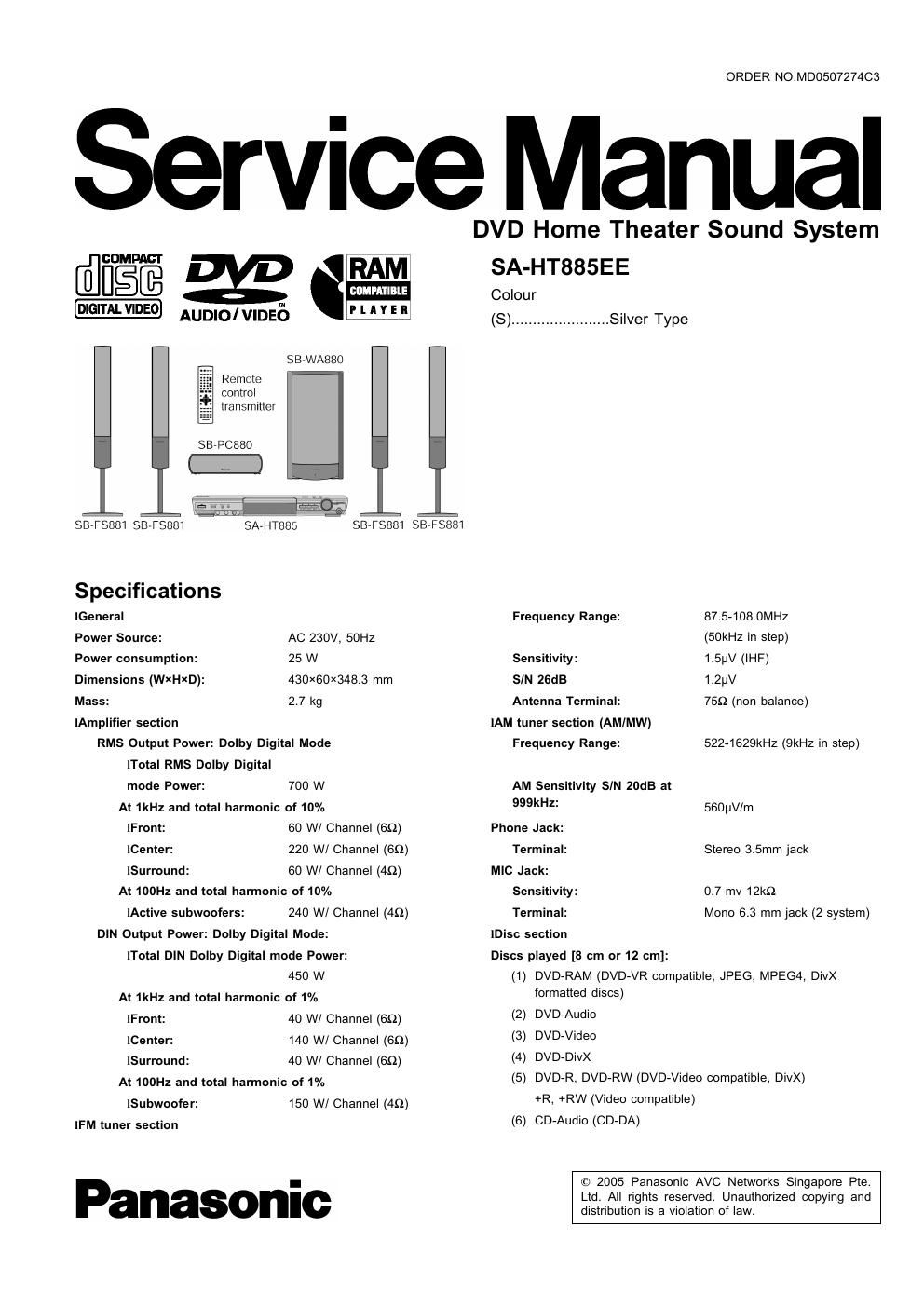

Page 2

SA-HTaBSEE

Video CD
SVCD (Conforming to IE062107)

CD-R/CD-RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG
, MPEG4, DivX, HighMAT Level 2 formatted discs)

(10) MP3/WMA

lMaximum number of recognizable audio and picture contents
and groups:

§§3

4000 audio and picture
contents and 400 groups

lCompatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
(11) JPEG
lMaximum number of recognizable audio and picture contents
and groups:
4000 audio and picture
contents and 400 groups
lExif Ver 2.1 JPEG Baseline files
lPicture resolution: between 320 x 240 and 6144 x 4096
pixels (sub sampling is 4:2:2 or 4:2:0)
(12) MPEG4
lData recorded with Panasonic SC multi cameras or DVD
video recorders

Conforming to SD VIDEO specifications (ASF
standard)/MPEG4 (Simple Profile) video system/G726 audio

system
lMaximum number of recognizable audio and picture contents
and groups:
4000 audio and picture
contents and 400 groups
(13) DivX

lDivX 3.11, 4.x, 5.x
GMC (Global Motion Compensation) is not supported.

lMaximum number of recognizable audio and picture contents
and groups:

4000 audio and picture
contents and 400 groups

(14) HighMAT Level 2 (Audio and Image)

Pick up:
Source of light beam: Semiconductor Laser
Wavelength:
lCD: 785nm
lDVD: 662nm

Laser power: CLASS 2/ CLASS 3A

Audio output (DISC):
Number of channels: 5.1 ch (FL, FR, C, SL, SR,

SW)

Audio performance (measured at REC OUT terminal):
Frequency response:

DVD (linear audio): 10 Hz-22 kHz (48 kHz

sampling)

10 H2-44 kHz (96 kHz
sampling)

10 Hz-88 kHz (192 kHz
sampling)

10 H2-20 kHz

DVD-Audio:

CD-Audio:
SIN ratio:

CD-Audio: 95 dB
Dynamic range:

DVD (linear audio): 95 dB

CD-Audio: 93 dB
Total harmonic distortion:

CD-Audio: 0.005 %

lVideo section
Video system:

Signal system: PAL 625/50, PAL 525/60,

NTSC
Composite video output:
Output level: 1 Vp-p (75 Q)
Terminal: Pin jack (1 system)

Scan jack (1 system)
S-video output:
Y output level: 1 Vp-p (75 Q)
PAL; 0.3Vp»p (75 Q)
NTSC; 0.286 Vp»p (75 Q)

S terminal (1 system)

C output level:

Terminal
Scart jack (1 system)

Component video output (480PI480l):
1 Vp-p (75 0)
0.7 Vp»p (75 :2)
0.7 Vp»p (75 :2)
Pin jack (Y: green, PE: blue,
PR: red) (1 system)

Y output level:
PB output level:
PR output level:
Terminal:

RGB video output:

R output level: 0.7 Vp»p (75 9)
0.7 Vp-p (75 :2)
0.7 Vp-p (75 Q)

Scart jack (1 system)

G output level:
B output level:

Power consumption in standby mode:
approx 0.7W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:

This model uses lead free solder (PbF).

System SC-HT885EE
Main unit SA-HT885EE
Speaker system SB-HTSSOGC
Active subwoofer SBAWASBSEE
Speaker system SB-HTSBOGC
Front speakers SB-F8881GC
Center speaker SB-PCBSOGC
Surround speakers SB-F8881GC
