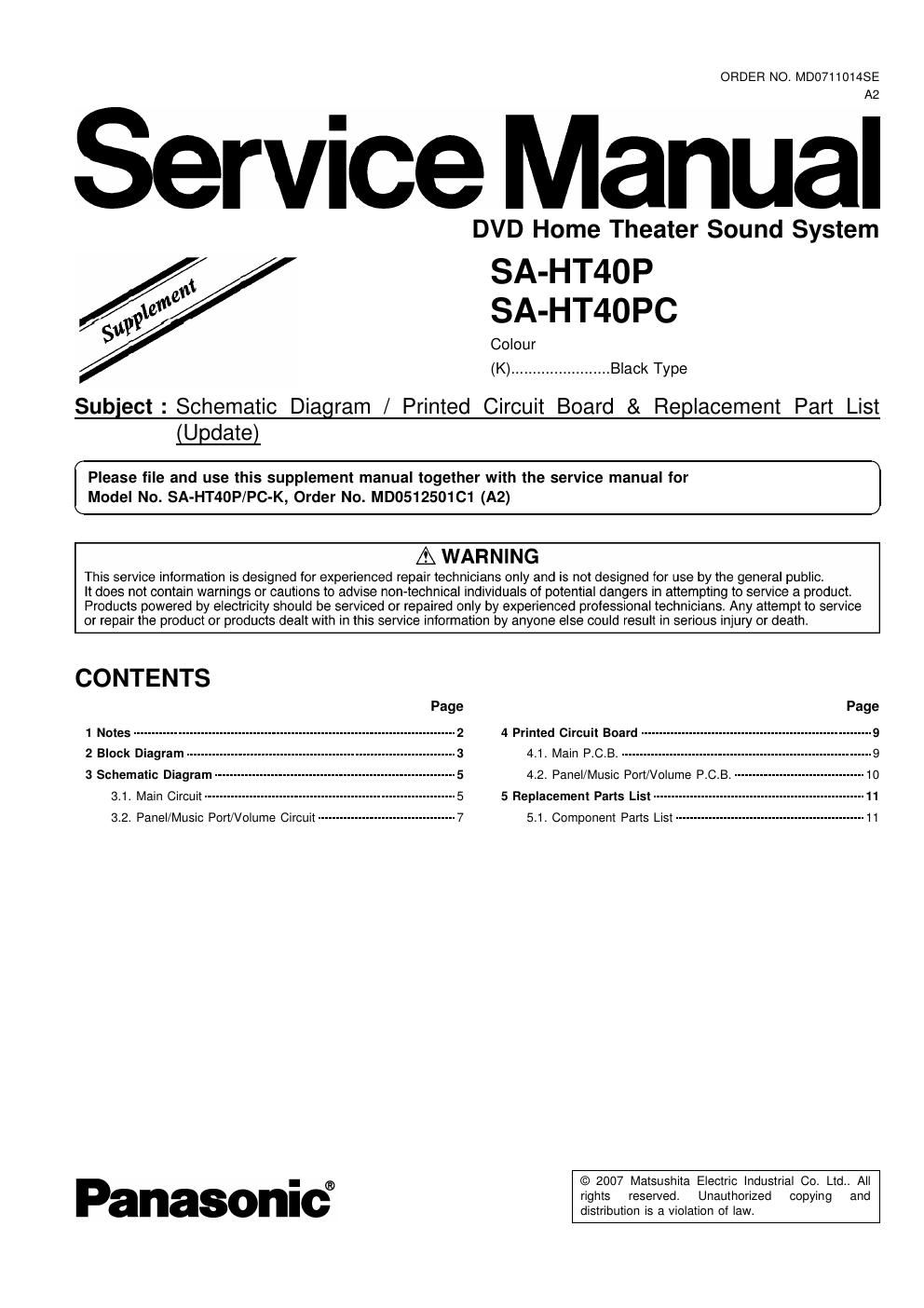

Page 1
ORDER NO. MD0711014SE
Service Manual
DVD Home Theater Sound System
SA-HT40P
t
M SA-HT40PC
Colour
(K) ....................... Black Type
Subject: Schematic Diagram / Printed Circuit Board & Replacement Part List
(Update)
Please file and use this supplement manual together with the service manual for
Model No. SA-HT40P/PC-K, Order No. M00512501C1 (A2)
A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
CONTENTS
1 Notes ------------- 4 Printed Circuit Board-
2 Block Diagram-- 4.1. Main P.C.B.
3 Schematic Diagram ---------------------------------------------------------------- 5 4.2. Panel/Music Port/Volume P.C.B. ----------------------------------- 10
3.1. Main Circuit ----------------------------
3.2. Panel/Music Port/Volume Circuit-
-11
5 Replacement Parts List---
5.1. Component Parts List --
© 2007 Matsushita Electric Industrial Co. Ltd.. All
- ®
P n I rights reserved. Unauthorized copying and
distribution is a violation of law.
Page 2
SA-HT40P / SA-HTAOFC
1 Notes
This supplement includes additional and revised contents to the original service manual for below sections:-
1.Update to Schemation Diagram
2. Update to Printed Circuit Board
3. Update to Replacement Parts List
