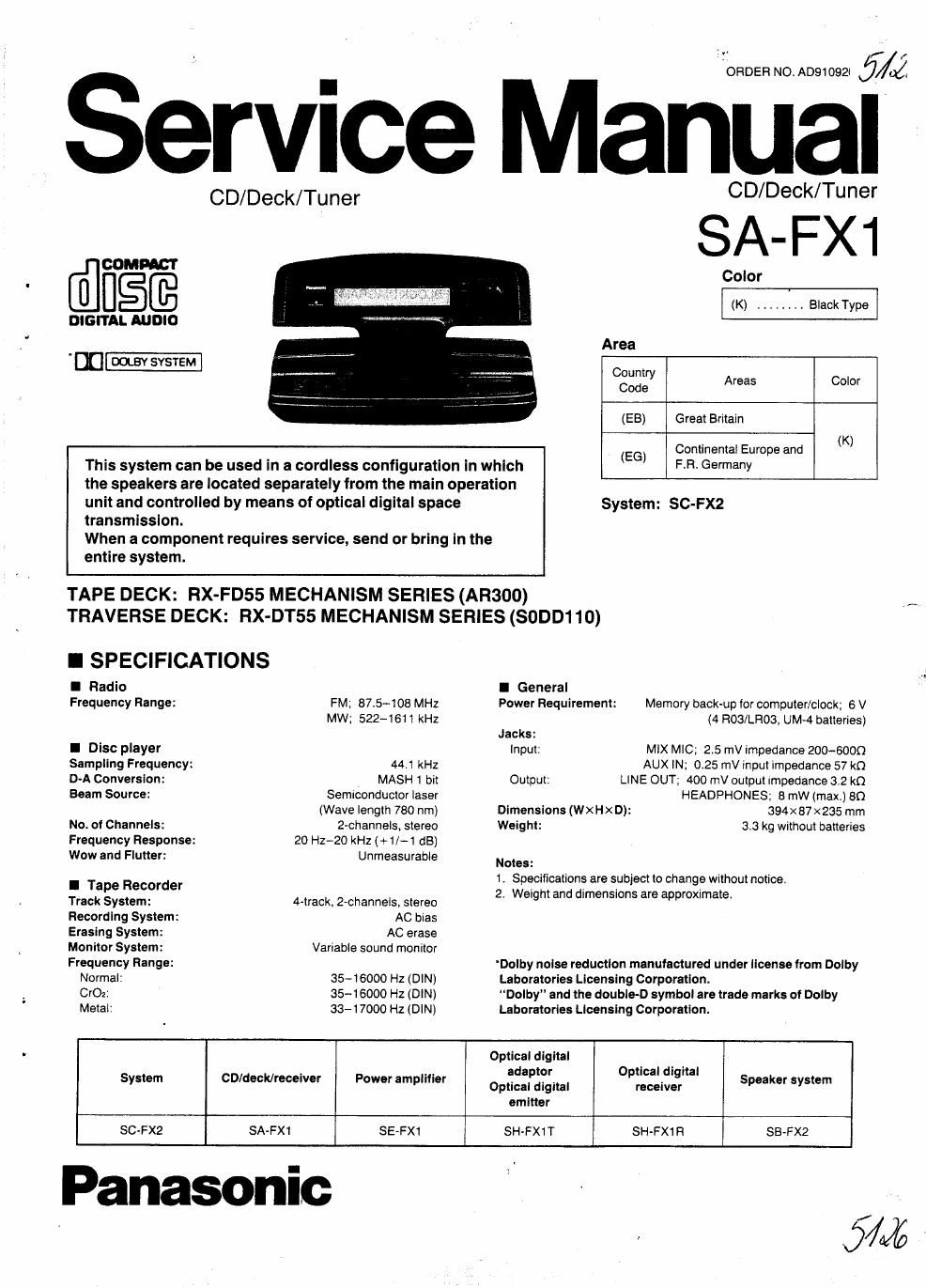

Page 1

Service Ma

CD/Deck/Tuner

u

.4

COMPACT

rinse

DIGITAL AUDIO

m-

. 5 z
ORDER NO: AD91092l WM

nual

CD/Deck/Tuner
Color
(K) ........ Black Type
Area
0:33;! Areas Color

(EB) Great Britain

transmission.

entire system.

This system can be used in a cordless configuration in which
the speakers are located separately from the main operation
unit and controlled by means of optical digital space

When a component requires service, send or bring in the

Continental Europe and

(EG) FR, Germany

System: SC-FX2

TAPE DECK: FIX-FD55 MECHANISM SERIES (AR300)
TRAVERSE DECK: RX-DT55 MECHANISM SERIES (SODD110)

I SPECIFICATIONS

I Radio
Frequency Range:

I Disc player
Sampling Frequency:
D-A Conversion:
Beam Source:

No. 0! Channels:
Frequency Response:
Wow and Flutter:

I Tape Recorder
Track System:
Recording System:
Erasing System:
Monitor System:

FM; 87.5-108 MHZ
MW; 522-1611kH2

44.1 kHz

MASH 1 bit
Semiconductor laser
(Wave length 780 nml
2-channels, stereo

20 Hz~20 kHz (HI-1 dB)
Unmeasurable

4-track. 2-channeis, stereo
AC bias

AC erase

Variable sound monitor

I General
Power Requirement: Memory back~up for computer/clock; 6 V

(4 ROS/LRO3, UM-4 batteries)

Jacks:
Input: MIX MIC; 2.5 mV impedance 200-6000
AUX W: 0.25 mV input impedance 57 k0
Output: LINE OUT; 400 mV output impedance 32 kt)
HEADPHONES; 8 mW (max) 80
Dimensions (WXHXD): 394x87x235 mm
Weight: 3.3 kg without batteries

Notes:
1. Specifications are subject to change without notice.
2, Weight and dimensions are approximate.

Frequency Range: 'Dolby noise reduction manufactured under license from Dolby
Normal: 35~ I 6000 Hz (DIN) Laboratories Licensing Corporation.
00:: 35-16000 Hz (DIN) Dolby" and the double-D symbol are trade marks at Dolby
Metal: 33-17000 Hz (DIN) Laboratories Licensing Corporation.
Optical digital
adaptor Optical digital
System CD/deck/receiver Power amplifier Optical digital receiver Speaker system
emitter
SC~FX2 SA-FX1 SE-FXl SH~FX1T SH-FXlFi SB-FXZ

Panasonic

5%%

Page 2

SA-FX1

I CONTENTS

PRECAUTION OF LASER DIODE . .. ............. 2 PREPARATIONS FOR CHECK AND

SYSTEM LINE-UP ............. .. 3 ADJUSTMENT OF P.C.B. I . . . . . . .

SUPPLIED ACCESSORIES . 4 HOW TO CHECK THE P.C.B.

INSTALLATION 5 DIGITAL SERVO SYSTEM ........

CONNECTIONS ........................................ 6-8 CHECKING THE OPERATION PROBLEMS ON THE

LOCATION OF CONTROLS AND FUNCTIONS 9-15 TRAVERSE DECK (OPTICAL PICKUP) ............... 62, 63
SETTING THE TIME ............... . . 16 MEASUREMENTS AND ADJUSTMENT .

TROUBLESHOOTING ............. . 17-19 FUNCTION OF IC TERMINALS .......................... 70-74
HANDLING PRECAUTIONS FOR TRAV TROUBLESHOOTING GUIDE . I I I ................. 75-78
DISASSEMBLY INSTRUCTIONS ..... BLOCK DIAGRAM .......... . I .79-85
SCHEMATIC DIAGRAM ,,,,,,,,,,,,, REPLACEMENT PARTS LIST . . I . ........ I 86402
LCD ............................. MECHANISM PARTS LOCATION. . ........ . . . 94-98
CIRCUIT BOARD DIAGRAM ..... CABINET PARTS LOCATION . 99, 100
WIRING CONNECTION DIAGRAM .. . PACKAGING ....................

USE OF EXTENSION CABLE FOR CHECK AND
ADJUSTMENT P.C.B ................................... 57

CAUTION:

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

I PRECAUTION OF LASER DIODE

CAUTION: This product utilizes a laser diode with the unit turned "on", invisible laser radiation is emitted from the pick up lens.

Wavelength: 780 nm
Maximum output radiation power from pick up: 100 uWNDE

Laser radiation from the pick up lens is safety level, but be sure the followings:

1. Do not disassemble the optical pick up unit. since radiation from exposed laserd diode is dangerous.
2. Do not adjust the variable resistor on the pickup unit. It was already adjusted.

3. Do not look at the focus lens using optical instruments.

4. Recommend not to look at pick up lens for a long time.

ACHTUNG: Dieses produkt enthali sine IaserdiodeI lm eingeschalteten zustand wird unsichtbare laserstrahlung von der lasereinheit abgestrahlt.

Wellenlinge: 780nm
Maximale strehlungslelstung der lasereinheit: 100 uWNDE

Die strahlung an der lasereinheit ist ungelahrlioht wenn folgende punkte beaohtet werden:

tI Die lasereinheit nicht zerlegen, da die strahlung an der freigelegten laserdiode geféhrlich ist.
2. Dan werksseitig justierten einstellregler der Iasereinreit nicht verstellen.

3. Nicht mit optischen insirumenten in die fokussierlinse blicken.

4. Nioht fiber lingere zeit in die tokussierlinse blicken.

lvflRSlCHT-Unsichtbare DANGER-invisible laser
Laserstralilu . wenn radiation when nyan

CLASS 1 Abdeckunu geiillnztimd and interlock deleated. _
Sicheiheitsveirlegelung AVDID DIRECT EX- VABIJ! AVWSQSR Ia
LASER PRODUCT iilmrltrlickt. Nicm dam PDSURE T0 BEAM. Sunjalukilus qhitattae-
Strahl aussetzen. ssa nlgt alttiina
(Untorseiie do: Germs) (Bottom oi me product) fiszyrriagfiwflk

Alzi katsu s'a'teeseen,

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT ADVARSEL:USYNLIG MSERSTRALING $3,323 (312!9
magma" av 3,1.qu van ABNINE, MAR suxxatuznsne mm, as. 5, Hanna-1
(Onoersiden alSA-FXU BRYDERE ER UDE AF FUNKTION. och spam" 5'
(Bottom of the sth) UNDER UDSEI'TELSE FOR STERLING. mkopplarl

Betrakla aj strélen.

(Pésat under apparstetl
