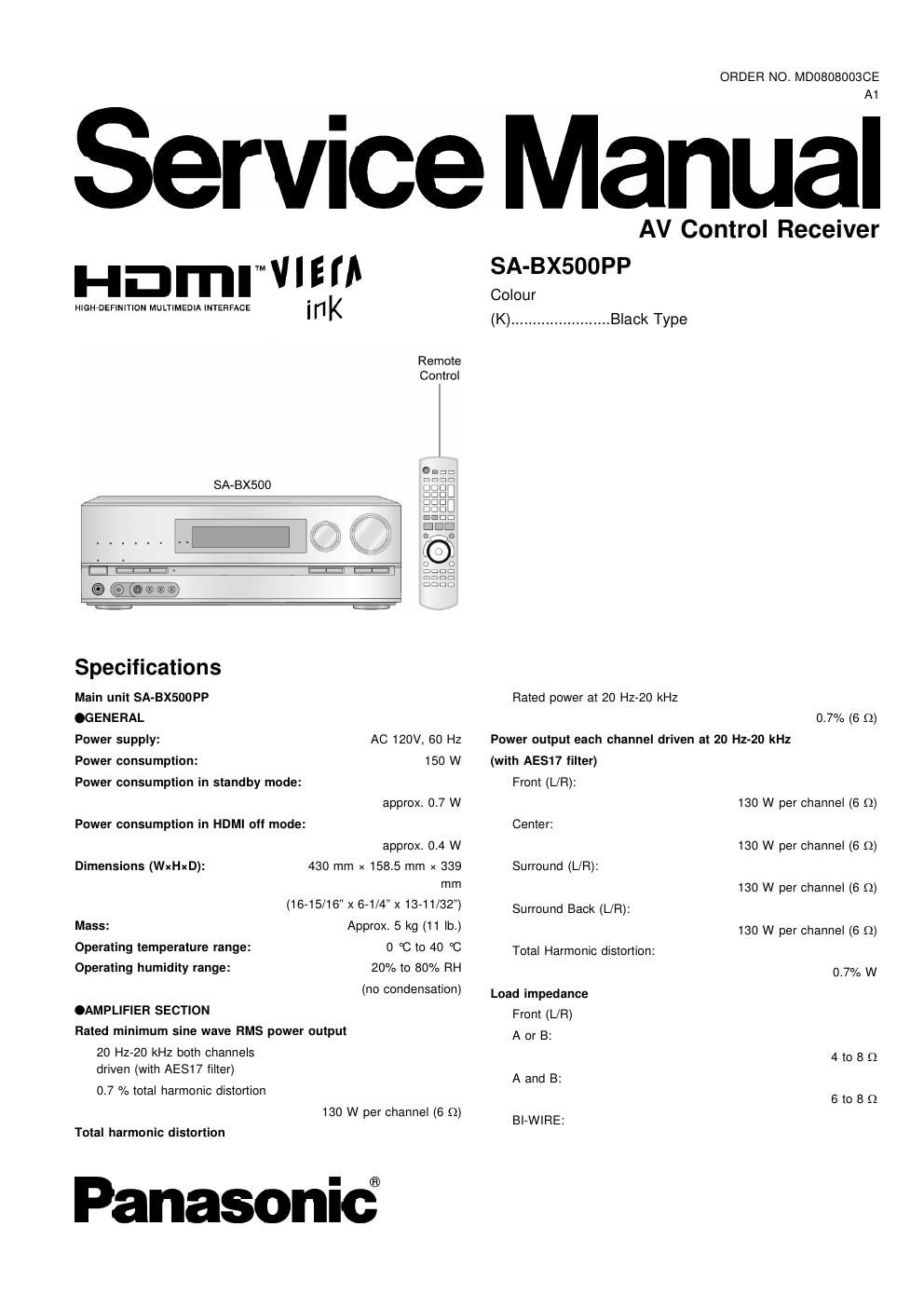

Service
HDerIEfl
HlGH-DEFINITION MULTIMEDIA INTERFACE i '1 K
Remote
Control
SA-BX5OO
.®®@@@
Specifications
Main unit SA-BXSOOPP
.GENERAL
Power supply: AC 120V, 60 Hz
Power consumption: 150 W
Power consumption in standby mode:
approx. 0.7 W
Power consumption in HDMI oft mode:
approx. 0.4 W
Dimensions (WxHxD): 430 mm x 158.5 mm x 339
mm
(16-15/16" x 6-1/4"x13-11/32")
Approx. 5 kg (11 lb.)
0 °C to 40 DC
20% to 80% RH
(no condensation)
Mass:
Operating temperature range:
Operating humidity range:
.AMPLIFIER SECTION
Rated minimum sine wave HMS power output
20 Hz-ZO kHz both channels
driven (with AES17 filter)
0.7 /a total harmonic distortion
130 W per channel (6 Q)
Total harmonic distortion
Panasonic?
ORDER NO. MDOSOBOOSCE
Manual
AV Control Receiver
SA-BX500PP
Colour
(K) ....................... Black Type
Rated power at 20 Hz-ZO kHz
0.7% (s 9)
Power output each channel driven at 20 Hz-ZU kHz
(with AES17 filter)
Front (L/R):
130 W per channel (6 0)
Center:
130 W per channel (6 Q)
Surround (L/R):
130 W per channel (6 Q)
Surround Back (L/R):
130 W per channel (6 Q)
Total Harmonic distortion:
0.7% W
Load impedance
Front (L/R)
A or B:
4 to 8 Q
A and B:
6 to 8 Q
BI-WIRE:
