Panasonic sa ak640p mechanism

This is the 4 pages manual for panasonic sa ak640p mechanism.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 4
left right
panasonic sa ak640p mechanism

Extracted text from panasonic sa ak640p mechanism (Ocr-read)

Page 1

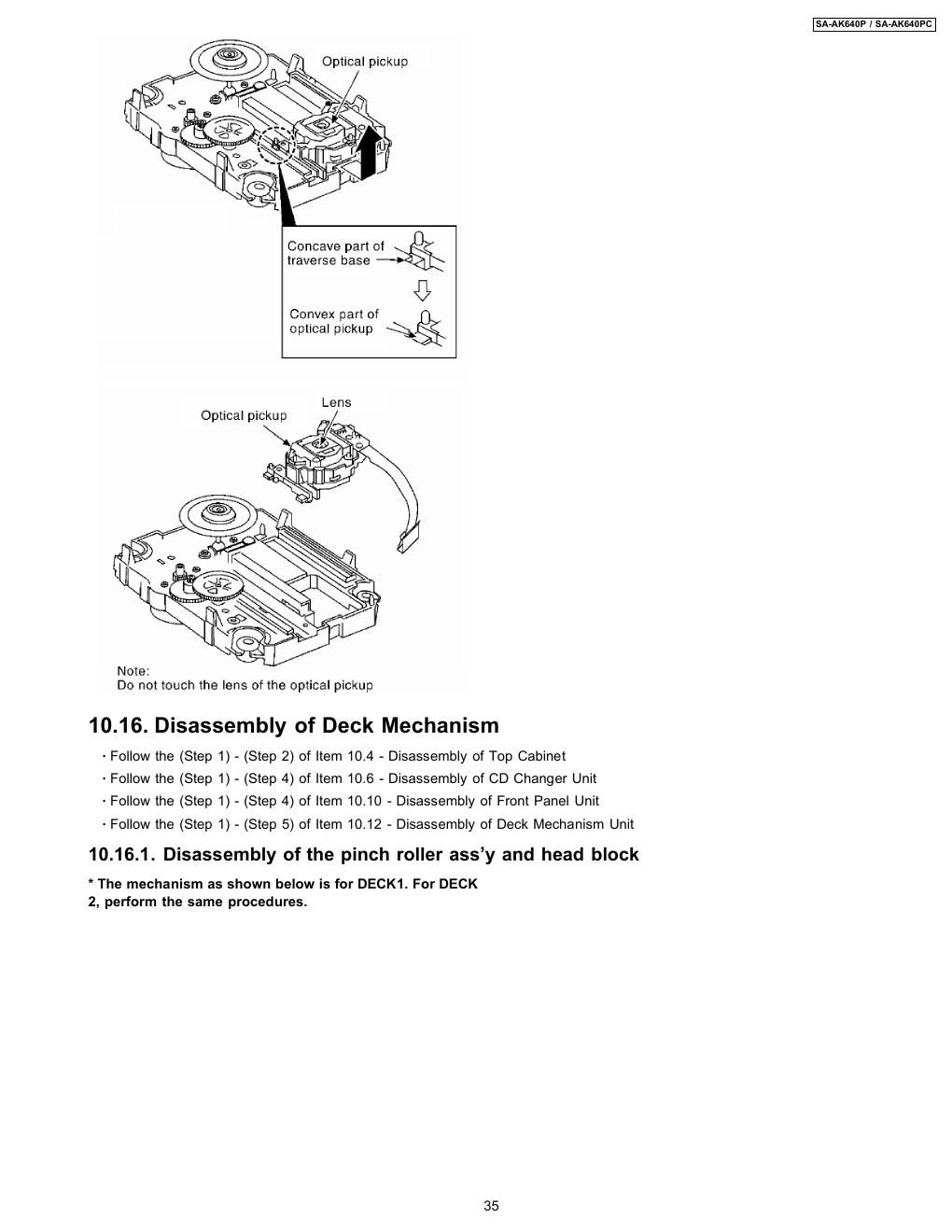

Step 1: Press and hold the plunger lever and rotate the gear as arrows shown until it stop. Step 2: Push the traverse slide plate as arrow shown to release the traverse unit. Caution: Do not exert strong force on the traverse slide plate. Step 3: Remove the traverse unit as arrow shown. · Assembly of Traverse Unit Step 1: Turn over the unit and install the traverse unit. 32 SA-AK640P / SA-AK640PC
