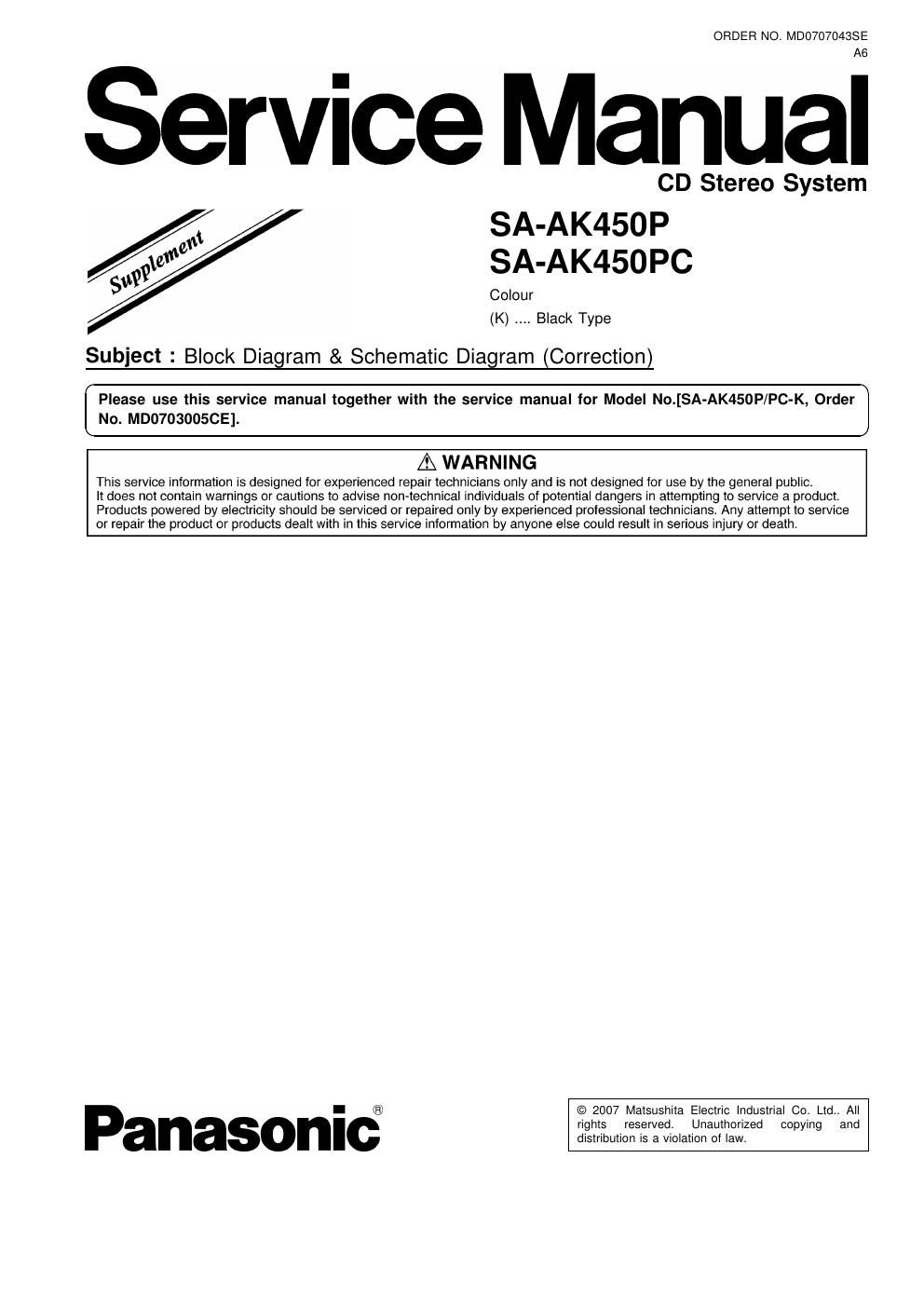

Page 1
ORDER NO. MDO70704SSE
Service Manual
CD Stereo System
SA-AK450P
SA-AK450PC
Colour
(K) Black Type
Subject : Block Diagram & Schematic Diagram (Correction)
Please use this service manual together with the service manual for Model No.[SA-AK450P/PC-K, Order
No. MD07030050E].
A WARNING
This service intormation is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced protessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
I ® © 2007 Matsushita Electric Industrial Co. Ltd.. All
rights resen/ed. Unauthorized copying and
distribution is a violation of law.
