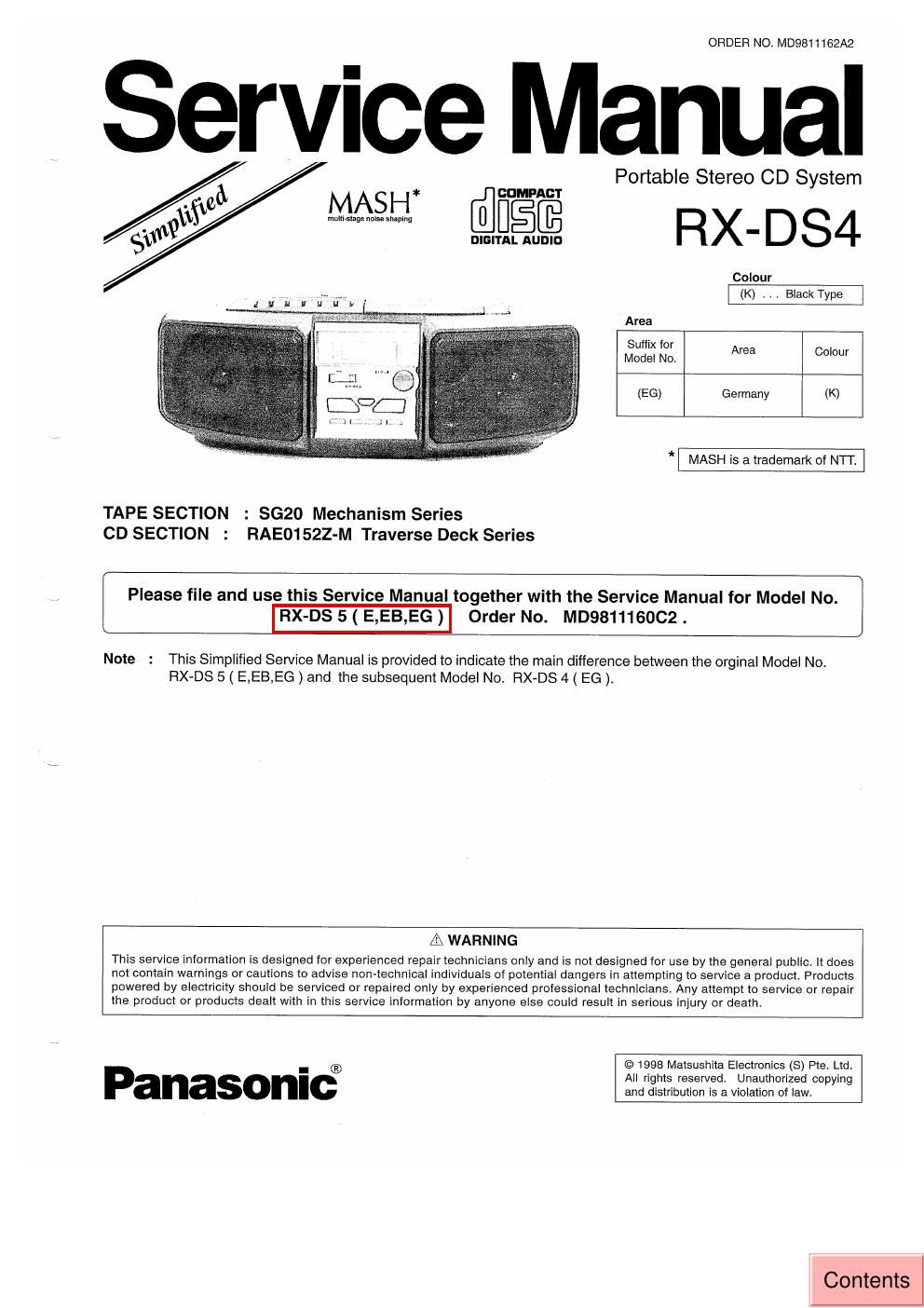

ORDER NO. MD9811162A2

& Service Manual

Portable Stereo CD System
* COMPACT
MASH [i]

wise RX-DS4

Colour
(K) . . . Black Type

Area

Suffix for

Model No. Area C°'°'
(EG) Germany (K)

* MASH is a trademark of MT.

TAPE SECTION : SGZO Mechanism Series
CD SECTION : RAE01522-M Traverse Deck Series

Please file and use this Service Manual together with the Service Manual for Model No.
RX-DS 5 ( E,EB,EG) Order No. MD9811160C2 .

Note : This Simplified Service Manual is provided to indicate the main difference between the orginal Model No.
RX-DS 5 ( E,EB,EG ) and the subsequent Model No. RX-DS 4 ( EG ).

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1998 Matsushita Electronics (8) Pte Ltd.

I ® All rights reserved. Unauthorized copying
anasonlc and distribution is a violation of law.
