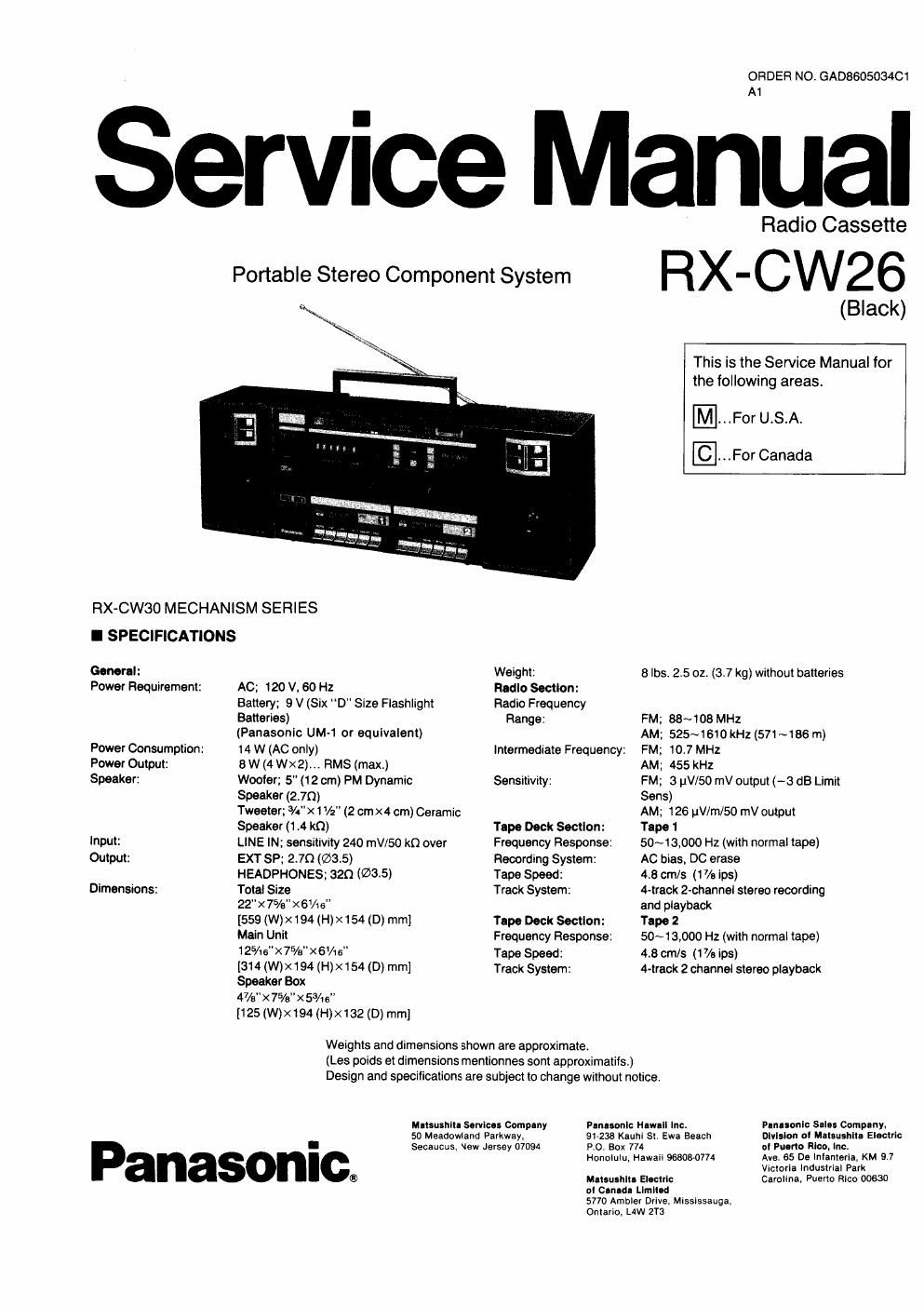

Page 1

ORDER NO. GAD8605034C1
A1

Service Manual

Portable Stereo Component System

RX-CWGO MECHANISM SERIES
I SPECIFICATIONS

General: Weight:
Power Requirement: AC; 120 V, 60 Hz Radio Sectlon:
Battery; 9 V (Six D Size Flashlight Radio Frequency
Batteries) Range:
(Panasonic UM-1 or equivalent)
Power Consumption: 14 W (AC only) Intermediate Frequency:
Power Output: 8 W (4 WXZ). .. FlMs (max)
Speaker: Woofer: 5 (12 cm) PM Dynamic Sensitivity:
Speaker (2,70)
Tweeter; 3/4"><1/2" (2 cm x 4 cm) Ceramic
Speaker (1.4 kn) Tape Deck Section:
Input: LINE IN; sensitivity 240 mV/SO k0 over Frequencv Response:
Output: EXT SP: 2.7!] ((253.5) Recording System:
HEADPHONES: 320 ($3.5) Tape Speed:
Dimensions: Total Size Track System:
22"x75/s X6/is"
[559 (W)x194(H)><154 (D) mm) Tape Dock Section:
Main Unit Frequency Response:
125/15"X75/a"><6/16" Tape Speed:
[314 (WIX194 (H)><154 (D) mm] Track System:
Speaker Box

47/3" X 7%" X 53/ts
[125 (W)><194(H)><132 (D) mm]

Weights and dimensions shown are approximate.
(Les poids et dimensions mentionnes sont approximatits.)

Radio Cassette

RX-CW(26

Black)

This is the Service Manual for
the following areas.

[MIN .For U.S.A.

.For Canada

8 lbs. 2.502, (3.7 kg) without batteries

FM; 86~108 MHz

AM; 525~1610 kHz (57l~186 m)
FM; 10.7 MHz

AM; 455 kHz

FM; 3 iiwso mV output (-3 dB Limit
Sens)

AM; 126 uV/m/SO mV output
Tape 1

50-4 3.000 Hz (with normal tape)
AC bias, DC erase

4.8 cm/s (17/3 ips)

4-lrack 2~channel stereo recording
and playback

Tape 2

50~13,000 Hz (with normal tape)
4.8 cm/s (17/3 ips)

4-track 2 channel stereo playback

Design and specifications are subject to change without notice.

Mauusnlta Service. Company Panasonic Hawaii Inc. Panasonic Sills Company,
so Meadowland Parkway. 91-233 Kauhi 5t. Ewa Beach Division at Matcuchlta Ellclric
I Secaucus. New Jersey 07094 Po, Box 774 ol Punto Rico. Inc.
Panasonlc Honolulu, Hawaii 96808-0774 Ave. es De Infanterla, KM 9.7
® Mncushlu Electric Carolina, Puerto Rico 00630
at Can-rt- leilId

5770 Ambler Drlve. Mississauga.
Ontario. LAW 2T3

Victoria lndustrlal Park

Page 2

RX-CW26

.SNf

S"

SAFETY PRECAUTIONS (For U.S.A.)

Before servicing, unplug the power cord to prevent an electric shock.

When replacing parts. use only manufacturer's recommended components tor safety.
Check the condition of the power cord. Replace if wear or damage is evident.

After servicing, be sure to restore the lead dress, insulation barriers, insulation papers,
sheilds. etc.

Before returning the serviced equipment to the customer, be sure to make the following
insulation resistance test to prevent the customer from being exposed to a shock hazard.

INSULATION RESISTANCE TEST (For U.S.A.)

1. Unplug the power cord and short the two prongs of the plug with a jumper wire.
2,
3. Measure the resistance value with ohmmeter between the jumpered AC plug and each

Turn on the power switch.

exposed metal cabinet part, such as screwheads, antenna, control shafts, handle
brackets, etc. Equipment with antenna terminals should read between 3M9 and 5.2MQ to
all exposed parts'. (Fig. 1) Equipment without antenna terminals should read
approximately infinity to all exposed parts. (Fig. 2)

t Note: Some exposed parts may be isolated from the chassis by design, These will read

infinity,

It the measurement is outside the specified limits, there is a possibility of a shock hazard.
The equipment should be repaired and rechecked before it is returned to the customer.

Antenna

terminal \l I

Exposed 7,/
male)
part

Ohmmeler
Fig. 1
Reslslance: 3Mu-5 2M9

Exposed
metal
Dart

Ohmmeter

Fig. 2

Resistance = Approx m

LOCATION OF CONTROLS AND COMPONENTS

0 Speakers (Tweeter) [3/4X1 1/2

(2 cmX4 cm) 1.4 k0]
9 Speakers (Woofer) [5" (12 cm) 2.70]
o Headphones Jack (PHONES) 320
0 FM Stereo Indicator (FM STEREO)

9 Graphic Equalizer Controls
(GRAPHIC EQUALIZER)

6 Volume Control (VOLUME)
0 Function Selector (SELECTOR)

@ Editing Mode Selector/Beat Proof Switch
(EDITING/3.?)

9 Band Selector (BAND)
0 Tuning Control (TUNING)

Tape 1 (For Recording and Playback)

BATTERY SERVICE LIFE

0 Cassette Compartment

9 Record Button (0 -)

® Playback Button (b PLAY)

0 Rewlnd Button (<4 REW)

6 Fast Forward Button (bb FF)

0 Stop/Eject Button (II; STOP/EJECT)
0 Pause Button (ll PAUSE)

UM-1 (Desize) Batteries
Approx. 24 hours of recording (ElAJ)

Tape 2 (For Playback)

service life vanes With the method of operation and envrronmental

Approx 2 hours OI playback (EIM) with volume 33! at 3h position ® PIayback Button ( PLAY)
The above battery service life is measured accordlng to the oondttions set
term by EIAJ (Electronlc Industries Association ofJapan). As the battery Q Rewind/Review Button (44 REW/ REV)

conditions. usethese values sustenance. @3 Fast Forward/Cue Button (>> FF/CUE)

0 Stop/Elect Button (II; STOP/EJECT)
@ Pause Button (II PAUSE)
@ Cassette Compartment
