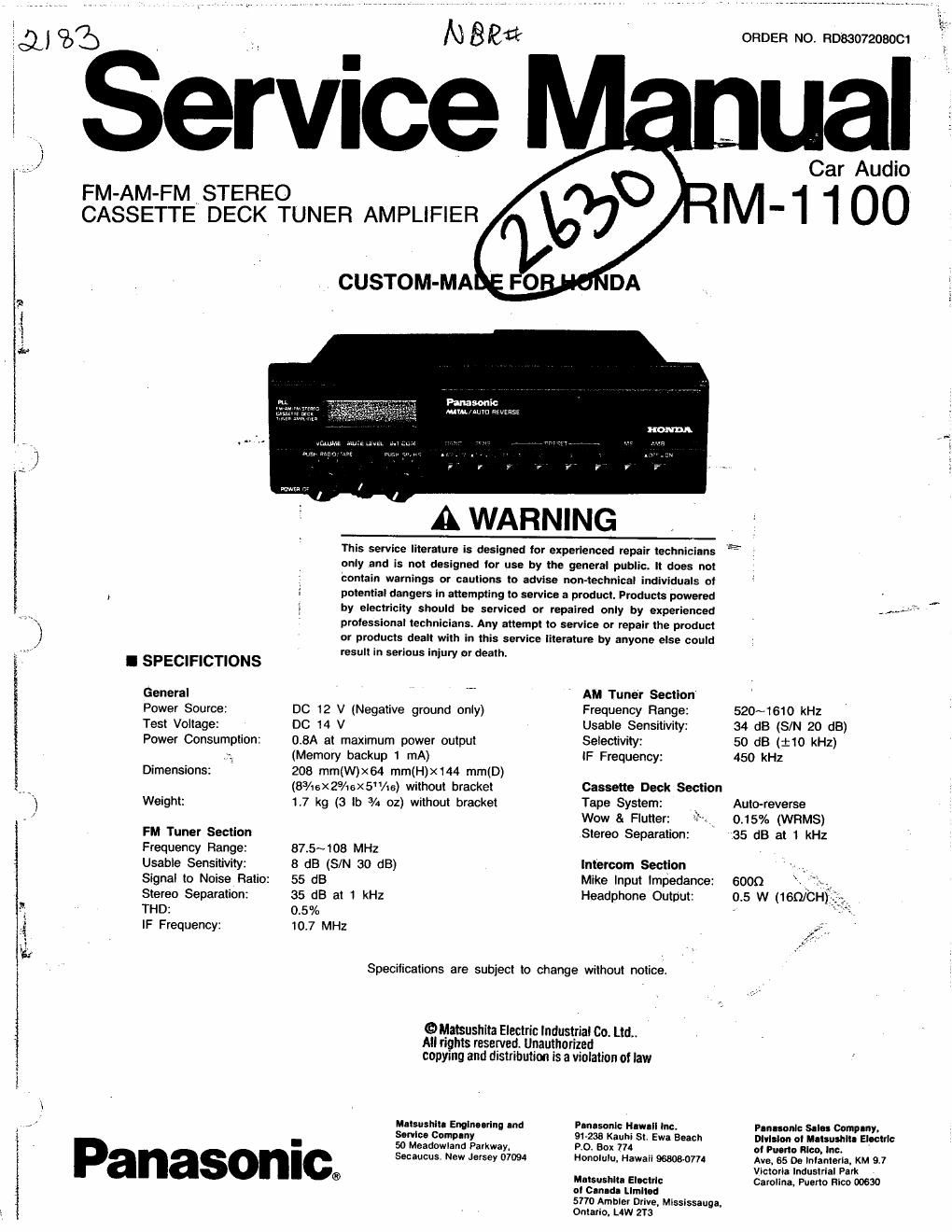

4 $2) V i V _ N 8211' ORDER NO. RDeao7zoBoc1 v
ervice . tual
Car Audio
FM-AM-FM STEREO I
CASSETTE DECK TUNER AMPLIFIER M'1 1 00
,. CUSTOM-MA I
twee. 7e
Panasonic
urn/Aura nsvrnsz
A WARNING
This service literature is designed for experienced repair technicians 1:
only and is not designed tor use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of
' i potential dangers In attempting to service a product. Products powered Q
i by electricity should be serviced or repaired only by experienced 4" V
.7. x protessionai technicians. Any attempt to service or repair the product
) ' or products dealt with in this service literature by anyone else could
-»-- ' r ultin ' i hr
- SPECIFICTIONS es serious nyury or dent
General ' " ' AM Tuner Section
Power Source: DC 12 V (Negative ground only) Frequency Range: 520~1610 kHz
Test Voltage: DC 14 V Usable Sensitivity: 34 dB (S/N 20 dB)
Power Consumption: 0.8A at maximum power output Selectivity: 50 dB (:10 kHz)
(Memory backup 1 mA) IF Frequency: 450 kHz
Dimensions: 208 mm(W)x64 mm(H)x144 mmtD)
(83/15x29/15x5I/16) without bracket Cassette Deck Section
i) Weight: 1.7 kg (3 It) 3/4 oz) without bracket Tape System: Auto-reverse
. I Wow & Flutter: 0.15% (WRMS)
FM Tuner Section Stereo Separation: 35 dB at 1 kHz
Frequency Range: B7.5~108 MHz
Usable Sensitivity: 8 dB (S/N 30 dB) Intercom Section
Signal to Noise Ratio: 55 68 Mike Input Impedance:
Stereo Separation: 35 dB at 1 kHz Headphone Output:
THD: 0.5%
IF Frequency: 10.7 MHz
giftwiaafl 54
Specifications are subject to change without notice
© Matsushlta Electric Industrial Co. Ltii.
AII rights reserved. Unauthorized
copying and distribution is a violation at law
\
Maltushlta Enginurlng Ind Pan-sonic Hawaii Inc. Plnltonlc SIIII Oomplny,
Servic- Compuny 91~235 Kanhi St. Ewa Beach Dinner. at Mntsushlta Electric
50 Meadowianu Parkway, P.0. Box 774 or Puorto also, Inc.
, I
Secaucus. New Jersey 07094 Honolulu, Hawaii 9680841774 Ave, 65 De Inlanterla. KM 9-7
Victoria Industrial Pant .
® MlISuShItl Elictrlc Carolina, Fueno Rico 00630
at can-d1 Limited
5770 Ambler Drive, Mississauga,
Ontario, LAW 273
" I|
LOCATION OF CONTROLS AND COMPONENTS.
?
.
j 51:
3 AM |
FM I
63 FM Stereo Indicator ® Radio/1' ape Switch, Power Switch, Volume Control
® Local Indicator (PUSH RADIO/T APE, POWEFI OFF)
® Headset Indicator ® Mute Level ControI (MUTE LEVEL)
© Memory/Meial Indicator ® Speaker/Headset Switch Intercom Control (PUSH SP/HS)
(5) Direction Indicators 6}) Band Switch (AM, FM)
LCD Dismay @ Sensitivity Switch (0x, LOCAL)
® Eject Button ® Program/Preset Switch (PRO/1) A2"
® Tape Slot ® Preset Switches (2, 3. 4)
® Rewind Button (REW) @ Metal/Memory Switch (ME)
® Fast Forward Button (FF) @Ambience Switch (0N, OFF)
DISASSEMBLY INSTRUCTIONS
Panasonic
«0.; «
(A) Fig. 2
