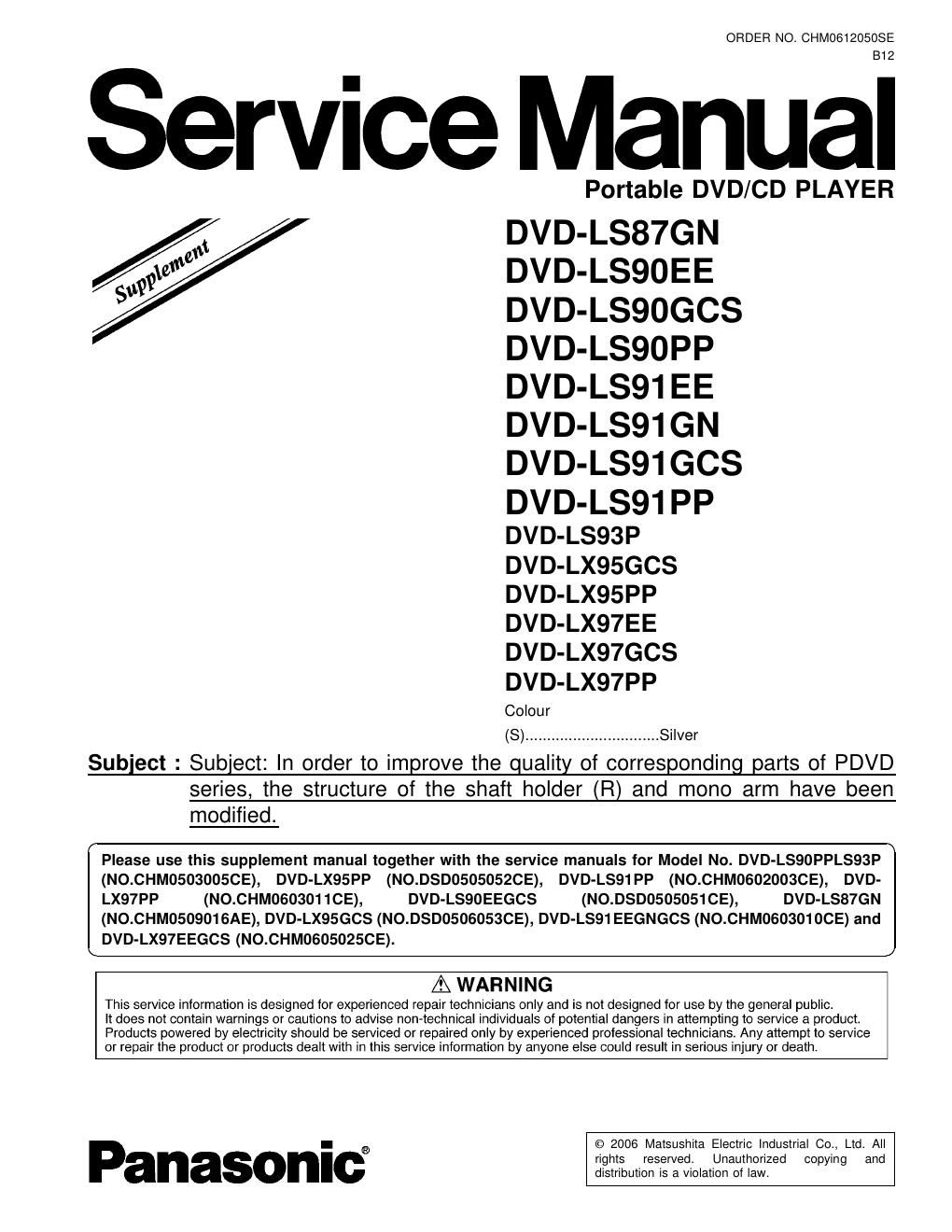

Page 1

ORDER NO. CHM06120508E
B12

Service Manual

Portable DVD/CD PLAYER

a DVD-LSS7GN
SWQW DVD-LSQOEE
DVD-LSQOGCS
DVD-LSQOPP
DVD-L891EE
DVD-L391GN
DVD-L891GCS

DVD-L891 PP
DVD-LSQ3P
DVD-LX95GCS
DVD-LX95PP
DVD-LX97EE
DVD-LX97GCS
DVD-LX97PP

Colour

(S) ............................... Silver

Subject : Subject: In order to improve the quality of corresponding parts of PDVD
series, the structure of the shaft holder (R) and mono arm have been
modified.

Please use this supplement manual together with the service manuals for Model No. DVD-LSQOPPLSQSP
(N0.CHM05030050E), DVD-LX95PP (N0.DSDOSO5052CE), DVD-L891 PP (N0.CHM06020030E), DVD-
LX97PP (N0.CHM0603011CE), DVD-LSQOEEGCS (NO.DSD0505051 CE), DVD-LSB7GN
(N0.CHM0509016AE), DVD-LX95GCS (NO.DSD0506053CE), DVD-LSQ1EEGNGCS (N0.CHM060301OCE) and
DVD-LX97EEGCS (N0.CHM0605025CE).

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 2006 Matsushita Electric Industrial 00., Ltd. All

I
® rights reserved. Unauthorized copying and
distribution is a violation of law.
