Extracted text from panasonic dmr es 40 vp service manual (Ocr-read)

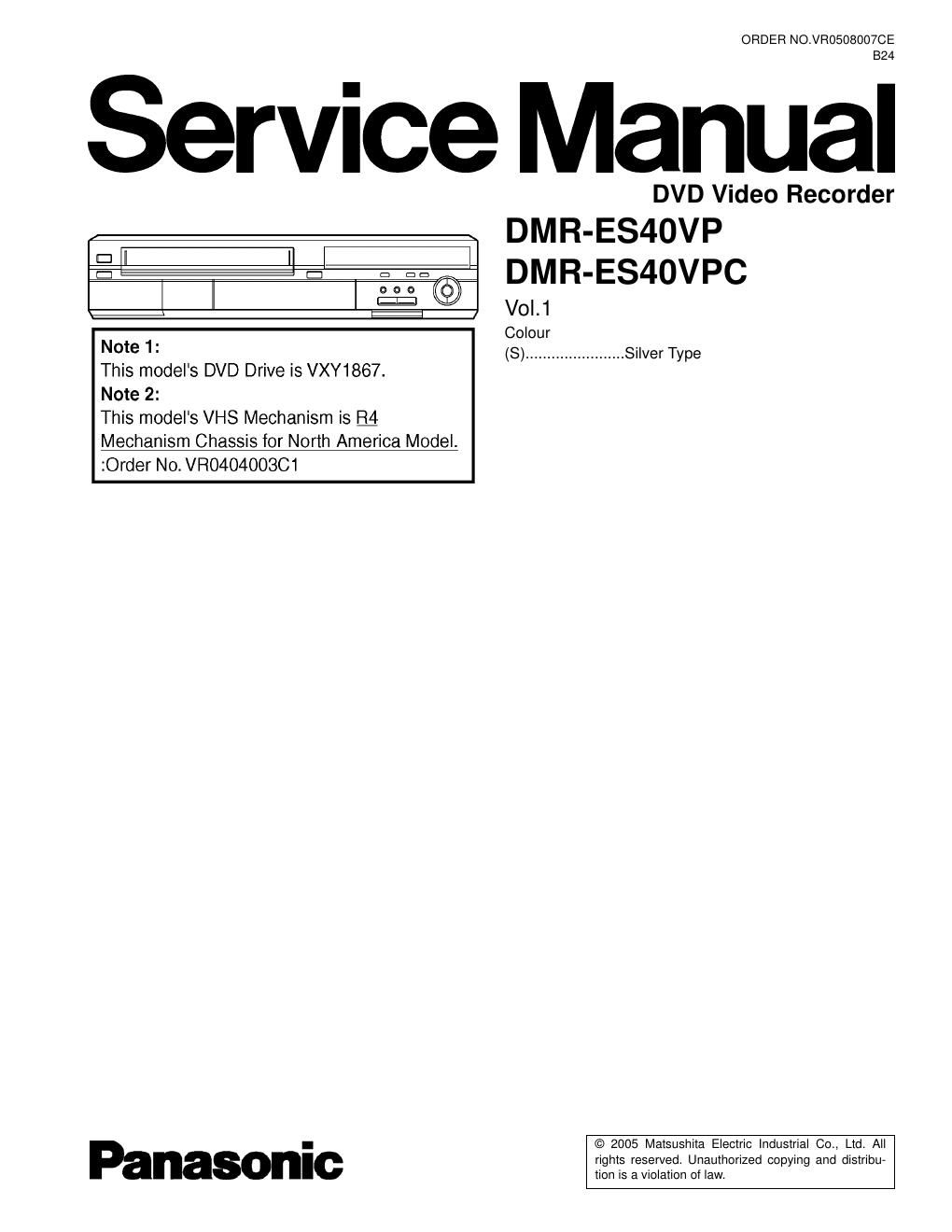

Page 1
ORDER NO.VR0508007CE
824
Service Manual
DVD Video Recorder
DMR-ES40VP
DMR-ES40VPC
Vol.1
Colour
N019 1: (S) ....................... Silver Type
This model's DVD Drive is VXY1867.
Note 2:
This model's VHS Mechanism is Fl_4
Mechanism Chassis for North America Model.
:Order No.VRO404003C1
© 2005 Maisushita Electric Industrial Co., Ltd. All
I
Panasonlc rights reserved. Unauthorized copying and distribu-
tion is a violalion of law.
Page 2
TABLE OF CONTENTS
PAGE
1 Safety Precaution ------------------------------------------------- 3
1.1. General guidelines --------------
1.2. Caution for fuse replacement
2 Warning -------------------------------------------------------------- 4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatic Sensitive (ES) Devices-
2.2. Precaution of Laser Diode ------
2.3. Handling the Lead-free Solder-
3 Service Navigation -------
3.1. Service Information--
3.2. (DVD) Service Navigation--
4 Specifications ------------------------
5 Features --------------------------------
5.1. Quick start function (REC) -
6 Location of Controls and Components-
6.1. Each Buttons -------
7 Operation Instructions -
7.1. (DVD) Taking out the Disc from RAM-Drive
Unit when the Disc cannot be ejected by
OPEN/CLOSE button -----------------------------
7.2. (VHS) Removing Cassette Tape manually --
8 Service Mode ----------------------------------------------------- 16
8.1.(DVD) Self-Diagnosis and Special Mode
Setting ------------------------------------------------------- 16
8.2. (VHS) Self-Diagnosis and Special Mode
Setting--
9 Service Fixture & Tools
10 Disassembly and Assembly Instructions-
10.1. Disassembly Flow Chart-
10.2. P.C.B. Positions ------------
10.3. Caution with inserting cassette tape when
disassembling the unit ---------------------------------- 31
10.4. Top Case -32
10.5. Front Panel - 32
10.6. Front Jack P.C.B. & Front P.C.B.-
10.7. Rear Panel with Fan Motor
10.8. VTR Mechanism Unit --------
10.9. Main P.C.B. ------
10.10. DVD-RAM Drive
10.11. Digital P.C.B.
10.12. DV Jack P.C.B
10.13. Power & Digital l/F P.C.B. -----
11 Measurements and Adiustments -
11.1. Service Positions --------------------------------
11.2. (DVD) Caution after parts replacing parts-
11.3. (VHS) Caution after replacing parts --
11.4. (DVD) Standard Inspection Specifications
after Making Repairs ------------------------------------ 45
12 Miscellaneous ------- --46
12.1. Abbreviations- ---46
PAGE
