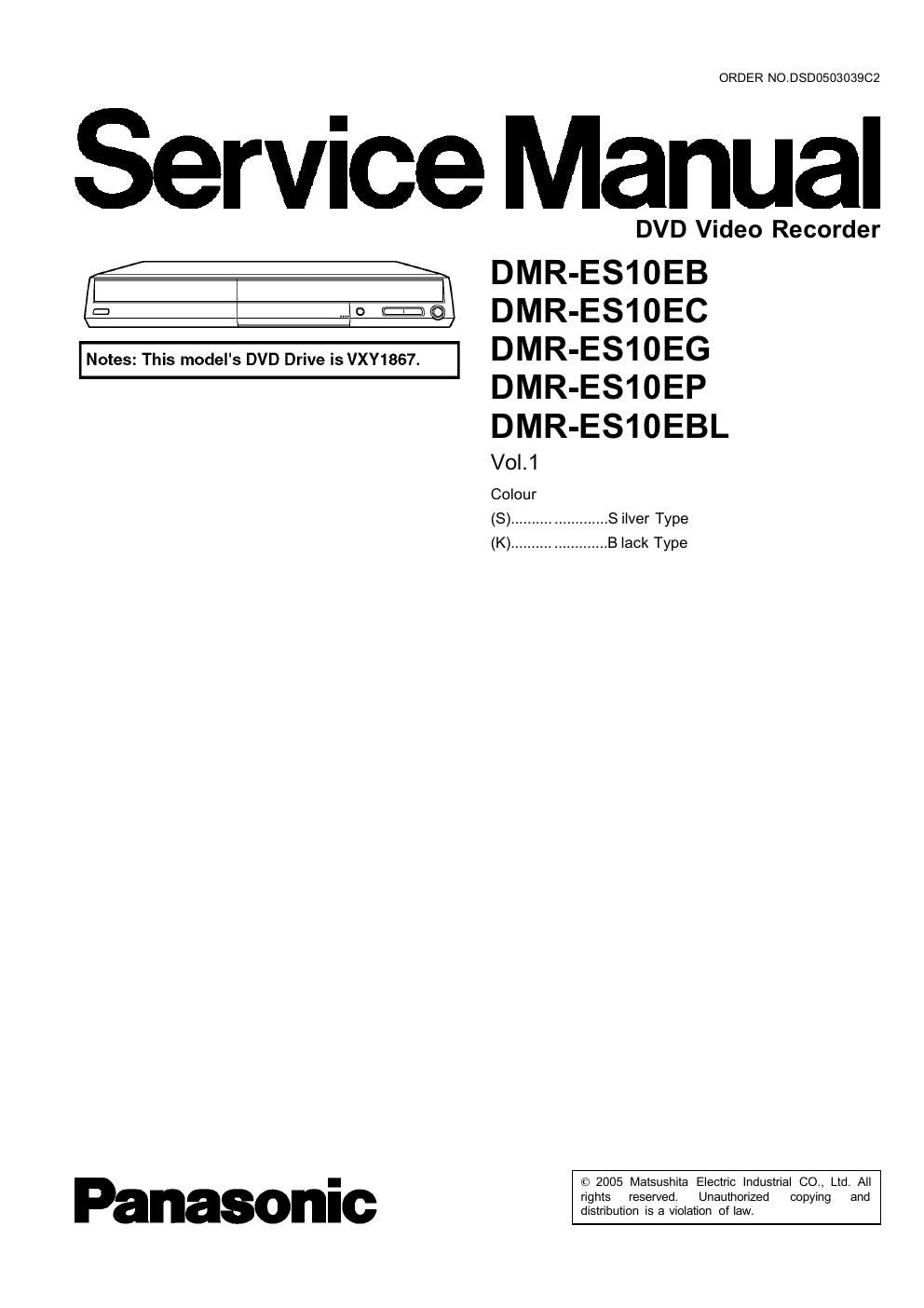

ORDER NO.DSD050303902

Service Manual

DVD Video Recorder

l DMR-ES10EB
[5 i° MQX DMR-ES10EC
Notes: This model's DVD Drive is VXY1867. DM R'ES1 DEG
DMR-ES10EP
DMR-ES10EBL

Vol.1
Colour
(S) ....................... S ilver Type
(K) ....................... B lack Type

© 2005 Matsushita Electric Industrial 00., Ltd. All

I
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

DMR-ES10EB l DMR-ES10EC lDMR-ES1UEG l DMR-ES1UEP l DMR-ES1DEBL

Introduction

This sen/ice manual contains technical information which will allow service personnel's to understand
and service this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, this information will be followed by supplement sen/ice manual to be filed with
original service manual.

1) This service manual does not contain the following information, because of the impossibility of sevicing at
component level.

* Schematic Diagram. Block Diagram and P.C.B. layout of Digital P.C.B.
* Parts List for individual parts of Digital P.C.B.
* Exploded View and Parts List for individual parts of RAM drive.

2) The following category are recycle module pan. Please send them to Central Repair Center.

Digital P.C.B. (ES10EB: RFKBES1OEB, ES1OEC: RFKBES10EC, ESlOEG: VEP79104B,

ES10EP: HFKBES1OEP. ES1OEBL: HFKBES1OEBL)
* RAM drive (vxv1ae7)
