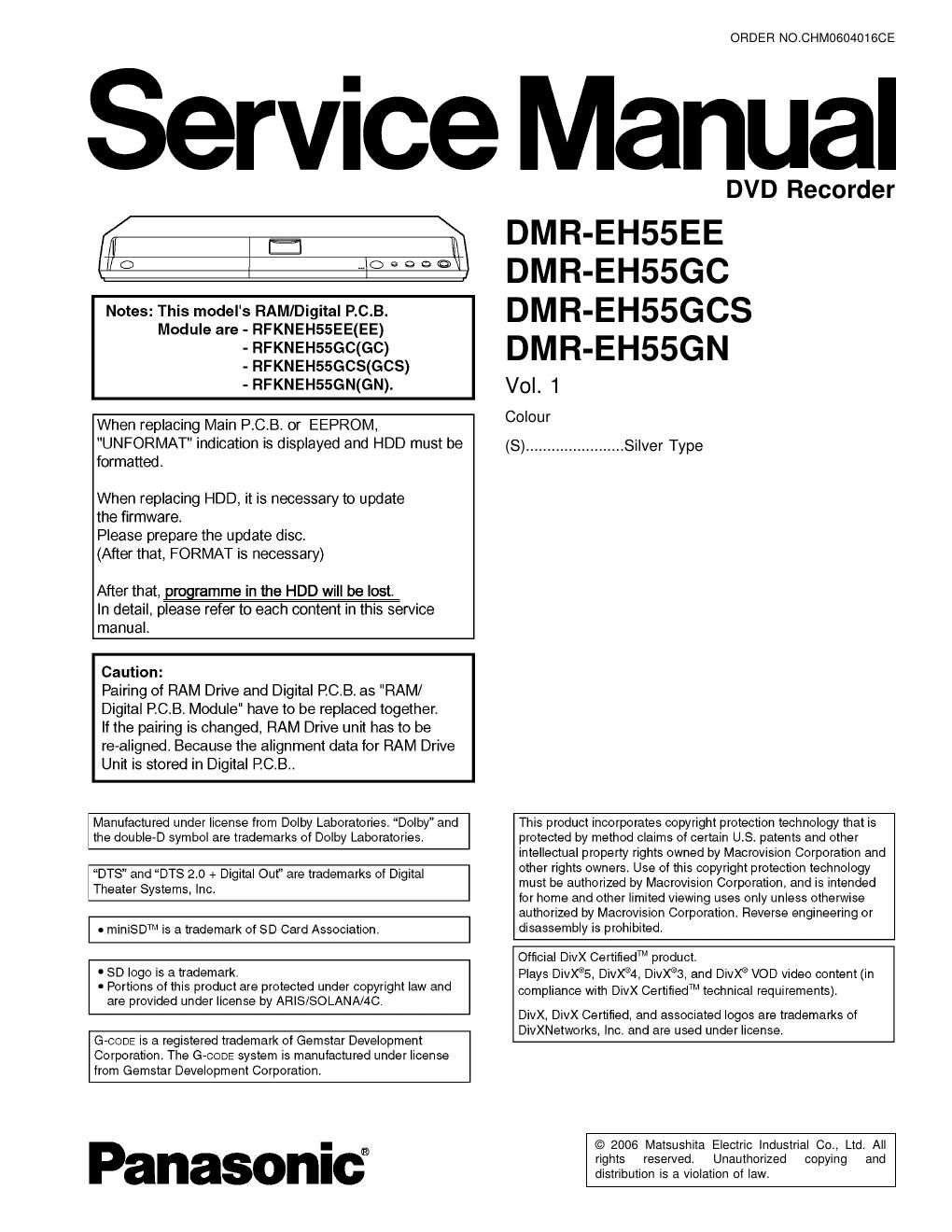

ORDER NO.CHM06040166E

Service Manual

[I E

l/O ...lOooo©\l
\ I j

Notes: This model's RAM/Digital P.C.B.
Module are - RFKNEH55EE(EE)
- RFKNEH55GC(GC)
- RFKNEHSSGCS(GCS)
- RFKNEHSSGMGN).

When replacing Main P.C.B. or EEPROM,
"UNFORMAT" indication is displayed and HDD must be
formatted.

When replacing HDD, it is necessaw to update
the firmware.

Please prepare the update disc.

(After that, FORMAT is necessary)

After that, programme in the HDD will be lost.
In detail, please refer to each content in this service

manual.

Caution:

Pairing of RAM Drive and Digital PCB. as "RAM/
Digital P.C.B. Module" have to be replaced together.

If the pairing is changed, RAM Drive unit has to be
re-aligned. Because the alignment data for RAM Drive
Unit is stored in Digital P.C.B..

DVD Recorder

DMR-EH55EE
DMR-EH55GC
DMR-EH55GCS
DMR-EH55GN

Vol. 1

Colour
(8) ....................... Silver Type

Manufactured under license from Dolby Laboratories Dolby and
the double-D symbol are trademarks of Dolby Laboratories

DTS and DTS 2.0 + Digital Out are trademarks of Digital
Theater Systems, Inc.

o miniSDTM is a trademark of SD Card Association.

' SD logo is a trademark.
- Portions of this product are protected under copyright law and
are provided under license by ARIS/SOLANA/4C.

G-CODE is a registered trademark of Gemstar Development
Corporation. The G-CODE system is manufactured under license
from Gemstar Development Corporation

Panasonic?

This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.

Official DivX CertifiedTM product.
Plays DivX®5, DivX@4. DivX®3, and DivX"E VOD video content (in
compliance with DivX CertifiedTM technical requirements).

DivX, DivX Certified, and associated logos are trademarks of
DivXNetworks, Inc. and are used under license.

© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a Violation of law.
