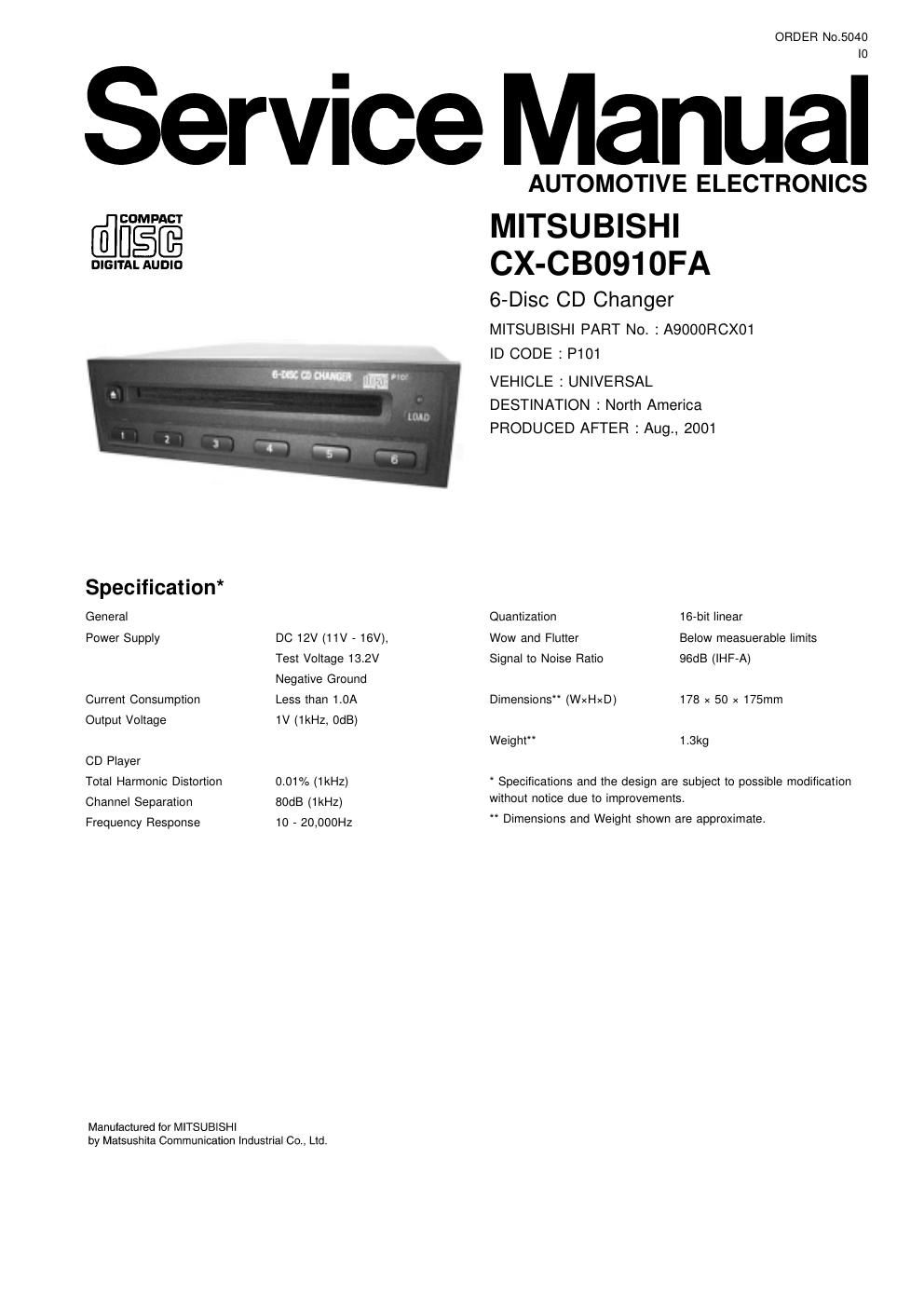

Page 1

ORDER No.5040

Service Manual

COMPACT

DIGITAL AUDIO

Specification*
General
Power Supply

Current Consumption
Output Voltage

CD Player

Total Harmonic Distortion
Channel Separation
Frequency Response

Manufactured for MITSUBISHI

DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 1.0A

1v (1kHz, OdB)

0.01% (1kHz)
SDdB (1kHz)
10 - 20,000Hz

by Matsushita Communication Industrial 00., Ltd,

AUTOMOTIVE ELECTRONICS

MITSUBISHI
CX-CBOQ10FA

6-Disc CD Changer

MITSUBISHI PART No. :A9000RCX01
ID CODE : P101

VEHICLE : UNIVERSAL
DESTINATION : North America
PRODUCED AFTER :Aug, 2001

Quantization 16-bit linear

Wow and Flutter Below measuerable limits
Signal to Noise Ratio 96dB (IHF-A)
Dimensions (WxHxD) 178 x 50 x 175mm
Weight 1.3kg

Specifications and the design are subject to possible modification
without notice due to improvements.

Dimensions and Weight shown are approximate.

Page 2

MITSUBISHI l CX-CBIJQWFA

CONTENTS

1 FEATURES -----------
2 LASER PRODUCTS
3 NAME AND FUNCTION OF EACH PARTS .............................. 3
4 REAR VIEW AND CONNECTOR
5 WIRING CONNECTION ----------
6 BLOCK DIAGRAM (Main Block) ............................................. 5
7 BLOCK DIAGRAM ( CD Servo Block
8 TERMINALS DESCRIPTION -------------
9 IC BLOCK DIAGRAM ----------------------------------------------------------- 1o

1 FEATURES

~ IDC series CD changer deck (Gadics slots).
~ Shock Proof Memory.
~ MITSUBISHI M-BUS control.

2 LASER PRODUCTS

Do not take apart this unit or attempt to make any
changes yourself.

This unit is very intricate that uses a laser pickup to
retrieve information from the suface of compact discs.
The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to
disassemble the player or alter any of its parts since
you may be exposed to laser rays and dangerous
voltages.

Laser products :
Wave length
Laser power

780nm
No hazardous radiation is
emitted with safety protection.

Caution

This product utillzes a laser.

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.

10 CD DISC CENTERING ALIGNMENT
11 REPLACEMENT PARTS LIST --------
12 EXPLODED VIEW (Unit) ------------------------------------------------------- 16
13 CD CHANGER PARTS L|ST---
14 EXPLODED VIEW (CD Deck-1
15 EXPLODED VIEW (CD Deck-2) -------------------------------------------- 21
16 EXPLODED VIEW (CD Deck-3
17 WIRING DIAGRAM -----------------
18 SCHEMATIC DIAGRAM -------------------------------------------------------- 27
