panasonic cr 16 assembly

Extracted text from panasonic cr 16 assembly (Ocr-read)

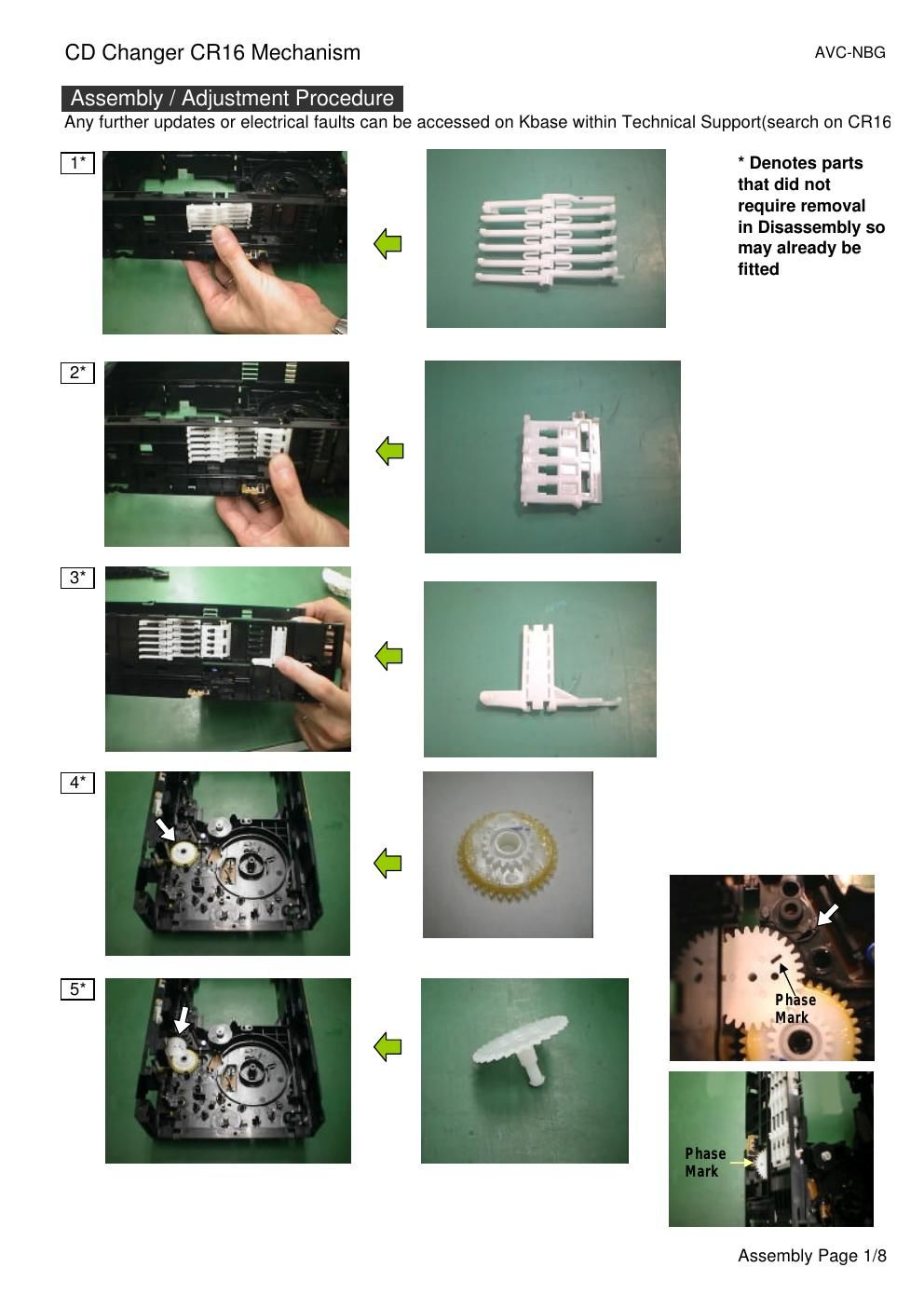

Page 1

6 This part is critical Move side plate forward a fraction when fitting. When it clicks into position, move side plate back again. Arrowed tooth must locate in first slot of side plate as shown 7* 8* 9* Hold above gear in position whilst fitting gear below 10 Assembly Page 2/8

Page 2

11* Refit screw if it was originally fitted, part number XTBS26+8J Be careful not to over-tighten-this gear is not used in mech operation, \ only used for the jig tool 12* 13* 14 15 Align the long tooth on the rack (see left) with the half tooth on the gear (see right) Assembly Page 3/8
