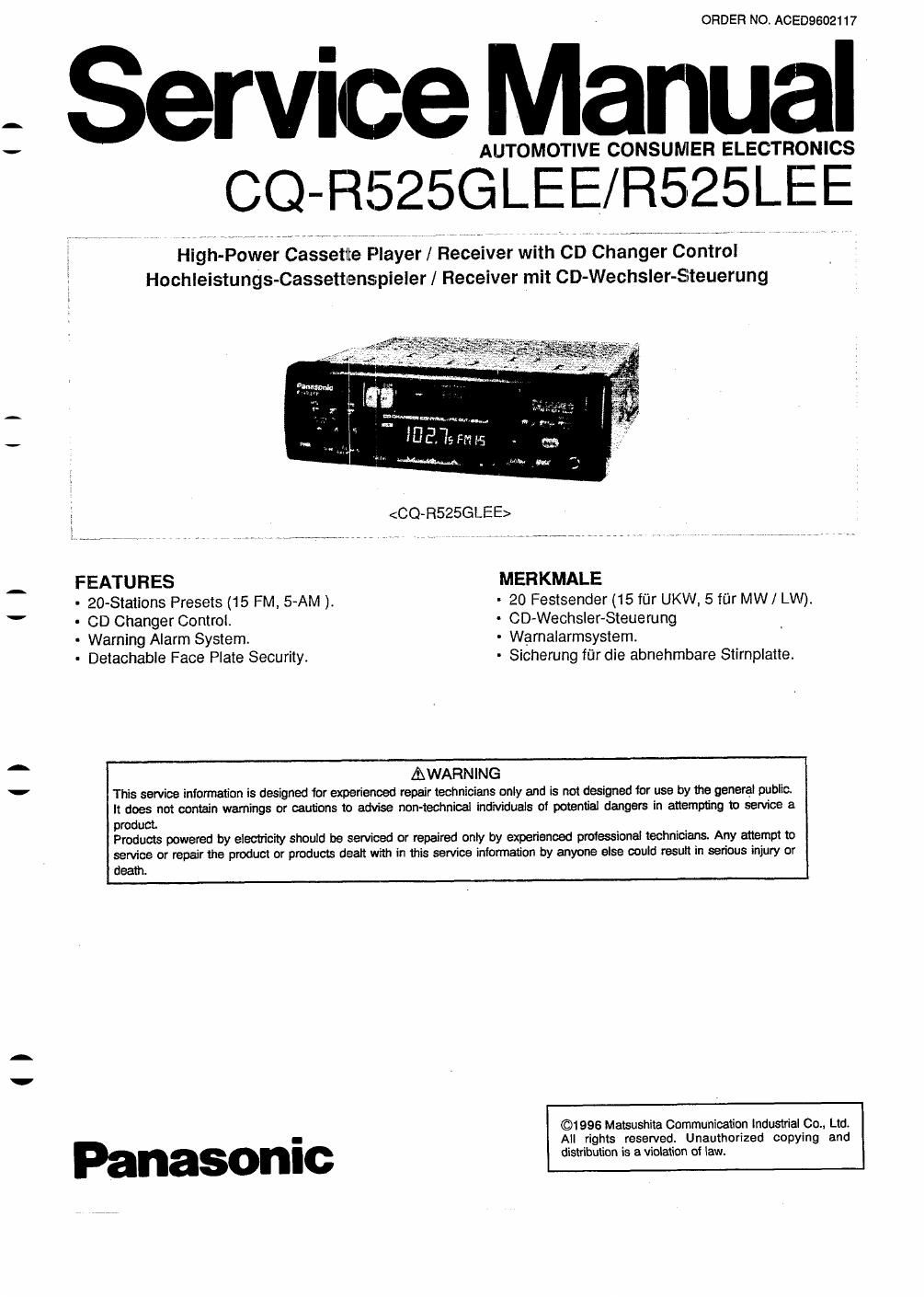

Page 1

ORDER NO. ACE09602117

- Service Manual

' AUTOMOTIVE CONSUMER ELECTRONICS

CQ-R525GL - -/R5~25 L:E

High-Power Cassette Player/ Receiver with CD Changer Control
Hochleistungs-Cassettenspielerl Receiver mit CD-Wechsler-Steuerung

infigEWflflfiwflfl .._.,, ,, M

FEATURES MERKMALE
- 20-Stations Presets (15 FM. S-AM ). - 20 Festsender (15 fiir UKW, 5 iijr MW/ LW).
' - CD Changer Control. - CD-WechsleeSteuerung
- Warning Alarm System. - Warnalarmsysiem.
- Detachable Face Plate Security. - Sicherung tiir die abnehmbare Stirnplatte.
A
AWARNING
' This service information is designed for experienced repair technicians only and is not designed for use by the general public
it does not contain warnings or cautions to advise non-technical individuals at potential dangers in attempting to service a
product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this sewice information by anyone else could result in serious injury or
death.

v

©1996 Matsushita Communication industrial Co., Ltd.
All rights reserved. Unauthorized copying and

I
Panasonlc distribution is a violation oi law.
