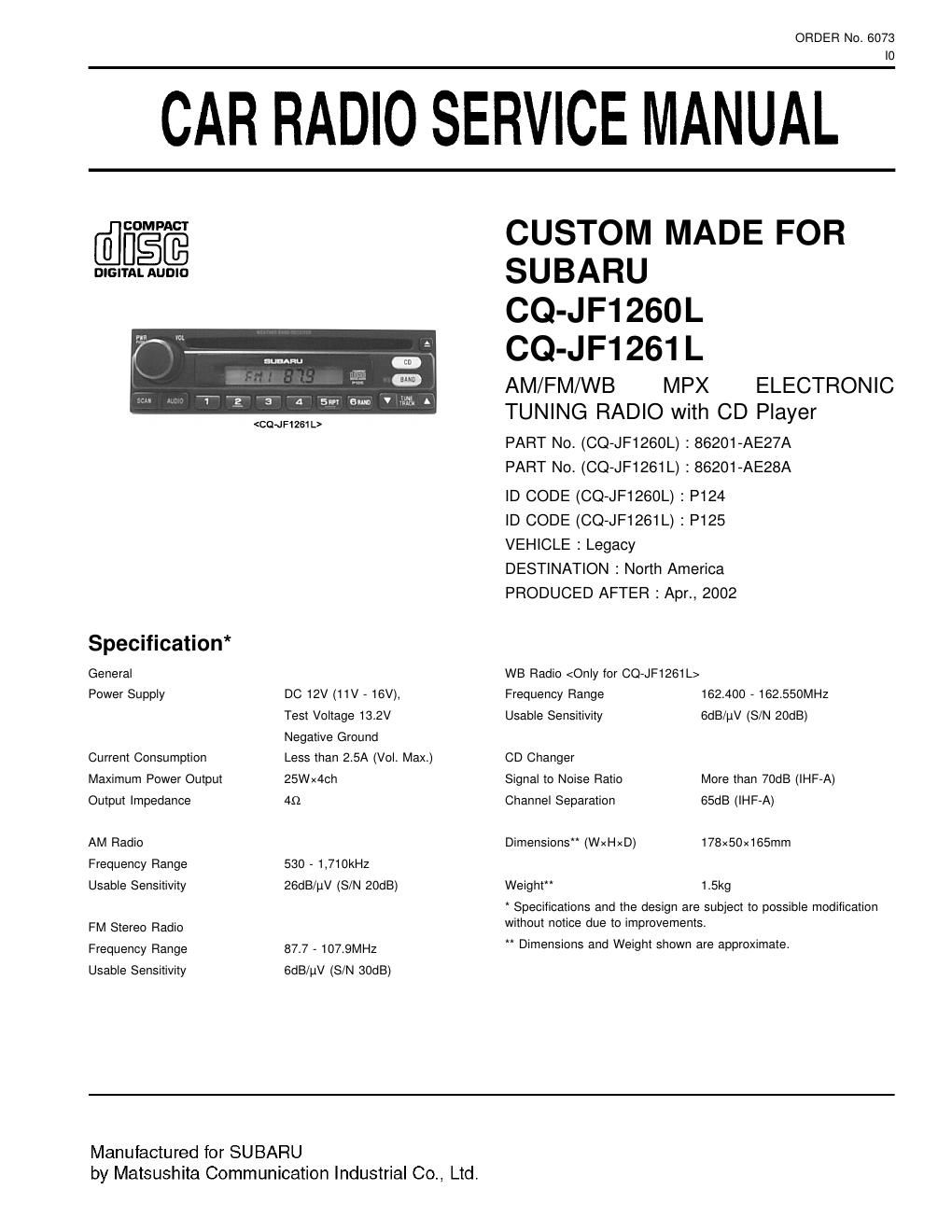

Page 1

ORDER NO. 6073

CAR RADIO SERVICE MANUAL
MW" CUSTOM MADE FOR
DIGITAL AUDIO S U B A R U
CQ-JF1260L
63 CQ-JF1261 L
i" W AM/FM/WB MPX ELECTRONIC

' '56? em V RAW-f. A

Specification*
General

Power Supply DC 12V (11V - 16V),

Test Voltage 13.2V
Negative Ground

Less than 2.5A (Vol. Max.)
25Wx4ch

Output Impedance 49

Current Consumption
Maximum Power Output

AM Radio
Frequency Range 530 - 1,710kHz
Usable Sensitivity 26dB/uV (S/N 20dB)
FM Stereo Radio
Frequency Range 87.7 - 107.9MHZ

Usable Sensitivity SdB/uV (S/N 30dB)

TUNING RADIO with CD Player

PART No. (CQ-JF1260L) : 86201-AE27A
PART No. (CQ-JF1261L) : 86201-AE28A

ID CODE (CQ-JF1260L) : P124
ID CODE (CQ-JF1261L) : P125
VEHICLE : Legacy
DESTINATION : North America
PRODUCED AFTER : Apr., 2002

WB Radio
Frequency Range 162.400 - 162.550MH2
Usable Sensitivity edB/uv (S/N ZOdB)
CD Changer

Signal to Noise Ratio More than 70dB (IHF-A)

Channel Separation 65dB (lHF-A)
Dimensions (WxHxD) 178x50x165mm
Weight" 1.5kg

Specifications and the design are subject to possible modification
without notice due to improvements.

" Dimensions and Weight shown are approximate.

Manufactured for SUBARU

by Matsushita Communication Industrial Co., Ltd.

Page 2

CONTENTS

Page Page
1 FEATuERS ------------------------------------------------------------------------------ 2 9 PACKAGE AND Ic BLOCK DIAGRAM ------------------------------------- a
2 LASER PRODUCTS 10 REPLACEMENT PARTS LIST ---10
3 REAR VIEW ----------- 11 EXPLODED VIEw (Unit) -------- ...15
4 FRONT VIEW AND FUNCTIONS ---------------------------------------------- 3 12 CD PLAYER PARTS -------------------------------------------------------------- 16
5 WIRING CONNECTION ------------ 13 EXPLODED VIEw (CD Deck)- ...17
6 BLOCK DIAGRAM (Main Block)- 14 WIRING DIAGRAM .............. ...13
7 BLOCK DIAGRAM (CD Servo Block) --------------------------------------- 5 15 SCHEMATIC DIAGRAM-1 ...................................................... 23
8 TERMINALS DESCRIPTION ----------------------------------------------------- 6 16 SCHEMATIC DIAGRAM-2 ...................................................... 25

3 REAR VIEW

1 FEATUERS

- PLL (Phase Locked Loop) synthesized tuning.

'24-station preset (12»FM, 6-AM, 6-WB JF1261L>)

~ Scan Tuning.
~ CD player Repeat, Random, Scan function.
~ CD changer control.

a. R (+) Input i.
b. Sig.GND j.
c. L (+) Input k.
d. No Connection |_
e. No Connection m.
t. No Connection n.
g. BUS Ground 0.
h. BUS Line p.

Power Supply, ACC
P. GND

Power Supply, +B
System Mute
Illumi. Cont.

No Connection

No Connection

No Connection

~ Electronic sound control function.

2 LASER PRODUCTS

Do not take apart this unit or attempt to make any
changes yourself.

This unit is very intricate that uses a laser pickup to
retrieve information from the suface of compact discs.
The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore. never try to
disassemble the player or alter any of its parts since
you may be exposed to laser rays and dangerous
voltages.

Laser products :

Wave length 780nm

, _ . 1. Illumi. (+) 8. Front SP, Rch (-)
Laser power No hazardous radIatIon IS 2 Front SP, Rch (+) 9. Front SP, Lch l')
emitted with safety protection. 3. Front SP, Lch (+) 10- Power SUPP'Y. ACC
4. Rear SP, Rch (+) 11. Ground
5. Rear SP, Lch (+) 12. Rear SP, Ftch (-)
- 6. Power Supply, +8 13. Rear SP, Lch (-)
Caution 7. Illumi. (-) 14. Motor Antenna

This product utilizes a laser.

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
