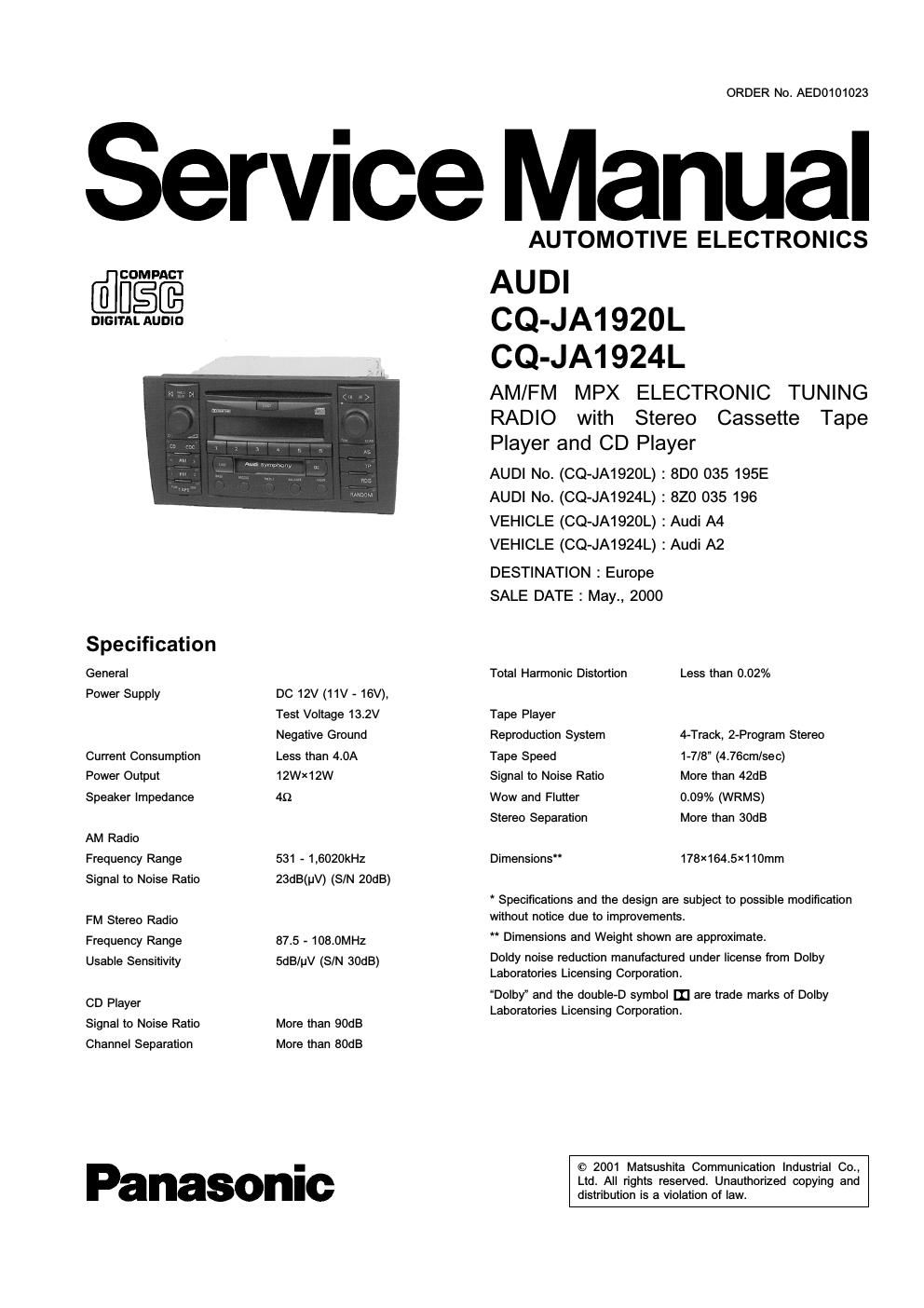

ORDER No. AED0101023

Service Manual

COMPACT

(fines

DIGITAL AUDIO

Specification
General

Power Supply

Current Consumption
Power Output

Speaker Impedance

AM Radio
Frequency Range

Signal to Noise Ratio

FM Stereo Radio
Frequency Range
Usable Sensitivity

CD Player
Signal to Noise Ratio

Channel Separation

DC 12V (11V -16V),
Test Voltage 13.2V
Negative Ground
Less than 4.0A
12WX12W

4K2

531 . 1,6020kHz
23dB(pV) (S/N 20dB)

37.5 . 108.0MHz
5dB/pV (S/N 30dB)

More than 90dB
More than 80dB

Panasonic

AUTOMOTIVE ELECTRONICS

AUDI
CQ-JA1920L
CQ-JA1924L

AM/FM MPX ELECTRONIC TUNING
RADIO with Stereo Cassette Tape
Player and CD Player

AUDI No. (CQ-JA1920L) : 8DO 035 195E
AUDI No. (CQ-JA1924L) : 8Z0 035 196
VEHICLE (CQ-JA1920L) : Audi A4
VEHICLE (CQ-JA1924L) : Audi A2

DESTINATION : Europe
SALE DATE : May., 2000

Total Harmonic Distortion Less than 0.02%
Tape Player
Reproduction System
Tape Speed 1-7/8" (4.76cm/sec)
More than 42dB
0.09% (WRMS)
More than 30dB

4-Track, 2-Program Stereo

Signal to Noise Ratio
Wow and Flutter

Stereo Separation

Dimensions" 178><1G4.5X110mm

' Specifications and the design are subject to possible modification
without notice due to improvements.

" Dimensions and Weight shown are approximate.

DoIdy noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.

Dolby" and the double~D symbol II] are trade marks of Dolby
Laboratories Licensing Corporation.

© 2001 Matsushita Communication Industrial Co.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
