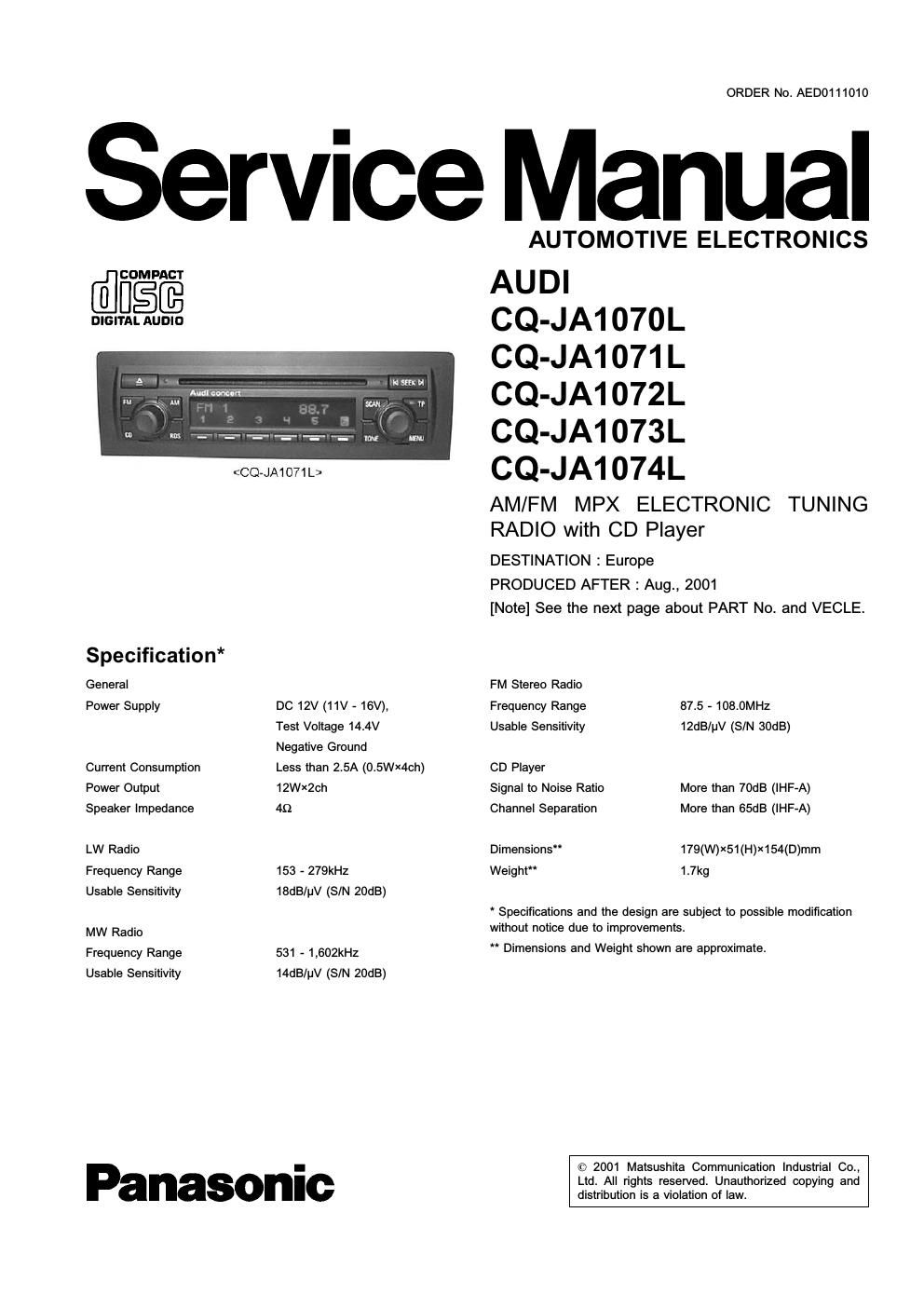

ORDER No. AED0111010
Service Manual
COMPACT
@DSIE
DIGITAL AUDIO
Specification*
General
Power Supply
Current Consumption
Power Output
Speaker Impedance
LW Radio
Frequency Range
Usable Sensitivity
MW Radio
Frequency Range
Usable Sensitivity
DC 12v (11v -16v),
Test Voltage 14.4V
Negative Ground
Less than 2.5A (0.5WX4ch)
12WX20h
4K2
153 ~ 279m:
18dB/pV (SIN ZOdB)
531 ~ 1,602kHz
14dB/pV (SIN 20dB)
Panasonic
AUTOMOTIVE ELECTRONICS
AUDI
CQ-JA1070L
CQ-JA1071 L
CQ-JA1072L
CQ-JA1073L
CQ-JA1074L
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
DESTINATION : Europe
PRODUCED AFTER : Aug., 2001
[Note] See the next page about PART No. and VECLE.
FM Stereo Radio
87.5 - 108.0MHZ
12dB/pV (S/N 30dB)
Frequency Range
Usable Sensitivity
CD Player
Signal to Noise Ratio More than 70dB (IHF~A)
Channel Separation More than 65dB (IHF-A)
Dimensions" 179(W)X51(H)X154(D)mm
Weight" 1.7kg
* Specifications and the design are subject to possible modification
without notice due to improvements.
" Dimensions and Weight shown are approximate.
© 2001 Maisushita Communication Industrial 00.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
