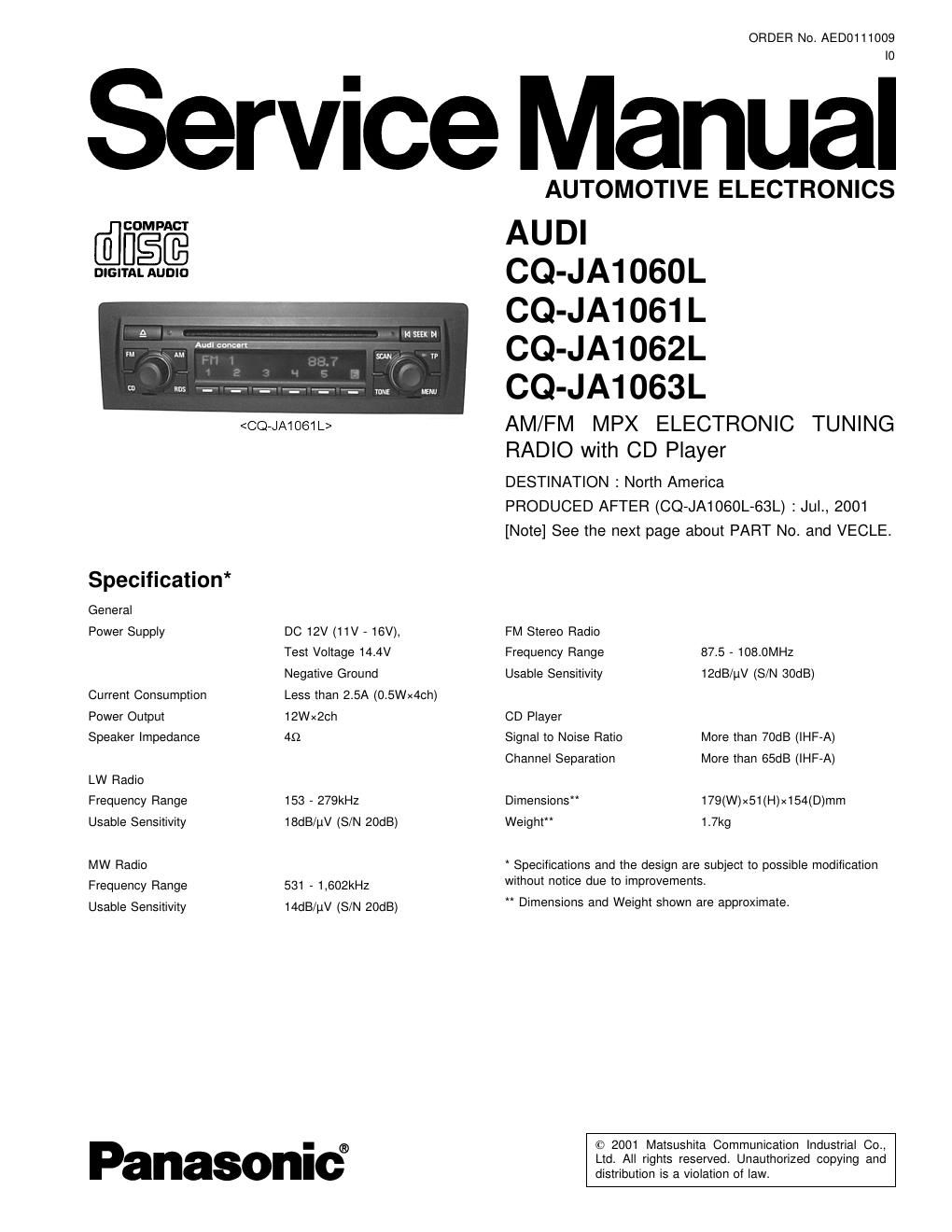

ORDER NO. AED0111009
Service Manual
COMPACT
DIGITAL AUDIO
Specification*
General
Power Supply
Current Consumption
Power Output
Speaker Impedance
LW Radio
Frequency Range
Usable Sensitivity
MW Radio
Frequency Range
Usable Sensitivity
DC12V(11V -16V),
Test Voltage 14.4V
Negative Ground
Less than 2.5A (0.5Wx4ch)
12Wx2ch
49
153 - 279kHz
18dB/uV (S/N 20dB)
531 - 1,602kH2
14dB/uV (S/N 20dB)
Panasonic?
AUTOMOTIVE ELECTRONICS
AUDI
CQ-JA1060L
CQ-JA1061 L
CQ-JA1062L
CQ-JA1063L
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
DESTINATION : North America
PRODUCED AFTER (CQ-JA1060L-63L) : Jul., 2001
[Note] See the next page about PART No. and VECLE.
FM Stereo Radio
Frequency Range 87.5 - 108.0MH2
Usable Sensitivity 12dB/pV (S/N 30dB)
CD Player
Signal to Noise Ratio More than 70dB (IHF-A)
Channel Separation More than 65dB (lHF-A)
Dimensions" 179(W)x51(H)x154(D)mm
Weight" 1.7kg
Specifications and the design are subject to possible modification
without notice due to improvements.
" Dimensions and Weight shown are approximate.
© 2001 Matsushita Communication Industrial 00.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
