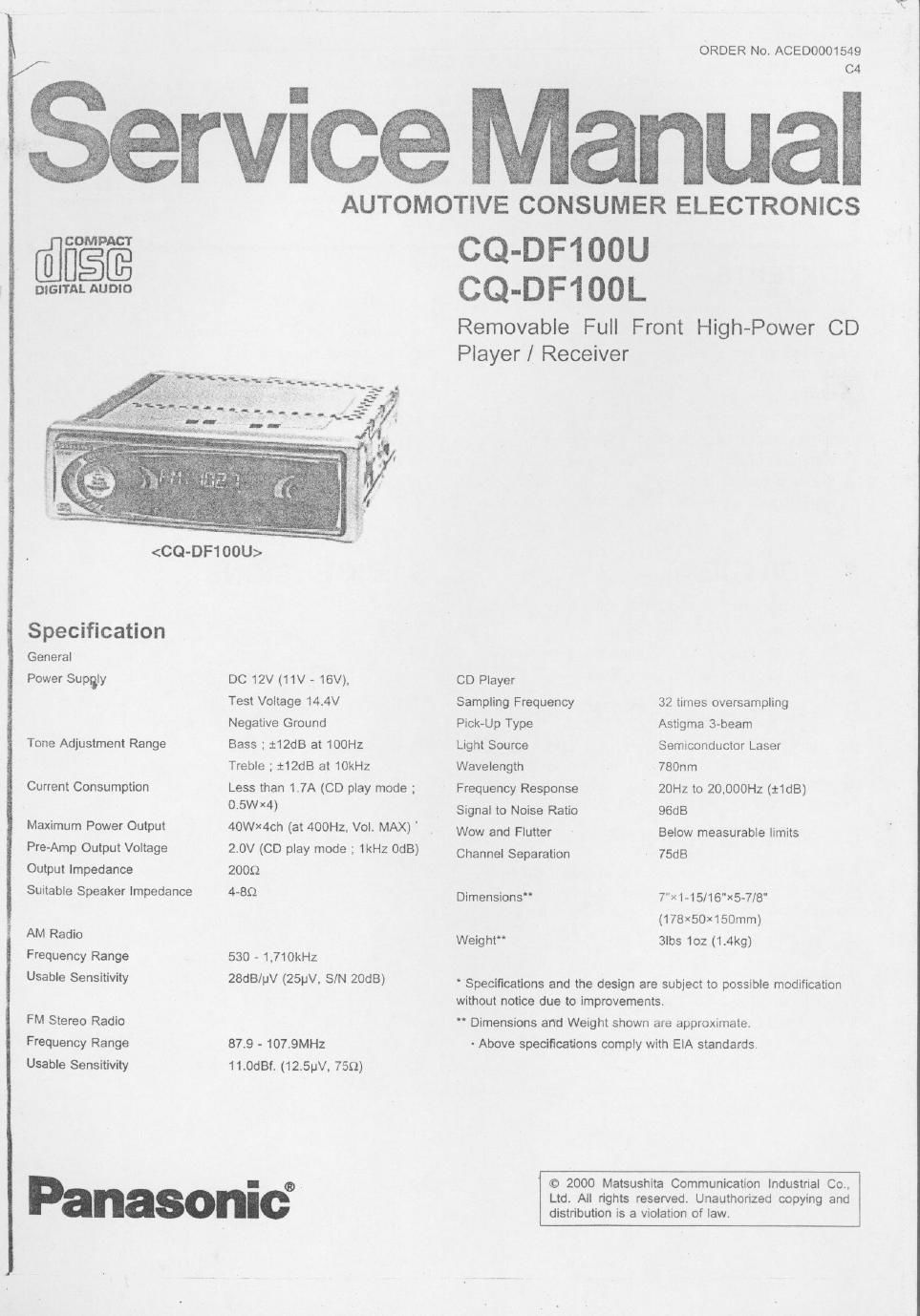

Page 1
ll
ORDER No. ACEDOOO1549
Service Manual
AUTOMOTIVE CONSUMER ELECTRONICS
COMPACT
disc
DIGITAL AUDIO
"It15q. :.._ ~
-_..._,__._L_ .
Specification
General
Power Supply DC 12V (11V - 16V).
Test Voltage 14,4V
Negative Ground
Bass ; :12dB at 100Hz
Treble ; :12dB at 10kHz
Less than 1.7A (CD play mode ;
o.5w><4)
4OWX4ch (at 400Hz, Vol, MAX) '
2.0V (CD play mode ; 1kHz MB)
2000
4-80
Tone Adjustment Range
Current Consumption
Maximum Power Output
Pre-Amp Output Voltage
Output Impedance
Suitable Speaker Impedance
AM Radio
Frequency Range
Usable Sensitivity
530 -1.710kHz
28dB/pV (25w. SIN 20:13)
FM Stereo Radio
Frequency Range
Usable Sensitivity
87.9 < 107r9MHz
11.0dBf. (12.5w, 75:2)
Panasonici
CQ-DF100U
CQ-DF100L
Removable Full Front High-Power CD
Player / Receiver
CD Player
Sampling Frequency
Pick-Up Type
Light Source
Wavelength
Frequency Response
Signal to Noise Ratio
Wow and Flutter
Channel Separation
Dimensions"
Weig ht
32 times oversampling
Astigma 3-beam
Semiconductor Laser
780nm
20Hz to 20,000Hz (iidB)
BGdB
Below measurable limits
75dB
7"X1A15/16X5-7/B"
(17BX50X150mm)
3|bs 102 (1 .4kg)
' Specifications and the design are subject to possible modification
without notice due to improvements.
" Dimensions and Weight shown are approximate.
- Above specifications comply with EIA standards
© 2000 Matsushita Communication industrial Co,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
