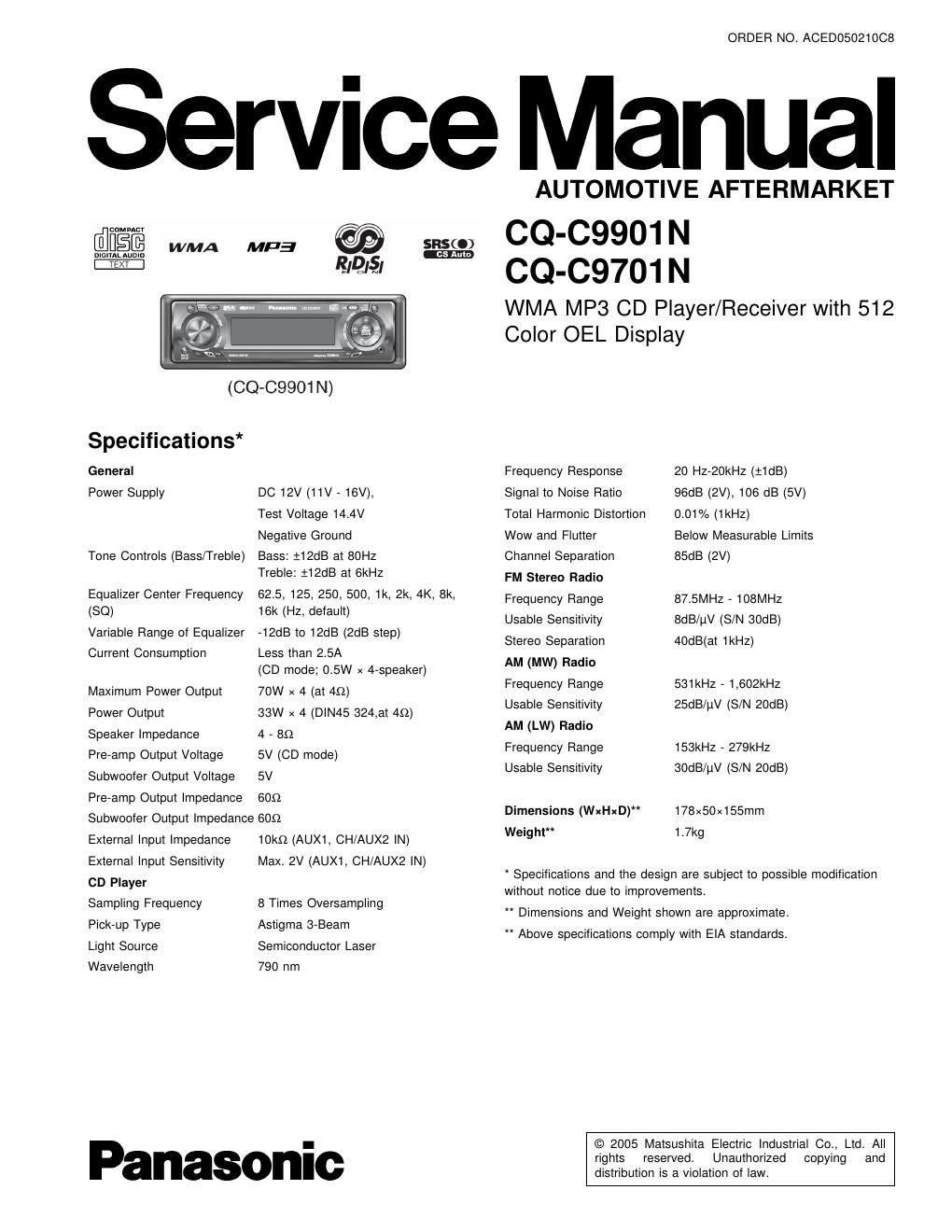

Page 1

ORDER NO. ACED05021OC8

Service Manual

comm

WMA Mp3 95(0)

DIGITAL AUDID
TEXT

(co-09901 N)

Specifications*

General

Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground

Tone Controls (Bass/Treble) Bass: i12dB at 80Hz
Treble: :12dB at 6kHz

Equalizer Center Frequency 62.5, 125, 250, 500, 1k, 2k, 4K, 8k,

(SQ) 16k (Hz, default)
Variable Range of Equalizer ~12dB to 12dB (2dB step)
Current Consumption Less than 2.5A

(CD mode; 0.5W x 4-speaker)
Maximum Power Output 70W x 4 (at 45))
Power Output 33W x 4 (DIN45 324,at 451)
Speaker Impedance 4 - 8!)

Pre-amp Output Voltage 5V (CD mode)

Subwoofer Output Voltage 5V

Pre-amp Output Impedance 60!)

Subwoofer Output Impedance 605)

External Input Impedance 10kg (AUX1, CH/AUX2 IN)
External Input Sensitivity Max. 2V (AUX1, CH/AUX2 IN)

CD Player

Sampling Frequency 8 Times Oversampling
Pick-up Type Astigma 3-Beam

Light Source Semiconductor Laser
Wavelength 790 nm

Panasonic

AUTOMOTIVE AFTERMARKET

CQ-C9901 N
CQ-C9701 N

WMA MP3 CD Player/Receiver with 512
Color OEL Display

Frequency Response 20 Hz-20kHz (ttdB)
Signal to Noise Ratio SGdB (2V), 106 dB (5V)
Total Harmonic Distortion 0.01% (1kHz)

Wow and Flutter Below Measurable Limits
Channel Separation 85dB (2V)

FM Stereo Radio

Frequency Range 87.5MHz - 108MHz
Usable Sensitivity 8dB/uV (S/N 30dB)
Stereo Separation 40dB(at 1kHz)

AM (MW) Radio

Frequency Range 531kHz - 1,602kHz
Usable Sensitivity 25dB/pV (S/N 20dB)
AM (LW) Radio

Frequency Range 153kHz - 279kHz
Usable Sensitivity aodB/pV (S/N 20dB)

Dimensions (WxHxD)" 178x50x155mm
Weight" 1.7kg

Specifications and the design are subject to possible modification
without notice due to improvements.

" Dimensions and Weight shown are approximate.
" Above specifications comply with EIA standards.
