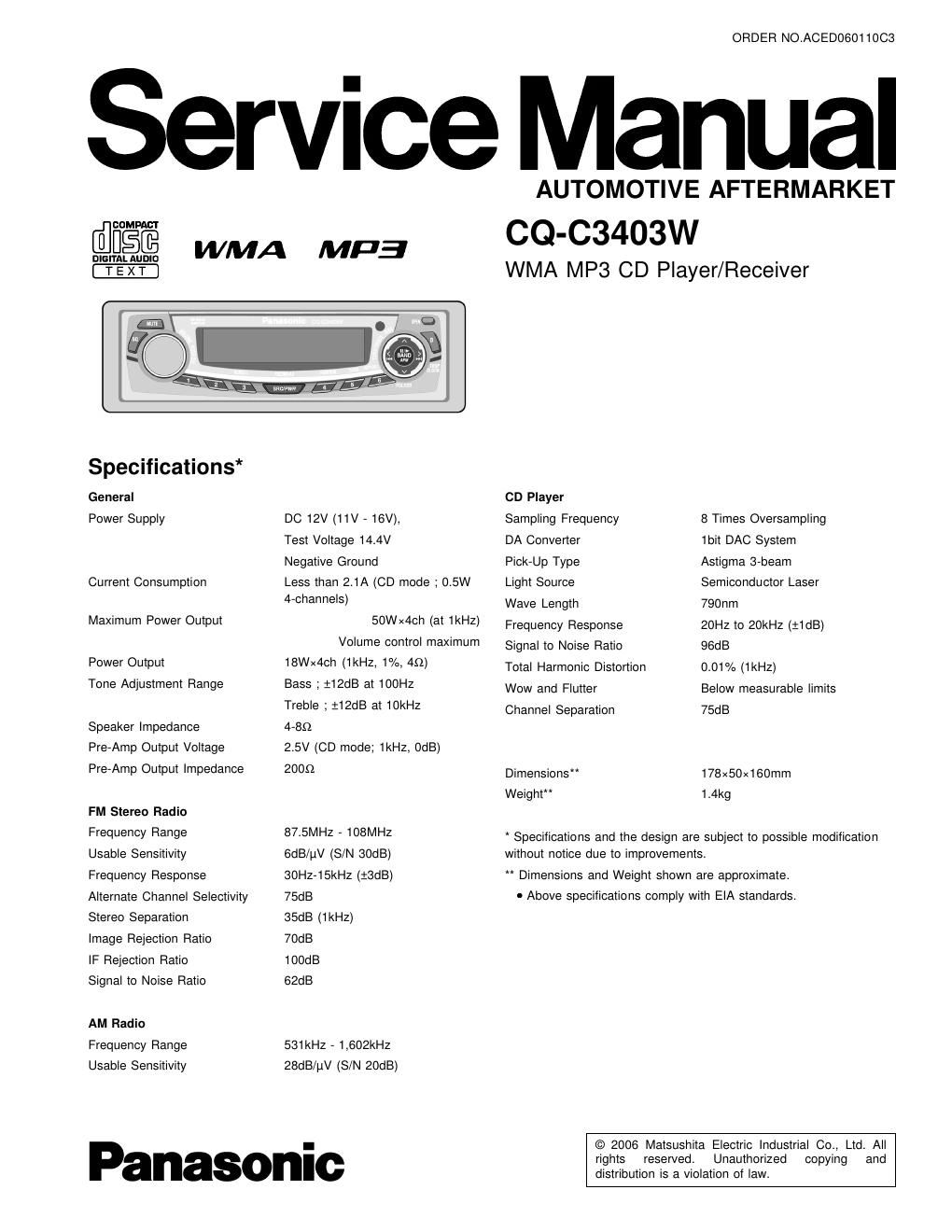

Panasonic cq c 3403 w service manual

Page 2

AWARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANTSAFETYNOHCE

There are special components used in this equipment which are important for safety. These pans are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List II is essential that these critical parts should be replaced
with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

CONTENTS

Page

1 ABOUT LEAD FREE SOLDER (PbF) ....................................... 3
2 LASER PRODUCTS-
3 FEATUERS--
4 REPLACING THE FUSE-
5 MAINTENANCE ....................................................................... 3
6NOTES .................................................................................... 3
7mMEN$0NS -----------
8 WIRING CONNECTION
9 TERMINALS DESCRIPTION

Page

10 PACKAGE AND lc BLOCK DIAGRAM ..................................... 7
11 REPLACEMENT PARTS LIST -10

12 EXPLODED VIEW (Unit) '16
13 CD PLAYER PARTS LIST -17
14 EXPLODED VIEW (CD Deck) ------------------------------------------------- 20
15 WIRING DIAGRAM ----------------------------------------------------------------- 21

-27
-29
-33

16 SCHEMATIC DIAGRAM -1
17 SCHEMATIC DIAGRAM -2
18 BLOCK DIAGRAM --------
