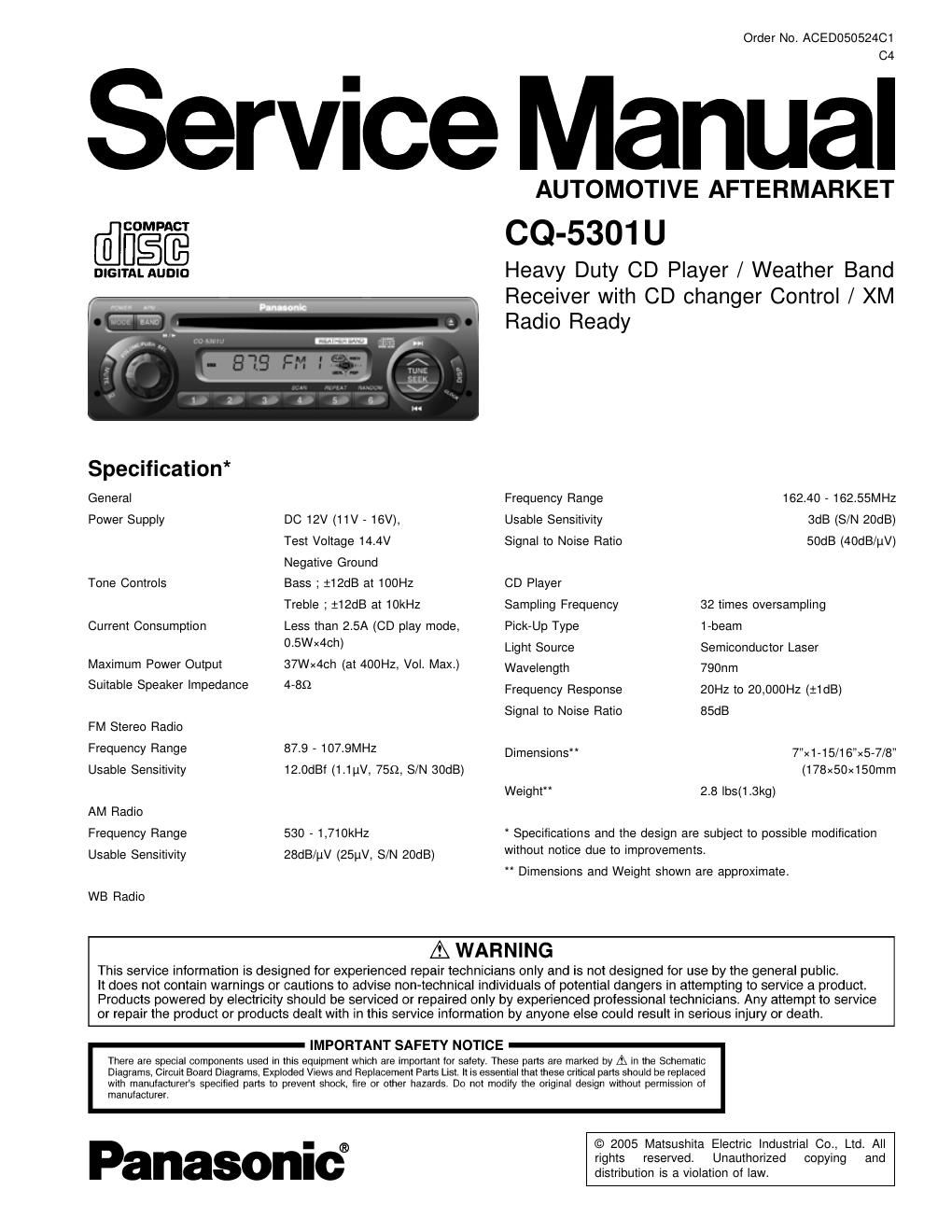

Order No. ACED050524C1

Service Manual

AUTOMOTIVE AFTERMARKET
UlriUSiB CQ-5301 U

DIGITALAUDIO Heavy Duty CD Player / Weather Band
Receiver with CD changer Control / XM
Radio Ready

num-

I . .

Specification*
General Frequency Range 162.40 - 162.55MH2
Power Supply DC 12V (11V - 16V), Usable Sensitivity 3dB (S/N 20dB)
Test Voltage 14.4V Signal to Noise Ratio 50dB (40dB/uV)
Negative Ground
Tone Controls Bass ; :1 2dB at 100Hz CD Player
Treble ; :12dB at 10kHz Sampling Frequency 32 times oversampling
Current Consumption Less than 2.5A (CD play mode, Pick-Up Type 1-beam
O'SWX4Ch) Light Source Semiconductor Laser
Maximum Power Output 37Wx4ch (at 400Hz, Vol. Max.) Wavelength 790nm
Suitable Speaker Impedance 4'89 Frequency Response 20Hz to 20,000Hz (itdB)
Signal to Noise Ratio 85018
FM Stereo Radio
Frequency Range 87.9 - 107.9MHZ Dimensions 7"x1-15/16"><5-7/8"
Usable Sensitivity 12.0dBf (1.1pV, 759, S/N 30dB) (178x50x150mm
Weight" 2.8 Ibs(1.3kg)
AM Radio
Frequency Range 530 - 1,710kHz Specifications and the design are subject to possible modification
Usable Sensitivity 28dB/uV (25w, S/N ZOdB) Within" 09 due 0 improvemems-
" Dimensions and Weight shown are approximate.
WB Radio

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be sen/iced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

- IMPORTANT SAFETY NOT|CE -

There are special components used in this equipment which are important lor saiety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical pans should be replaced
with manulacturers speciiied pans to prevent shock. lire or other hazards. Do not modily the original design without permission of
manufacturer

© 2005 Matsushita Electric Industrial Co., Ltd. All

- ®
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

CONTENTS

Page
1 ABOUT LEAD FREE SOLDER (PbF) ....................................... 2
2 LASER PRODUCTS
3 FEATUERS ------------
4 REPLACEING THE FUSE -------------------------------------------------------- 3
5 MAINTENANCE
6 NOTES ------------
7 DIMENSIONS --------------------------------------------------------------------------- 3

8 WIRING CONNECTION-
9 BLOCK DIAGRAM -----
10 TERMINALS DESCRIPTION ..................................................... 6

1 ABOUT LEAD FREE
SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF
stamp on the PCB.

Caution :

- Pb free solder has a higher melting point than standard
solder; Typically the melting point is 50 » 70°F (30 »
40°C) higher. Please use a soldering iron with
temperature control and adjust it to 700 t 20°F (370 :
10°C). In case of using high temperature soldering iron.
please be careful not to heat too long.

0 Pb tree solder will tend to splash when heated too high
(about 1100°F/600°C)

- This lead free solder will be used for the products after
serial No. 1,000,001.

Page
11 PACKAGE AND Ic BLOCK DIAGRAM ..................................... 3
12 REPLACEMENT PARTS LIST ---12

13 EXPLODED VIEW (Unit) -------- "-16
14 CD PLAYER MECHANICAL PARTS LIST ............................... 17
15 EXPLODED VIEW (CD Deck)- ---13
16 PACKING PARTS LIST ------- ...19
17 WIRING DIAGRAM ................................................................. 20
18 SCHEMATIC DIAGRAM-1
19 SCHEMATIC DIAGRAM-2
20 SCHEMATIC DIAGRAM for printing with Letter size ------------ 29

2 LASER PRODUCTS

CAUTION:
This product utilizes a laser diode with the unit turned on,
laser radiation is emitted from the pickup lens.
Laser radiation from the pickup lens is safety level, but be
sure the followings:
1.Do not disassemble the optical pickup unit, since
radiation from exposed laser diode is dangerous.
2, Do not adjust the variable resistor on the pickup unit.
It was already adjusted.
3. Do not look at the focus lens using optical instruments.
4, Recommend not to look at pickup lens for a long time.

DANGER! Invisible laser radiation when open.
Avoid direct exposure to beam.

Deck Ass'y (Upper Side)

Caution

This Product utilizes a laser.

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
