Optonica RP 5200H Service Manual

This is the 22 pages manual for Optonica RP 5200H Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 22
left right
Optonica RP 5200H Service Manual

Extracted text from Optonica RP 5200H Service Manual (Ocr-read)


Page 1

a OPTONICA

0 GENERAL
Power supply source:
Power rating:
Dimensions:

Weight

(including dust coverl-

I TURNTABLE
Type:
Motor:

Drive system:
Speed:

Speed adjustable range:

Wow and flutter:
Rumble:
Turntable:

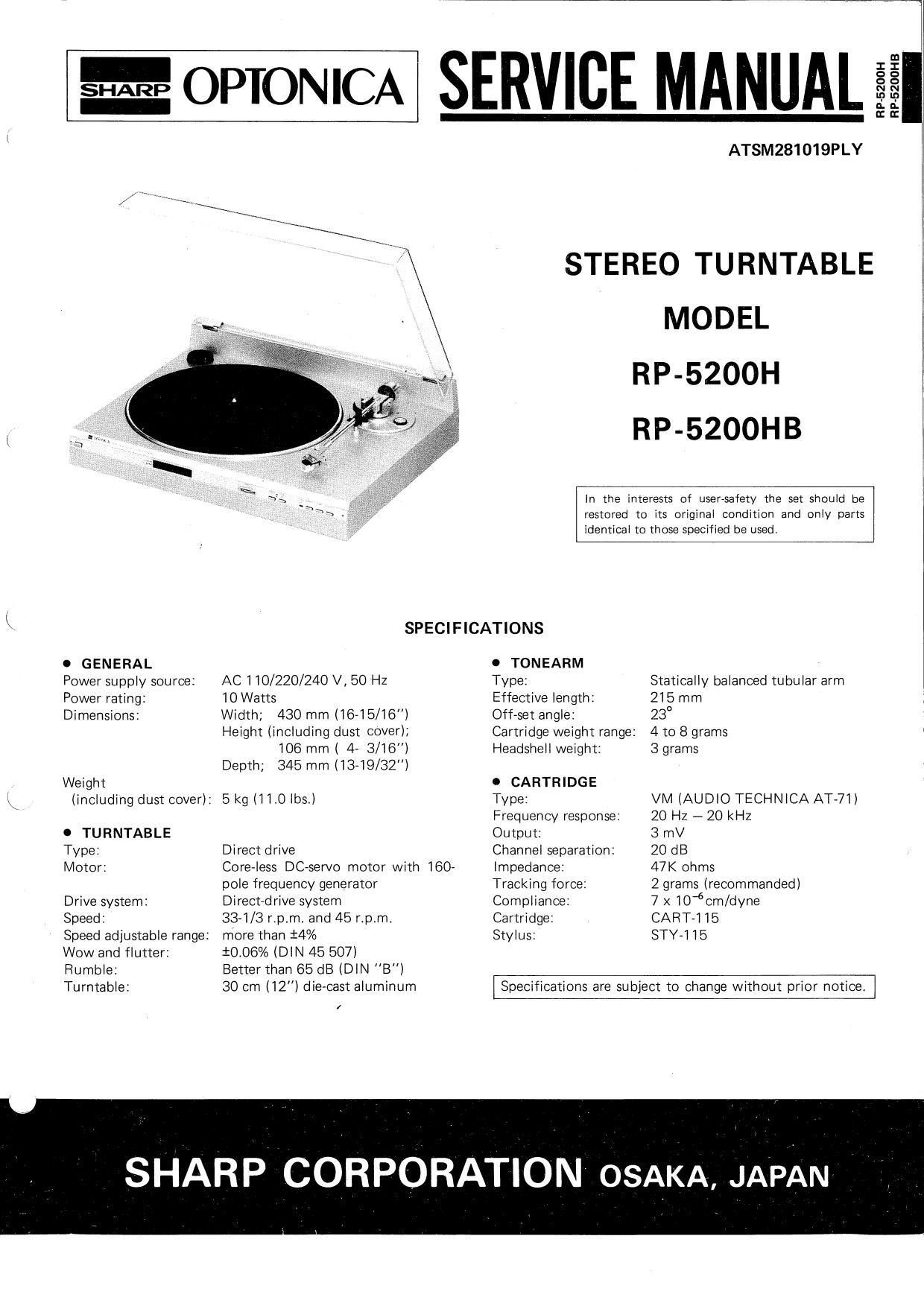

SERVICE MANUAL

ATSM281019PLY

STEREO TURNTABLE
MODEL
RP-5200H
RP-5200HB

In the interests of user-safety the set should be
restored to its original condition and only parts
identical to those specified be used.

SPECIFICATIONS

AC 110/220/240 V, 50 Hz
10 Watts

Width; 430 mm (16-15/16-)
Height (including dust cover);

106 mm( 4, 3/16")
Depth; 345 mm (13719/32-)

5 kg (110 lbs.)

Direct drive

Core-less DCeservo motor with 160*

pole frequency generator
Directedrive system

33-1/3 r.p.m. and 45 rpm.
more than i4%

10.06% (DIN 45 507)

Better than 65 dB (DlN -B-)
30 cm (12") die-cast aluminum

1

O TONEARM

Type: Statically balanced tubular arm
Effective length: 215 mm

Off-set angle: 23°

Cartridge weight range: 4 to 8 grams

Headshell weight: 3 grams

0 CARTRIDGE

Type: VM (AUDIO TECHNlCA ATA71)
Frequency response: 20 Hz - 20 kHz

Output: 3 mV

Channel separation: 20 dB

Impedance: 47K ohms

Tracking force: 2 grams (recommended)
Compliance: 7 X iO'ficm/dyne

Cartridge: CART-115

Stylus: STY-I 15

{Specifications are subject to change without prior notice.

SHARP CORPORATION OSAKA, JAPAN

RP-SZOOH

RP-5200HB

Page 2

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE OPERATION MANUAL

NAMES O F PARTS

1. Power switch button

2. Stroboscopic speed Indicator
3. Pitch (Fine speed) control knob
4. Speed selector button

5. Record size selector button
6. Repeat play mode indicator
7. Repeat play button

8. Tonearm cue button

9. Play start/cut-out button
10, Stylus

11. Head shell

12. Head shell removal screw
13. Tonearrn

14. Tonearm rest

Figure 2-1

25

Figure 2-2

15.
16.
17.
18,
19.
20.
21.
22.
23.
24.
25.
26.
27.

Z7

Tonearrn lifter

Anti~skating control knob
Tracking force gauge

Tonearm counterbalance weight
Turntable

Turntable center spindle

AC supply voltage selector
Turntable rubber mat

Spindle adaptor for 45 rpm, record
Dust cover hinge

Dust cover

Output leads

AC supply lead
