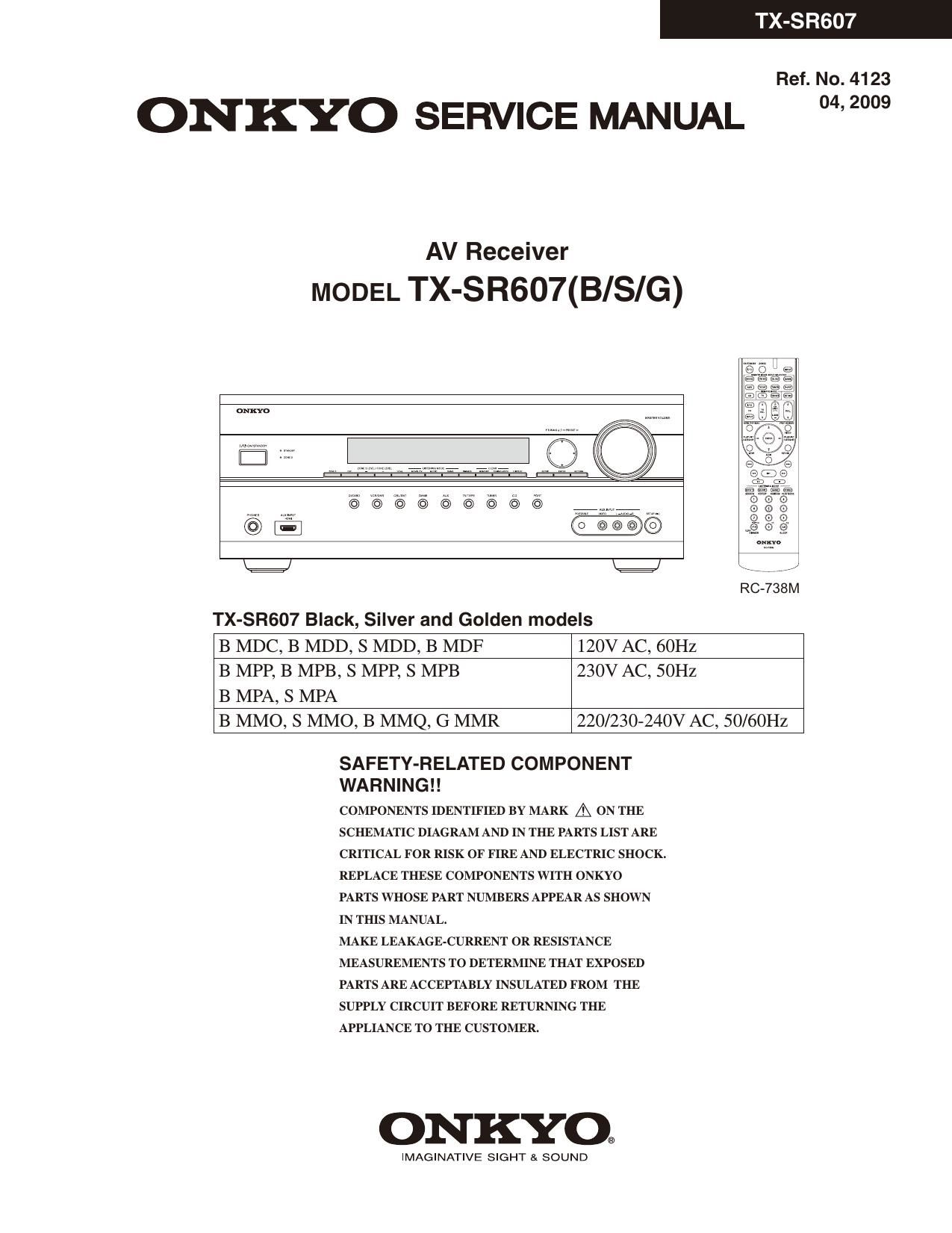

TX-SR607

Ref. No. 4123

ONKYO SERVICE MANUAL 42

AV Receiver

MODEL TX-SR607(B/S/G)

onxvo

RC-738M
TX-SR607 Black, Silver and Golden models
B MDC, B MDD, S MDD, B MDF 120V AC, 60Hz
B MPP, B MPB, S MPP, S MPB 230V AC, SOHz
B MPA, S MPA
B MMO, S MMO, B MMQ, G MMR 220/230-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR As SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYOQ

IMAGINATIVE SIGHT & SOUND
