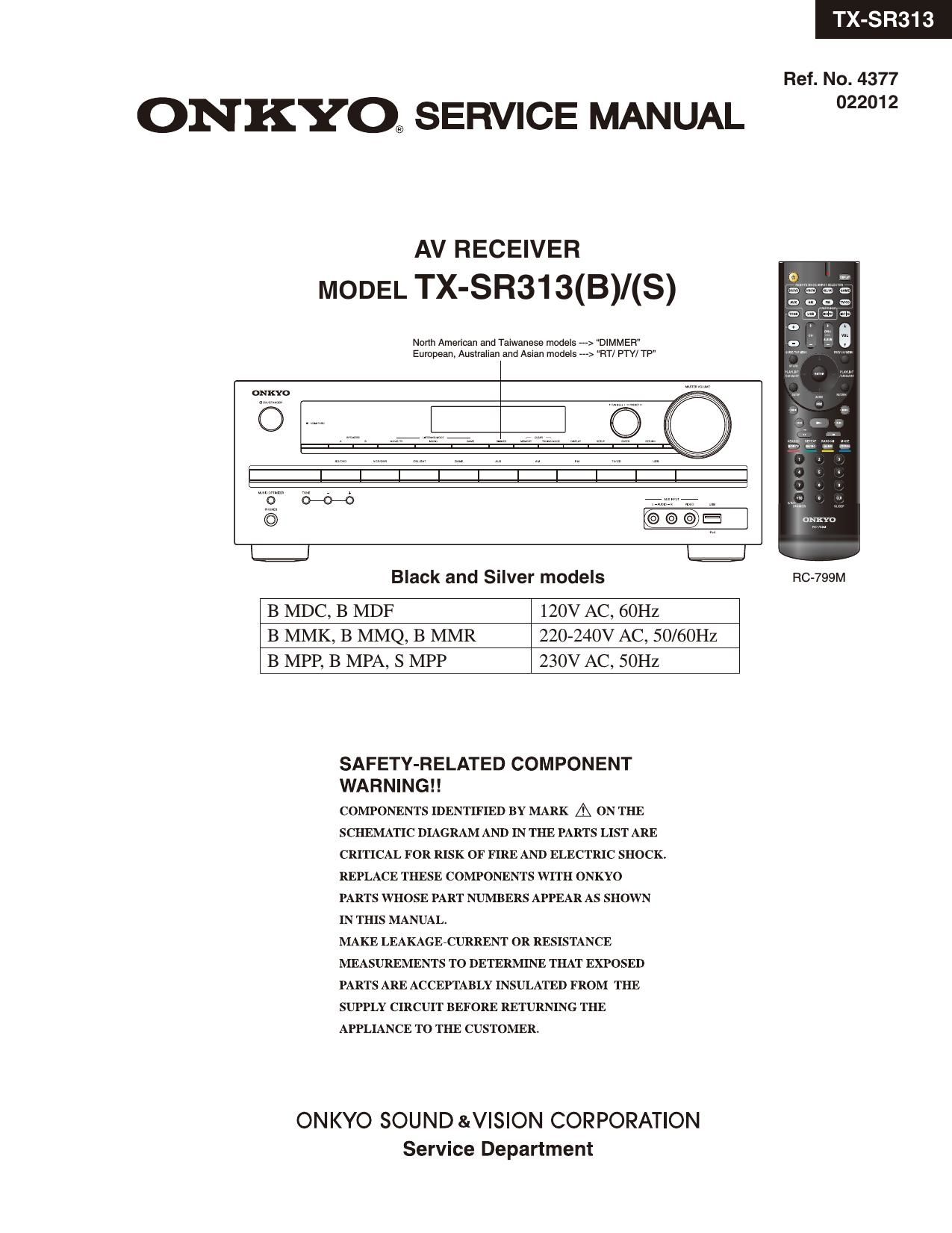

ONKYO® SERVICE MANUAL

AV RECEIVER
MODEL TX-SR313(B)/(S)

North American and Taiwanese models »--> DIMMER
European, Auslralian and Asian models ---> FlT/ PTY/ TP'

o A C: O

.9 :7 i fix? i
© © © ©
1;} L3}
Black and Silver models
B MDC, B MDF 120V AC, 60Hz
B MMK, B MMQ, B MMR 220-240V AC, 50/60Hz
B MPP, B MPA, S MPP 230V AC, 50Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|SION CORPORATION
Service Department

TX-SR313

Ref. NO. 4377
02201 2

FIG-799M
