Onkyo TXNR 808 Service Manual

Extracted text from Onkyo TXNR 808 Service Manual (Ocr-read)

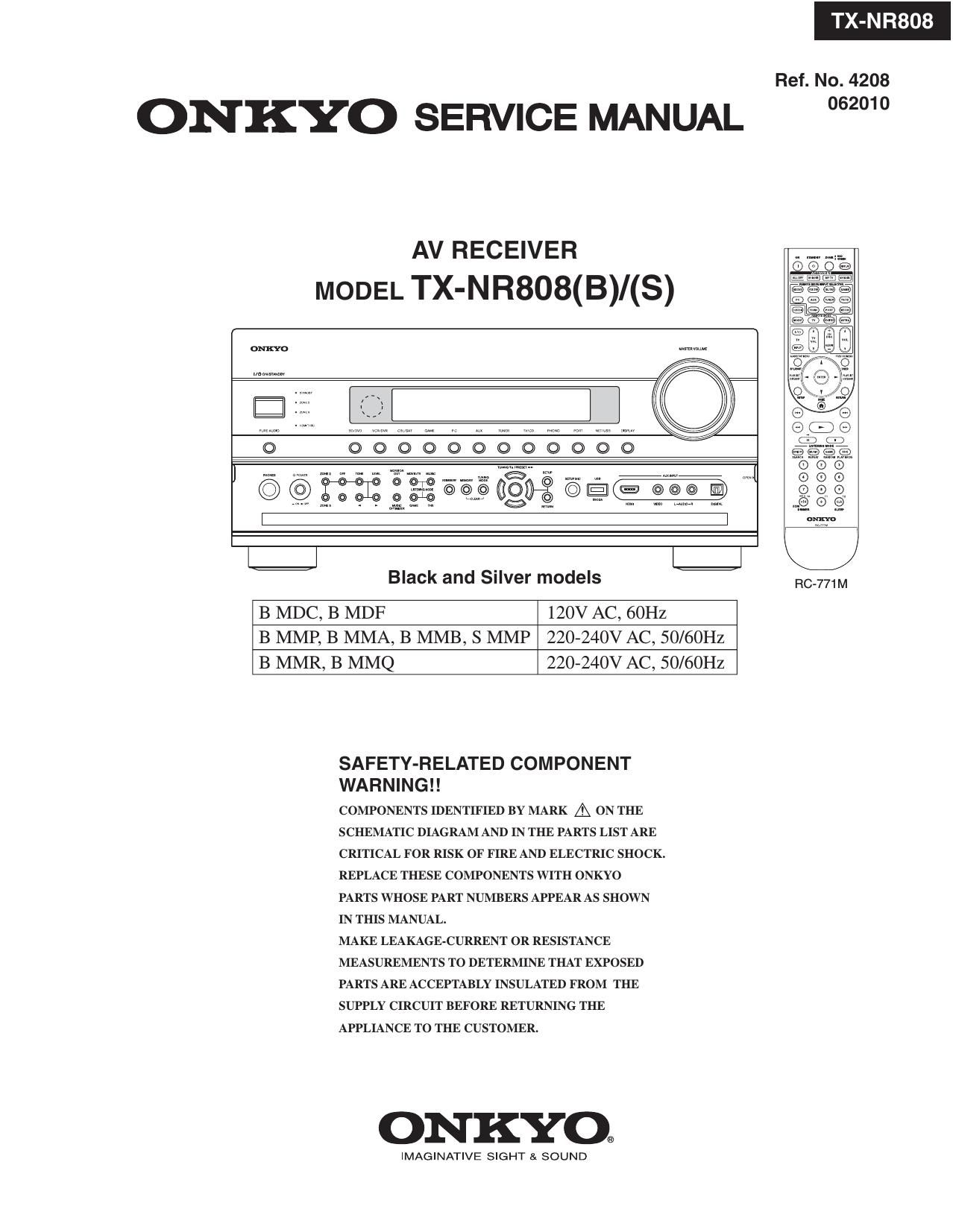

Page 1

TX-N R808

Ref. No. 4208

ONKYO SERVICE MANUAL 2"

AV RECEIVER
MODEL TX-N R808(B)/(S)


Black and Silver models

B MDC, B MDF 120V AC, 60Hz
B MMP, B MMA, B MMB, S MMP 220-240V AC, 50/60Hz
B MMR, B MMQ 220-240V AC, 50/60HZ

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT SI SOUND
