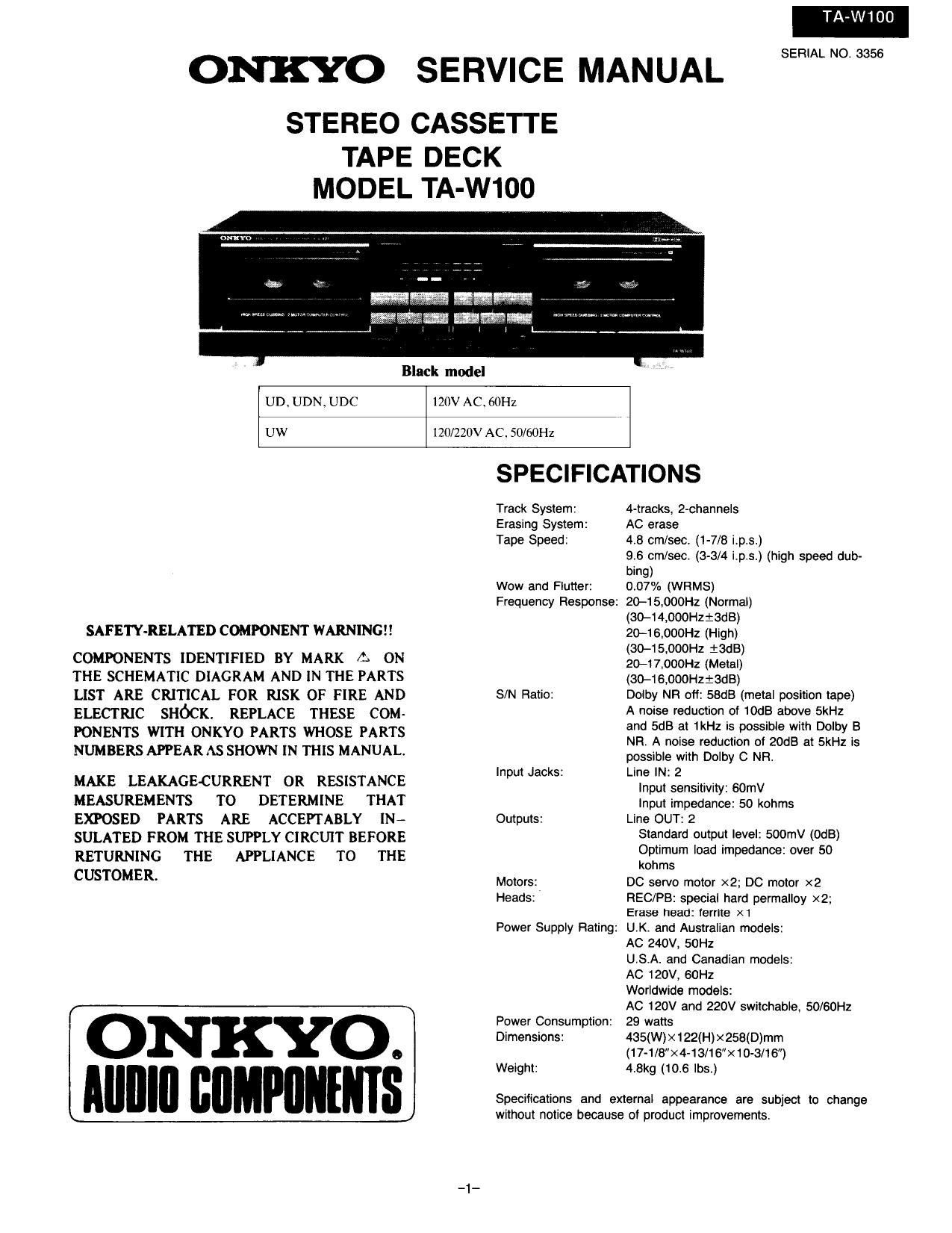

ONKYO SERVICE MANUAL
TA-W100
SERIAL NO. 3356
STEREO CASSETTE
TAPE DECK
MODEL TA-W100
Black model
UD, UDN, UDC
120V AC» 6(in
UW
120/220V AC. SO/OOHZ
SAFETY~RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEARAS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.
ON KYO.
IIIIIII] IIIIIIPIIIIIIIIS
SPECIFICATIONS
Track System: racks, 2-channels
Erasing System: AC erase
Tape Speed: 4.8 cm/sec, (1-7/8 i.p.sr)
9.6 cm/secr (3-3/4 i.p.s.) (high speed dub-
Ding)
Wow and Flutter: 0.07% (WFIMS)
Frequency Response: 20-15,000Hz (Normal)
(SO-14,000Hzi3d8)
20-16,000Hz (High)
(SO-15.000Hz iadB)
2(H7,ooon (Metal)
(SO-16,000H213dB)
S/N Ratio: Dolby NR ofl: SSdB (metal position tape)
A noise reduction of 10dB above 5kHz
and SdB at (Hz is possible with Dolby B
NFi. A noise reduction of 201.18 at 5kHz is
possible with Dolby C NR.
Input Jacks: Line IN: 2
Input sensitivity: 60mv
input impedance: 50 kohms
Outputs: Line OUT: 2
Standard output level: 500mV (OdB)
Optimum load impedance: over 50
kohms
Motors: DC servo motor x2; DC motor x2
Heads: REC/PB: special hard permalloy x2;
Erase head: ferrite x1
Power Suppiy Rating: UK and Australian models:
AC 240V, 50H1
U.S.A. and Canadian models:
AC 120V, 60Hz
Worldwide models;
AC 120V and 220V switchable, 50/60H2
Power Consumption: 29 watts
Dimensions: 435(W)x122(H)x258(D)mm
(17-1/8"><4-13/16"x10-3/16")
Weight: 4,8kg (106 lbs)
Specifications and external appearance are subject to change
without notice because of product improvements,
A-WlOO
SERVICE PROCEDURES
1. Replacement of power supply cord
There are two power supply cord outlets on the strainrelief.
CXA1331S(DOLBY NR)
Insert them m prescribed direction to ensure safery. AS-UC- mu .4: Elm- w
3 (UD<120V> model) should be insened lengthwise and "mm m.
other types of cords should be Inserted honzontally. m M 3 mm M
m u. . a... ..
Power Supply Cord Power Supply Cord
m4: - 2......
m aqu ELI M
E
E
length wise Horizontal
direerion direction E-L
2. Insulating resistance measurement E
IE 3
Connect the insulating-resistance tester between the plug of
power supply cord and chassis.
Specificarions: 500V more than IOMQ m va
E
IC BLOCK DIAGRAM ME
NHIC-3205 (P.B. AMP)
El
16%
[a
ZSCZ7IZGR
l2
TA7291S (MOTOR DRIVE)
Vee Vrol
r
:zzx v5
NJM2068MO PWILLY
ON KYO
Mule-3205
222013
[N I
IN 1
mom
mvur ouTPuI
non:
IN I IN 2 OU 1 out 7
o a u a: stop
I o n L cw/ccw
O 1 L N CCW/ CW
l r L L an:
