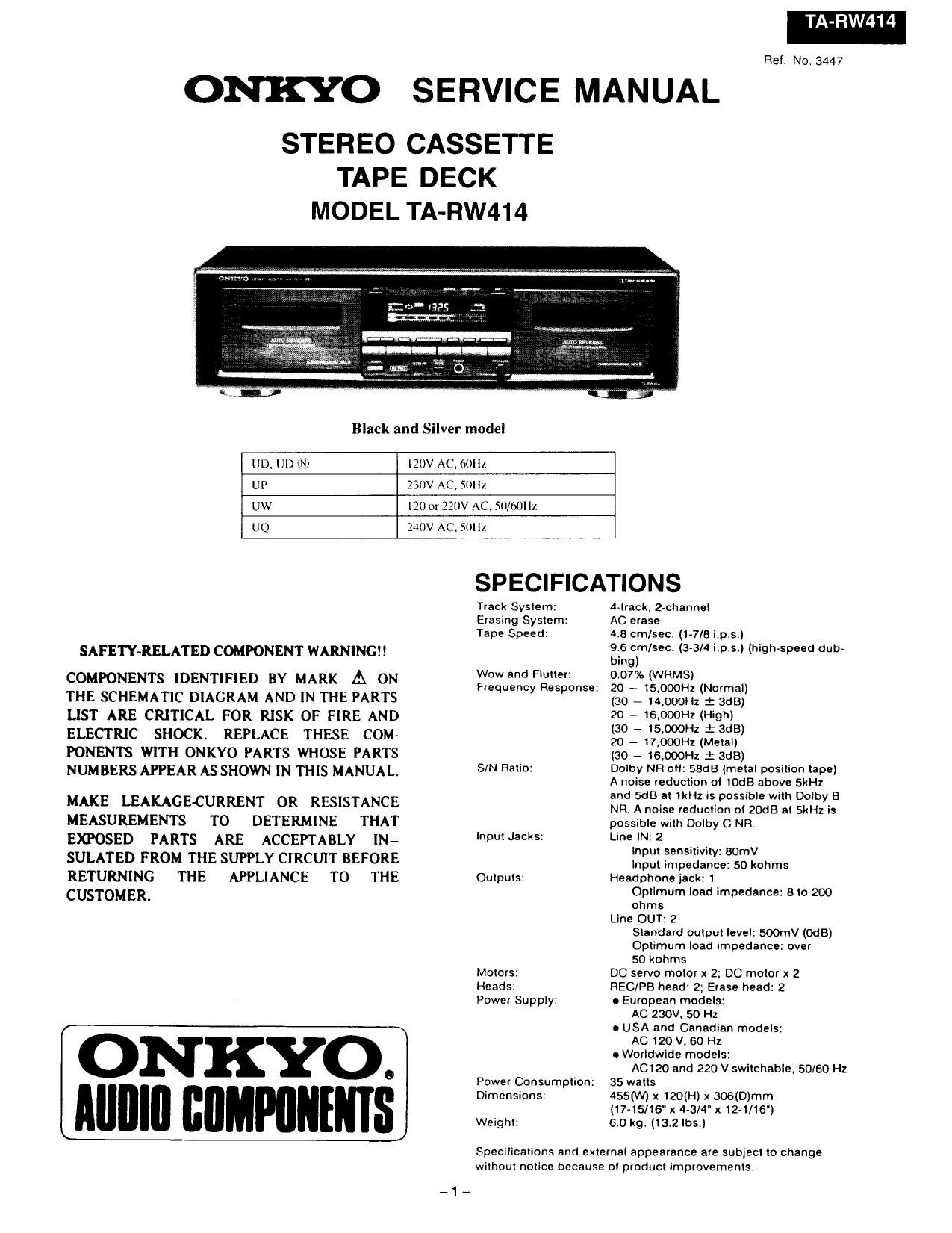

Onkyo TARW 414 Service Manual

Page 1

TA-RW414

Ref. No. 3447

ONKYO SERVICE MANUAL

STEREO

CASSETTE

TAPE DECK
TA-RW414

MODEL

Black and Silver model

Ul), Ul) (\D

I20V AC.6(lIIA

UP

230V AC, SUI Ir.

UW

I20 or 220V AC. 50/601IL

UQ

240V AC, SUIII.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COMA
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

ON KYO.
llIlIIII IiflMPlIIIlIlIS

SPECIFICATIONS

Track System:
Erasing System:
Tape Speed:

Wow and Flutter:
Frequency Response:

S/N Ratio:

Input Jacks:

Outputs:

Motors:
Heads:
Power Supply:

Power Consumption:
Dimension 3:

Weight:

Avtrack, Z-channel
AC erase
4.8 cm/sec. (1-7/8 i.p.s.)
9.6 cm/sec. (33/4 i.p.s.) (highlspeed duty
hing)
0.07% (WRMS)
20 - 15.000Hz (Normal)
(30 7 14,000Hz i 3d8)
20 - 16,000Hz (High)
(30 - 150sz 23:13)
20 - 17,000H2 (Metal)
(30 7 16,000Hz i SUB)
Dolby NR oft: 58GB (metal position tape)
A noise reduction oi todB above 5kHz
and 5dB at tkHz is possible with Dolby B
NR. A noise reduction 0! ZOdB at SkHz is
possible with Dolby C NR.
Line IN: 2
Input sensitivity: BOmV
Input impedance: 50 kohms
Headphonejack: 1
Optimum load impedance: 8 lo 200
ohms
Line OUT: 2
Standard output level: 500mV (OdB)
Optimum load impedance: over
50 kohms
DC servo motor x 2; DC motor x 2
REC/PB head: 2: Erase head: 2
a European models:
AC 230V. 50 Hz
a USA and Canadian models:
AC 120 V. 60 Hz
- Worldwide models:
A0120 and 220 V switchable. 50/60 Hz
35 watts
455(W) x 120(H) x 306(D)mm
(1745/16' x 4~3/4"x12-1/16")
6.0 kg. (13.2 lbs.)

Specifications and external appearance are subject to change
without notice because 0! product improvements.
