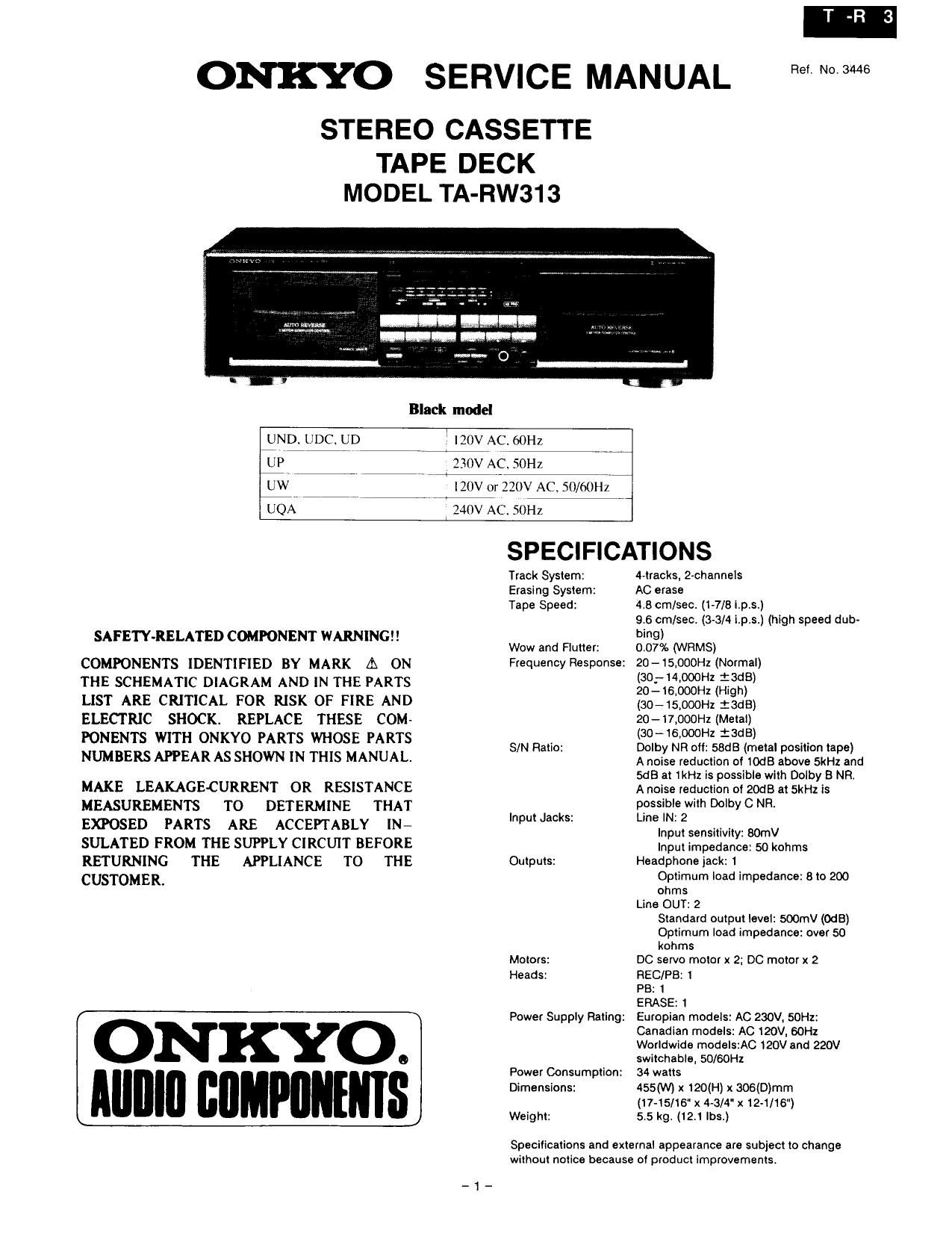

ONKYO SERVICE MANUAL
STEREO CASSETTE
TAPE DECK
MODEL TA-RW313
T-R
Ref, No. 3446
Black model
END. UDC, UD . 120v AC.60Hz
3 230V AC. 50Hz
UW nov or 220v AC, 50/in
UQA 240v AC. 5(le
SAFETY-RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM~
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGECURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.
ON KYO.
AIIIIIII IIIIIIPIIIIIIIIS
SPECIFICATIONS
Track System:
Erasing System:
Tape Speed:
Wow and Fiutter:
Frequency Response:
S/N Ratio:
input Jacks:
Outputs:
Motels:
Heads:
Power Supply Rating:
Power Consumption:
Dimensions:
Weight:
racks, 2-channels
AC erase
4.8 cm/sec. (1-7/8 i.p.s.)
9.6 cm/sec. (3-3/4 i.p.s.) (high speed dub-
bing)
0.07% (wnMS)
20 -15,000Hz (Normal)
(30:14.00on reds)
20- 16.000H1 (High)
(30-1590on :3dB)
2O -17,000Hz (Metal)
(SO-16,000Hz tSdB)
Dolby NR all: 58dB (metal position tape)
Anoise reduction of was above Skill and
MB at (Hz is possible with Dolby 5 NR.
A noise reduction at 20dB at 5kHz is
possible with Dolby C NR,
Line IN: 2
Input sensitivity: BOmV
Input impedance: 50 kchms
Headphone jack: 1
Optimum load impedance: 8 to 200
ohms
Line OUT: 2
Standard output level: SOOmV (OdB)
Optimum load impedance: over 50
kohms
DC servo motor x 2; DC motor x 2
REC/PB: 1
PB: 1
ERASE: 1
Eurcpian models: AC 230V, 50Hz:
Canadian models: AC 120V, 60Hz
Worldwide models:AC 120V and 220V
switchable. 50/60Hz
34 watts
455(W) x 120(H) x 306(D)mm
(17-15/16 x 43/4 x 124/16")
5.5 kg. (12.1 lbs.)
Specifications and external appearance are subject to change
without notice because at product improvements.
