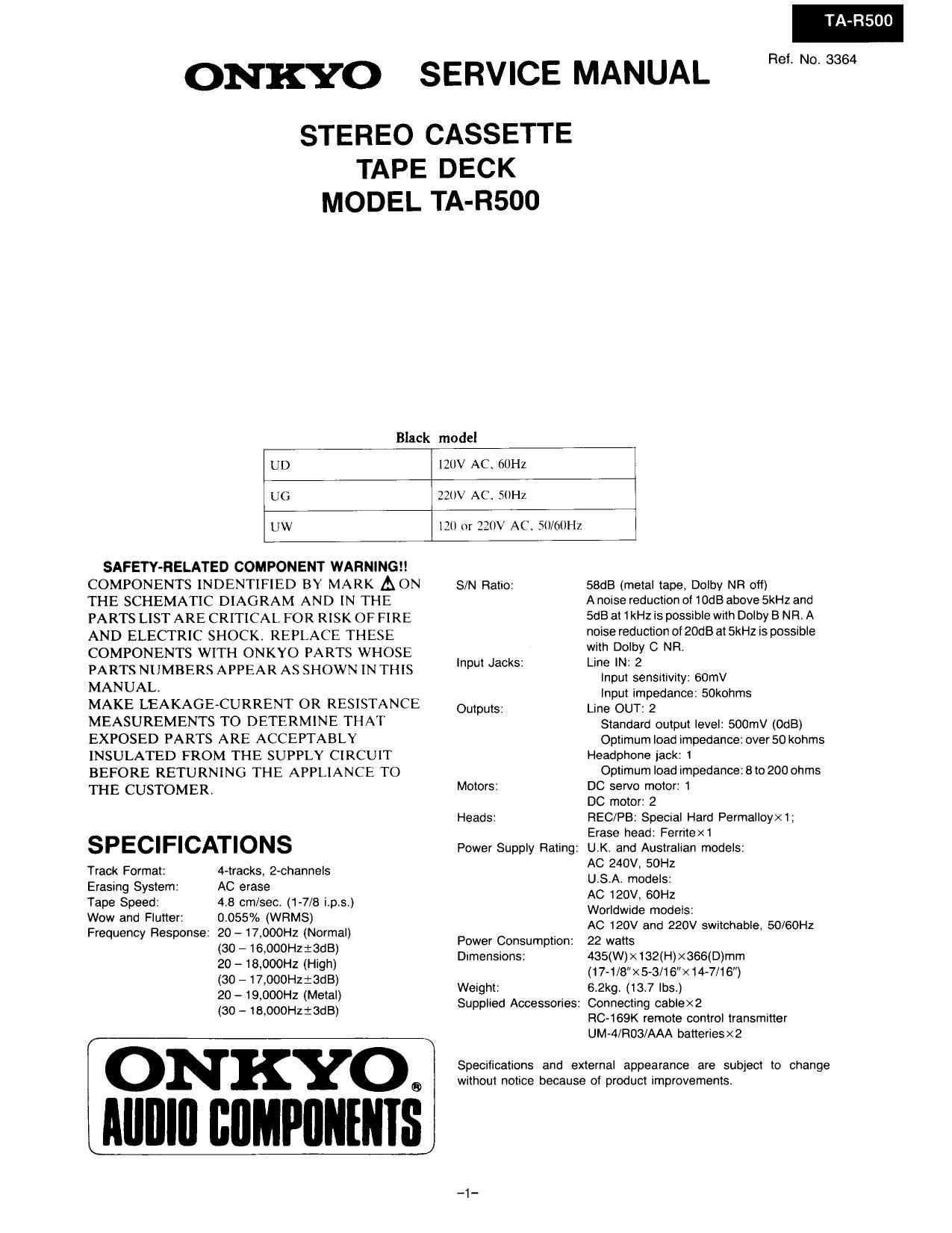

ONKYO

SERVICE MANUAL

STEREO CASSETTE
TAPE DECK
MODEL TA-R500

Black

mode!

TA-RSOO

Ref. No. 3364

UD

120V AC: ()UHZ

UG

220V AC. SOHZ

UW

120 or 220V AC. 5(l/(10IIZ

SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS INDENTIFIED BY MARK AON
THE SCHEMATIC DIAGRAM AND IN THE
PARTS LIST ARE CRITICAL FOR RISK OF FIRE
AND ELECTRIC SHOCK. REPLACE THESE
COMPONENTS WITH ONKYO PARTS WHOSE
PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY
INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER

SPECIFICATIONS

Track Format:
Erasmg System:
Tape Speed:

Wow and Flutter:
Frequency Response:

4-tracks, 2-channels

AC erase

4.8 cm/sec. (1-7/8 i.p.s.)
0.055% (WRMS)

20 - 17,000Hz (Normal)
(30 -16,000H2:3dB)
20 -18,000Hz (High)
(30 -17,000HztadB)
20 - 19,000Hz (Metal)
(30 - 18,000H213dB)

ONKYOG
AIIIIIII IIIIIIPIIIIIIIIS

S/N Ratio:

Input Jacks:

Outputs:

Motors :
Heads:

Power Supply Rating:

Power Consumption:
Dimensions:

Weight:
Supplied Accessories:

SBdB (metal tape, Dolby NR off)
A noise reduction of 10dB above 5kHZ and
5:38 at 1 kHz is possible with Dolby B NH, A
noise reduction oI 20:18 at 5kHz is possible
with Dolby 0 NR
Line IN: 2
Input sensitivity: oomv
Input impedance: 50kohms
Line OUT: 2
Standard output level: SOOmV (OdB)
Optimum load impedance: over 50 kohms
Headphone jack: 1
Optimum load impedance: 8 to 200 ohms
DC servo motor: 1
DC motor: 2
REC/PB: Special Hard Permalloyxt:
Erase head: Ferritexl
UK. and Australian models:
AC 240V, SOHZ
U.S.A. models:
AC 120V, 60Hz
Worldwide models:
AC 120V and 220V switchable, 50/60Hz
22 watts
435(W)X132(H)><366(D)mm
(17-1/8">< 5-3/1 6 X 14-7/16)
6.2kg. (13.7 lbs.)
Connecting cable><2
FtC-169K remote control transmitter
UM-4/R03/AAA batteriesxz

Specifications and external appearance are subject to change
without notice because oi product improvements.
