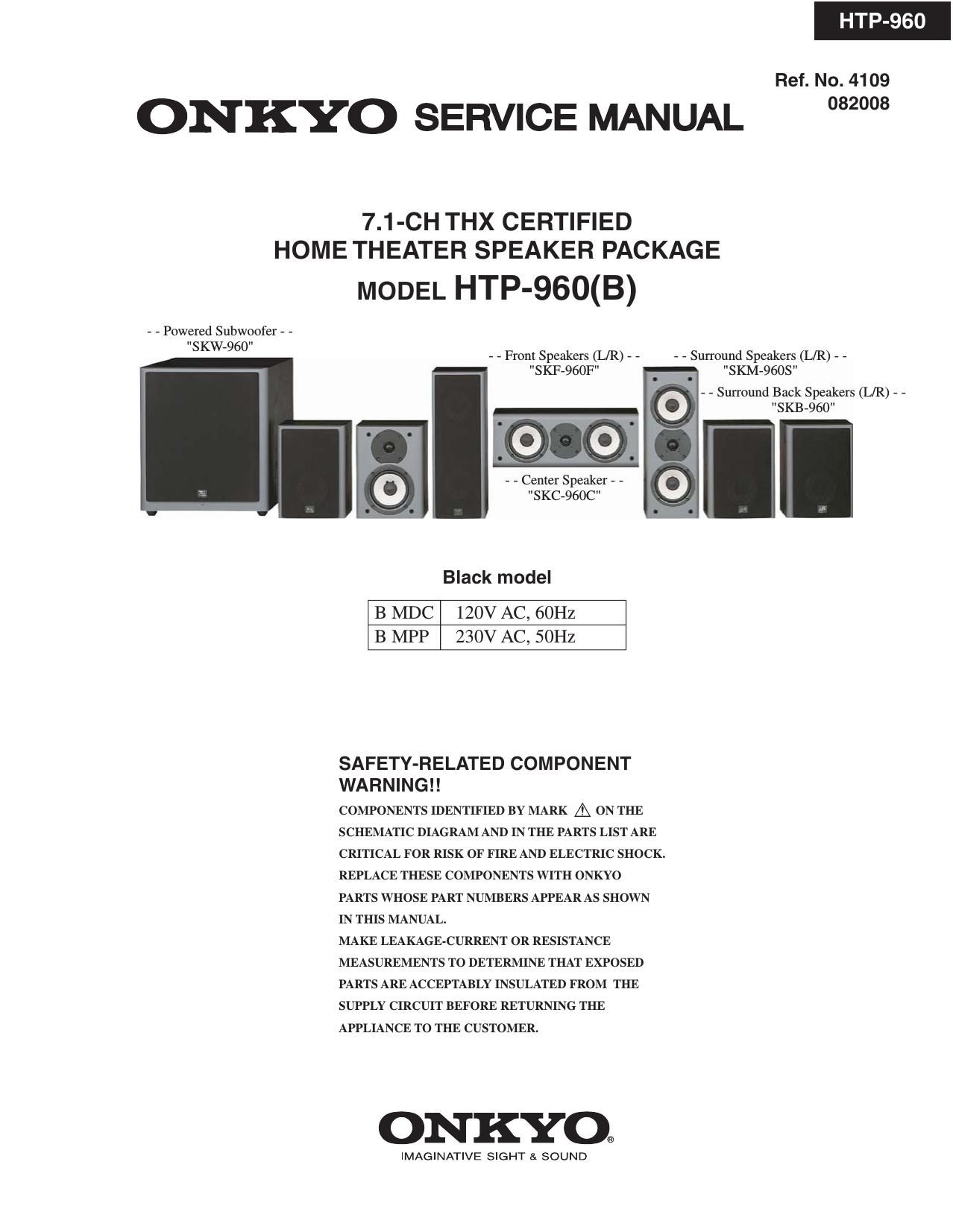

Onkyo SKW 960 Service Manual

Page 1

HTP-960

Ref. No. 4109

ONKYO SERVICE MANUAL 2"

7.1 -CH THX CERTIFIED
HOME THEATER SPEAKER PACKAGE

MODEL HTP-960(B)

- - Powered Subwoofer - -
"SKW-960"

- - From Speakers (L/R) - -
"SKF-960F"

- - Surround Speakers (L/R) - »
"SKM-9GOS"

- - Surround Back Speakers (L/R) - -
"SKB-960

- - Center Speaker - -
"SKC-960C

Black model

B MDC 120V AC, 60Hz
B MPP 230V AC, 50Hz

SAFETY-RELATED COMPONENT
WA R N I N G I I

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT 8 SOUND
