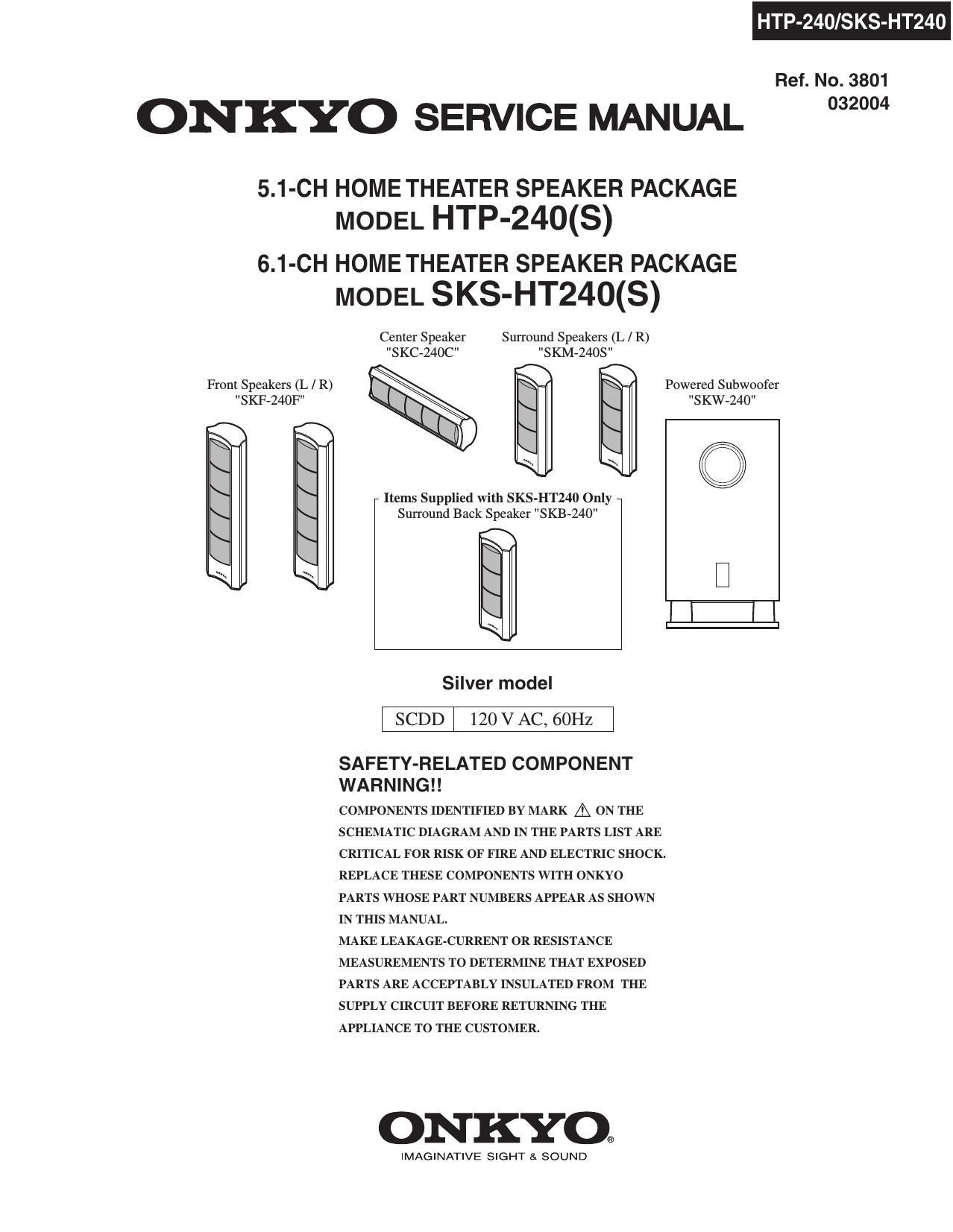

Page 1
SPECIFICATIONS
HTP-240/SKS-HT240
Type :
Input sensitivity/impedance :
Maximum output power :
Frequency response :
SN ratio :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drive unit :
Power supply :
Power consumption :
Other :Bass reflex with built-in
power amplifier
220 mV / 15 k ohm
150 W Dynamic
27 Hz - 150 Hz
70 dB
38.5 L
10-13/16" x 20-3/8" x 16-3/16"
(275 x 518 x 411 mm)
30.9 lbs. (14 kg)
8" cone woofer
AC 120 V, 60 Hz
75 W
Auto Standby function
Front Speaker (SKF-240F)
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drive unit :
Other :2-way bass reflex front
speaker
8 ohm
100 W
82 dB/W/m
55 Hz - 35 kHz
5 kHz
3 L
5-1/8" x 19-11/16" x 3-9/16"
(130 x 500 x 91 mm)
5.5 lbs. (2.5 kg)
3-1/8" cone woofer x 2
1" balanced-dome
tweeter
Magnetic shieldingType :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Speaker :
Other :2-way bass reflex center
speaker
8 ohm
100 W
82 dB/W/m
65 Hz - 35 kHz
5 kHz
2.6 L
17-5/16" x 5-1/8" x 3-9/16"
(439 x 130 x 91 mm)
5.1 lbs. (2.3 kg)
3-1/8" cone woofer x 2
1" balanced-dome
tweeter
Magnetic shielding
Surround Speaker (SKM-240S/SKB-240)
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Speaker :
Other :2-way bass reflex
surround/surround back
speaker
8 ohm
100 W
80 dB/W/m
65 Hz - 35 kHz
6.5 kHz
2 L
5-1/8" x 13-3/8" x 3-9/16"
(130 x 340 x 91 mm)
3.5 lbs. (1.6 kg)
3-1/8" cone woofer
1" balanced-dome
tweeter
Magnetic shielding
Specifications and appearance are subject to change
without prior notice.
Powered Subwoofer (SKW-240) Center Speaker (SKC-240C)
Page 2
HTP-240/SKS-HT240
HTP-240/SKS-HT240
EXPLODED VIEWS-1
SKW-240 : POWERED SUBWOOFER
A02SP06
x 10 pcs.
A05 x 4 pcs.
F903 A03
U02 U03
F902A01
U01
A04
IC501---> Refer to "PRINTED CIRCUIT BOARD PARTS LIST"Refer to "EXPLODED VIEWS-2"
