Onkyo SEU 55 Service Manual

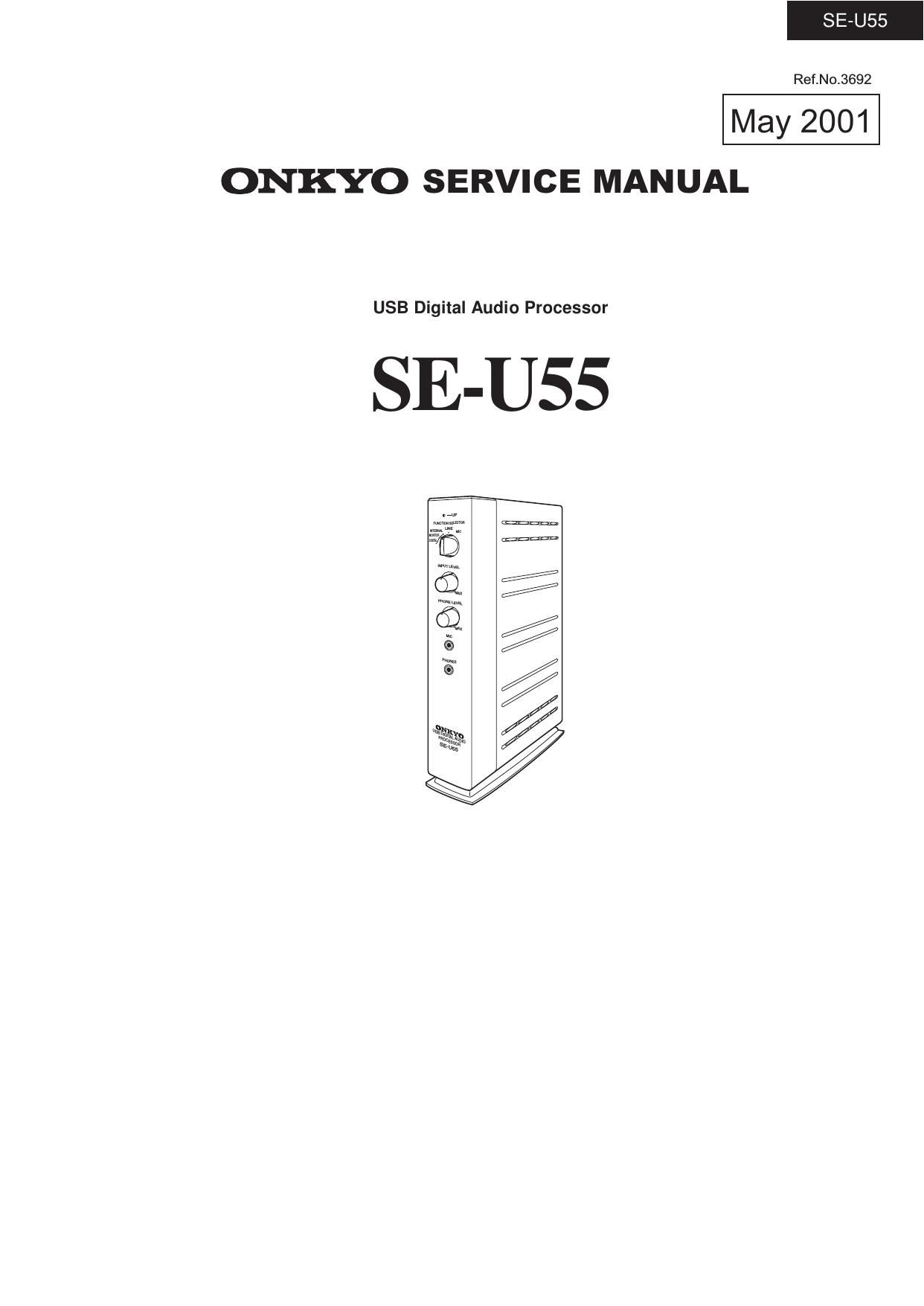

Page 1

SE-U55

RefiNoi3692

May 2001
ONKYO SERVICE MANUAL

USB Digital Audio Processor

SE-USS

Page 2

Mahtspedficafions

Accessofies

Type

USB digital audio processor

Connection method

USB (Universal Serial Bus Ver. 1.1)

Sampling rate
Digital input

32/44.1l48 kHz compatible

Digital output

44.1 kHz

Frequency characteristics

0.3 Hz to 20 kHz (+0/70.5 dB, LINE OUT)

Signal-to-noise ratio

100 dB (Arlilter)

Total harmonic distortion

0.002% (1 kHz, 0 dB)

Output level 1.0 Vrms
Line input level 250 mVrms
Microphone input se4nsitivity 5.0 mVrms

Power supply

USB power supply, separately sold DC 7.5 V (exclusive adapter)

Current dissipation

400 mA

External dimensions

50x216x166mm/115/16"x81/"x69/16"

Weight

0.7 kg /1.5 lbs.

Specifications and external appearance are subject to change without notice.

The SE-U55 comes supplied with the accessories shown below. Make sure that these
accessories are present at the time of purchase. The number in parenthesis is the quantity

of that accessory.

Note:

D This instruction manual (1)
Explains operational procedures and the required settings for
connecting the SE-U55 to your computer.

D CarryOn Music instruction manual (1)
instruction manual for using the supplied software CarryOn
Music.

D CD-ROM (1)
Contains the software for using the SE-U55 with a computer
and an on-line instruction manual.

D SE-U55 (1)
The USB digital audio processor. The SE-U55 converts your
computer's sounds to professional-level high-quality audio
sound.

D Audio pin-cord (1)
For the analog connection of the SE-U55 to external analog
audio devices.

D use cable (1)
For the connection of the SE-U55 to your computer.

D Registration Card (1)
D Quick Setup guide (1)

The power supply lor the SE-U55 is supplied through the USB cable from the connected computer.
