Onkyo PAMC 5500 Service Manual

Page 1

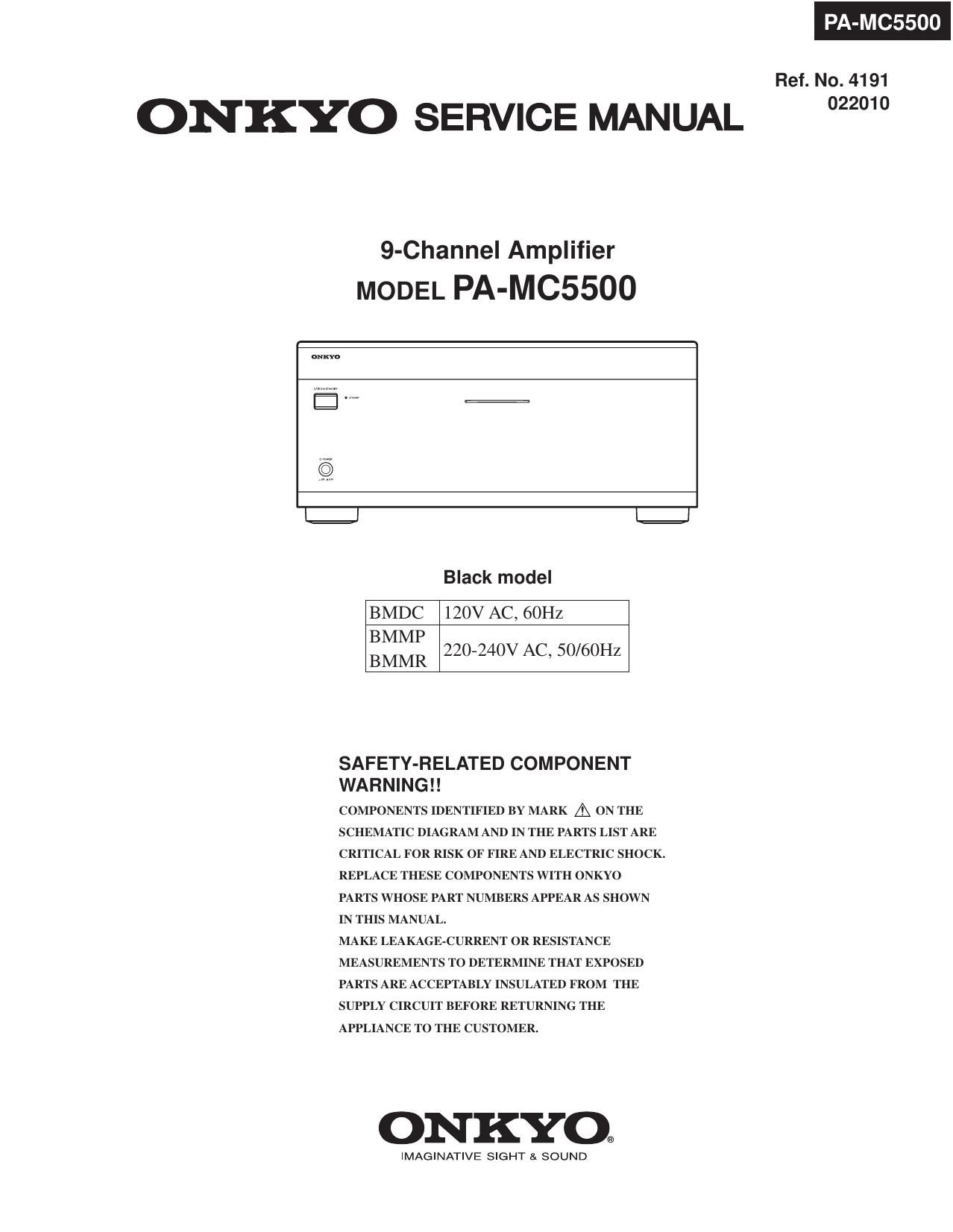

ONKYO SERVICE MANUAL

9-Channel Amplifier
MODEL PA-MC5500

0mm

Black model

BMDC 120V AC, 60Hz
BMMP
BMMR

220-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

PA-MC5500

Ref. No. 4191
022010

Page 2

SERVICE PROCESURE

1. Replacing the fuses

EE' This symbol located near the fuse indicates that the

fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse, For fuse rating, refer to
the marking adjacent to the symbol.

EE Ce symbole indique que le fusible utilise est e lent.

Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu 1e present symbol est apposre.

REF NO. PART NAME DESCRIPTION PART NO. REMARKS

F6601 FUSE 20A7UL-250V 252304GR l

F6602 FUSE ZOAAUL-ZSOV 252304GR l

F6603 FUSE 20A-ULA250V 252304GR l

F6604 FUSE 20A-ULA250V 252304GR l

F9100 FUSE 6.3A-SEAEAK FUSE 252079GR l
F9100 FUSE 12AAUL-ST6 25234OGR l

F9100 or FUSE 6.3A-SE7TL250V 252279GR l
F9301 FUSE 3.15A7UL/T4233 252323GR l

F9301 or FUSE 3.15A~T/UL-ST2 252256GR l

F9401 FUSE 3.15A~UL/T-233 252323GR l

F9401 or FUSE 3.15A~T/UL-ST2 252256GR l

F9402 FUSE 3.15A7UL/T4233 252323GR l

F9402 or FUSE 3.15A~T/UL-ST2 252256GR l

: Canadian model
: European model
: Chinese model

2. Safety check out
(U.S.A. model only)
After correcting the original service problem, perform the following safety check before releasing the unit to the customer.
Leakage current Check
Measure the leakage current to a known earth ground (water pipe or conduct etc.) by connecting a leakage current
tester between the earth ground and exposed metal parts of the unit (input/output ground terminals, screw heads or metal overlays etc.).
Plug the power supply cord directly into a 120Vac 60Hz wall socket and turn ON/STANDBY button on.
Any current measured must not exceed 0.5mA.

3. To initialize position

Power Switch - ON (Pull out the power cord at power on stage)
4ohm/6ohm- fiohm
Auto Power Down 7 PA-MCSSOO MMP: ON

Others: OFF

Input selector - Unbalance
