2Thank you for purchasing ...Before using*Dolby noise reduction and HX Pro headroom
extension manufactured under license from
Dolby Laboratories Licensing Corporation. HX
Pro originated by Bang and Olufsen.
Dolby, the double-D symbol and HX Pro
are trademarks of Dolby Laboratories

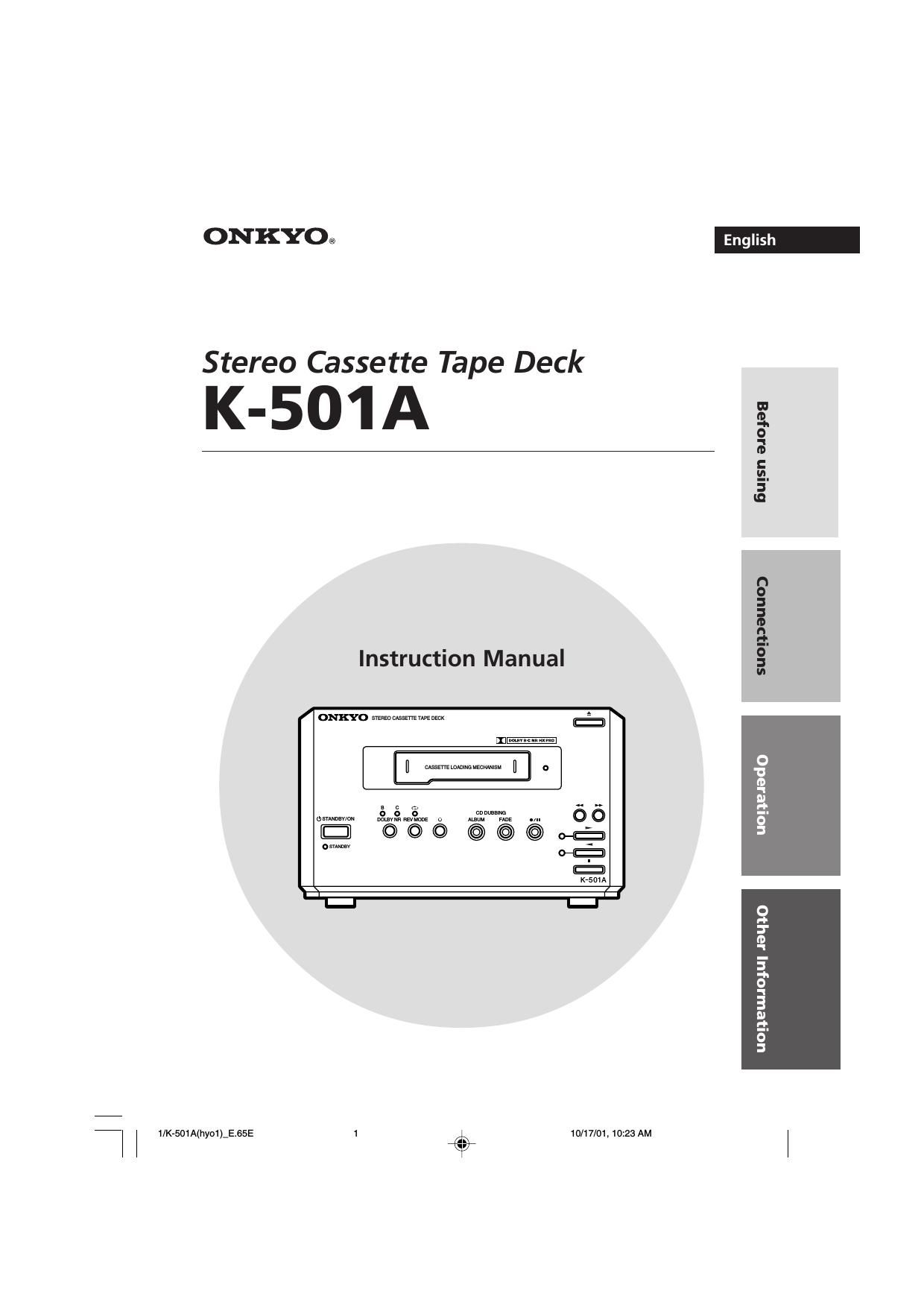

Licensing Corporation. Thank you for purchasing Onkyo K-501A Stereo Cassette Tape Deck.
Please read this manual thoroughly before making connections and plugging in the unit.
Following the instructions in this manual will enable you to obtain optimum performance and
listening enjoyment from your new K-501A.
Please retain this manual for future reference.- Dolby HX Pro system that expands the
dynamic range in higher frequencies
and constantly adjusts recording
conditionsMain Features- A compact, discrete component
with155mm (6-1/8") wide
- Dolby* B NR and Dolby C NR systems
that reduce tape background hissWARNING:TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated dangerous
voltage within the products enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.WARNINGRISK OF ELECTRIC SHOCK
DO NOT OPENRISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIRAVISDeclaration of ConformityWe,
ONKYO EUROPE
ELECTRONICS GmbH
INDUSTRIESTRASSE 20
82110 GERMERING,
GERMANY
GERMERING, GERMANY
ONKYO EUROPE ELECTRONICS GmbHI. MORIdeclare in own responsibility, that the ONKYO product describedin this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.
Page 2
3 Before Using
Connections
Other Information Operations1.Read Instructions - All the safety and
operating instructions should be read before
the appliance is operated.
2.Retain Instructions - The safety and
operating instructions should be retained for
future reference.
3.Heed Warnings - All warnings on the
appliance and in the operating instructions
should be adhered to.
4.Follow Instructions - All operating and use
instructions should be followed.
5.Water and Moisture - The appliance should
not be used near water - for example, near
a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, or near a swimming
pool, and the like.
6.Carts and Stands - The appliance should
be used only with a cart or stand that is
recommended by the manufacturer.
6A. An appliance and cart
combination should
be moved with care.
Quick stops, excessive
force, and uneven
surfaces may cause
the appliance and cart
combination to
overturn.
7.Wall or Ceiling Mounting - The appliance
should be mounted to a wall or ceiling only
as recommended by the manufacturer.
8.Ventilation - The appliance should be
situated so that its location or position does
not interfere with its proper ventilation. For
example, the appliance should not be
situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or
if placed in a built-in installation, such as a
bookcase or cabinet that may impede the
flow of air through the ventilation openings,
there should be at least 5 cm (2 in.) of free
space behind the appliance.
9.Heat - The appliance should be situated away
from heat sources such as radiators, heat
registers, stoves, or other appliances (including
amplifiers) that produce heat.
10.Power Sources - The appliance should be
connected to a power supply only of the typeImportant Safeguardsdescribed in the operating instructions or as
marked on the appliance.
11.Polarization - If the appliance is provided with
a polarized plug having one blade wider than
the other, please read the following information:The polarization of the plug is a safety feature.
The polarized plug will only fit the outlet one
way. If the plug does not fit fully into the outlet,
try reversing it. If there is still trouble, the user
should seek the services of a qualified electrician.
Under no circumstances should the user attempt
to defeat the polarization of the plug.12.Power-Cord Protection - Power-supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them, paying
particular attention to the cords at plugs,
convenience receptacles, and the point
where they exit from the appliance.
13.Cleaning - The appliance should be cleaned
only as recommended by the manufacturer.
14.Nonuse Periods - The power cord of the
appliance should be unplugged from the outlet
when left unused for a long period of time.
15.Object and Liquid Entry - Care should be
taken so that objects do not fall and liquids are
not spilled into the enclosure through openings.
16.Damage Requiring Service - The appliance
should be serviced by qualified service
personnel when:
A. The power-supply cord or the plug has
been damaged; or
B. Objects have fallen or liquid has been
spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate
normally or exhibits a marked change in
performance; or
E. The appliance has been dropped or the
enclosure damaged.
17.Servicing - The user should not attempt to
service the appliance beyond that described in
the operating instructions. All other servicing
should be referred to qualified service personnel.
18.Liquid Hazards - The appliance shall not
be exposed to dripping or splashing and no
objects filled with liquids, such as vases shall
be placed on the appliance. PORTABLE CART
WARNINGS3125A
