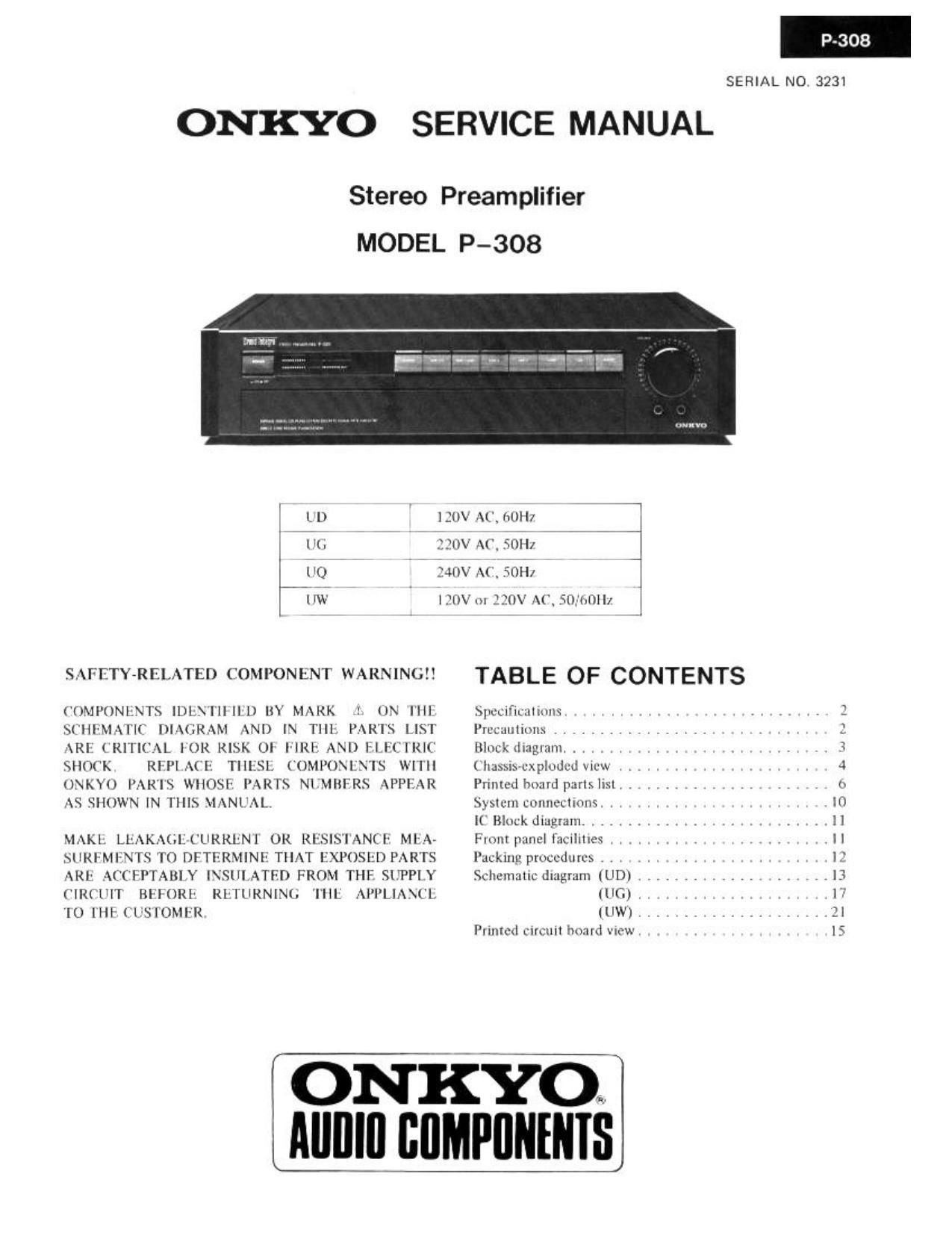

Onkyo Integra P 308 Service Manual

Extracted text from Onkyo Integra P 308 Service Manual (Ocr-read)


Page 2

P-308

SPECIFICATIONS
Input Sensitivity and Signal-to-Noise Ratio: PHONO MC: 81dB (IHF A«202)
Impedance: PHONO MC: 160uV/(100/220) PHONO MM: 92dB (II-IF A-202)
ohms CD: 101dB (II-IF A-202)
PHONO MM: 2.5m/(47 kohms/ Tone Control
. 100 kohms) (Vol. -20dB): BASS: ilodB at 20Hz
CD, TUNER, LINE, TAPE PLAY: TURN OVER FREQUENCY
150mV/20 kohms BASS: 450 Hz
Rated Output and CONTRABASS: ZOOHZ BOOST
Impedance: TAPE REC: 150mV/1 i2 kohrns ONLY
(PHONO) TREBLE: iSdB at 20kHz
OUTPUT: 1.0V/ 160 ohms Filters: HIGH CUT: (TREBLE min.):
Max. 6V 6dB/oct, 7 kHz
RIAA Deviation: i0.2dB, 20-20,000Hz Inputs: PHONO, CD, TUNER, LINE 1 & 2,
Frequency Response TAPE PLAY 1, 2 & 3,
(CD, TUNER, LINE, Outputs: TAPE REC OUT 1, 2 & 3
TAPE): +0, ~3dB, 0.8Hz - 170kHz OUTPUT: 1 (fixed) 2 (variable)
Phono Overload: PHONO MM: 2lOmV RMS at IkHz, Power Supply: Canadian models: AC 120V, 60Hz
THD 0.05% European models: AC 220V, 50Hz
PHONO MC: 13mV RMS at lkl-Iz, British and Australian models:
THD 0.05% AC 240V, SOHZ
Total Harmonic Worldwide models: AC 120V, 60Hz/
Distortion: 0.0008% at PHONO MM, 3V output AC 220V, SOHZ
0.003% at PHONO MC, 3V output Dimensions: 465(W) x 103 (H) x 403 (D) mm
0.0005% at CD, TUNER, LINE and 18 5/16" x 4 1/16" x 15 7/8"
TAPE, 3V output Weight: 8.5 kg, 18.7 lbs.
Intermodulation
Distortion (CD): 0.003% (70HZ: 7kHz = 4: 1) Specifications and features are subject to change without
notice.
PRECAUTIONS

l. Replacing the fuses
For continued protection against risk fire, replace only with same type and same rating fuse.

CIRCUIT NO. PARTS NO. DESCRIPTION
F901 252045 1A (ST-6), Primary fuse (120V, 120V/220V model)
F902 252063 0,5A-SE-EAWK, Primary fuse (220V, 120V/220V, 240V model)

2. Insulation resistance mesurement (Only U.S.A. model)
Connect the insulating-resistance tester between the plug of power supply cable and the terminal GND on the back panel.
Specifications; More than 10 M9 at 500V.

3. Voltage selector (rear panel)
Worldwide models are equipped with a voltage selector to conform with local power supplies. Be sure to set this switch
to match the voltage of the power supply in your area before turning the power switch on. Voltage is changed by sliding
the groove in the switch with a screwdriver or similar instrument to the up or down position. Confirm that the switch
has been moved all the way to the up or down before turning the power switch on. If there is no voltage selector switch
on the unit you have purchased, it can only be used in areas where the power supply voltage is the same as that of the
unit.

__I 220v ~ ___I 220v ~
at AC 220V at AC 120V
"I 120v ~ B '1 120v ~
