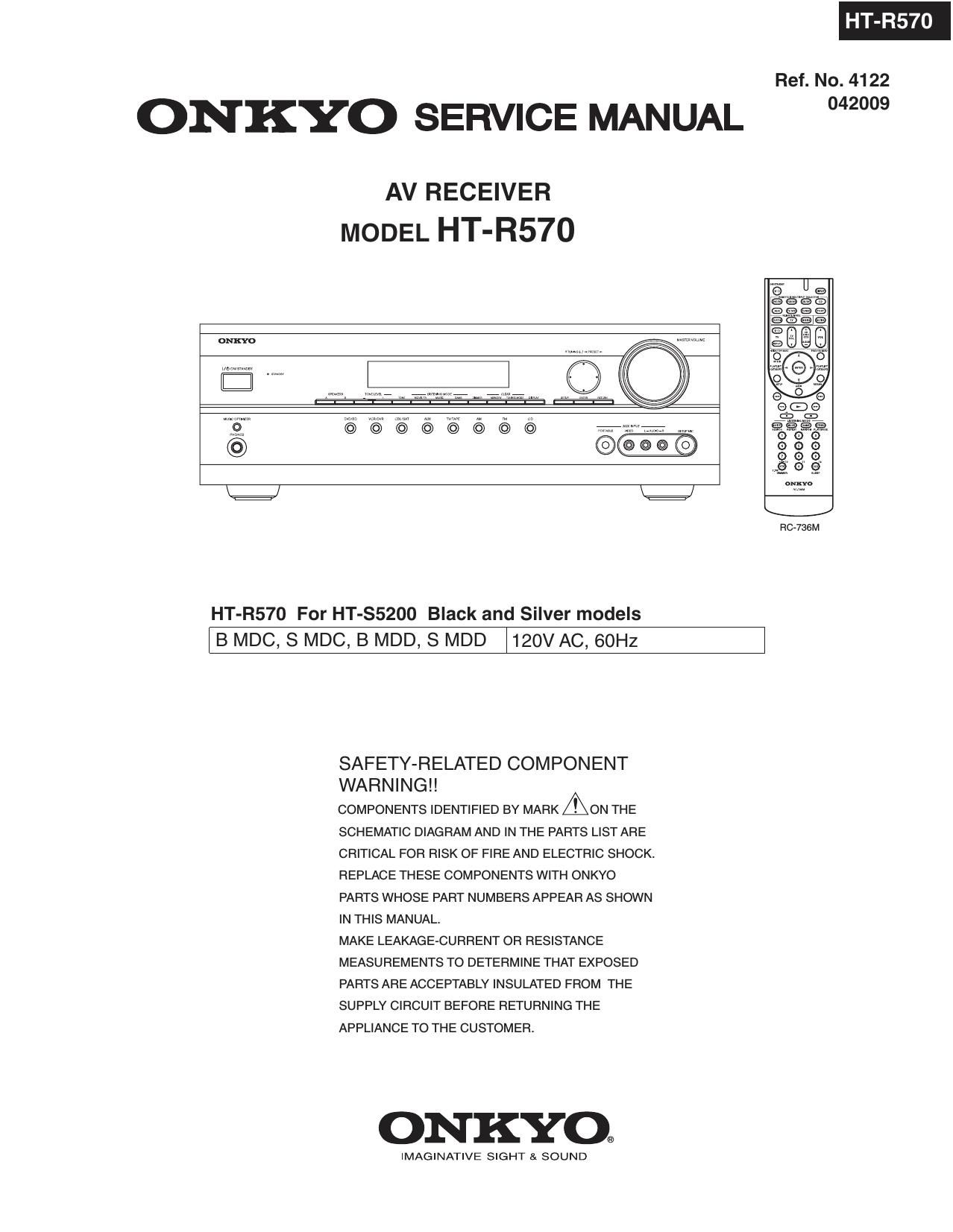

Page 1

ONKYO SERVICE MANUAL

AV RECEIVER
MODEL HT-R570

Ref. No. 4122

042009

HT-R570 For HT-SSZOO Black and Silver models

I B MDC, s MDC, B MDD, s MDD I120v AC, 60Hz

SAFETY-RELATED COMPONENT
WARNING

COMPONENTS IDENTIFIED BY MARK AON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT A SOUND

PIC-736M
