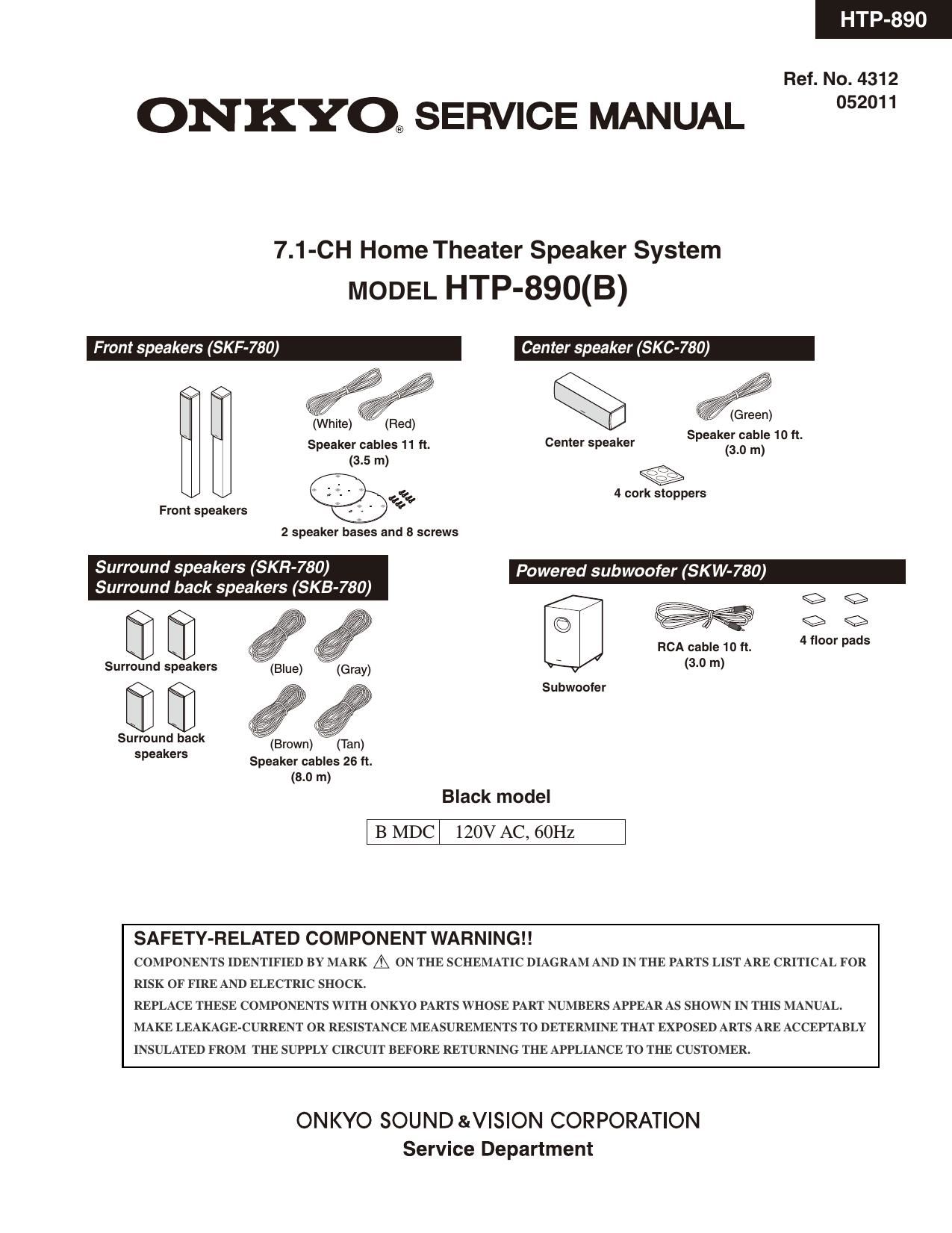

HTP-890

Ref. No. 4312

ONKYO. SERVICE MANUAL 2°"

7.1-CH Home Theater Speaker System
MODEL HTP-890(B)

Front speakers (SKF-780)

i/ i/ 37,177 / .. K: :
V6 , W
(White) (Red)
Speaker cables 11 ft.
(3. 5 m)
:

Front speakers

2 speaker bases and 8 screws

Surround speakers (SKR-780)
Surround back speakers (SKB-780)

Center speaker (SKC-780)

%

Center speaker

Speaker cable 10 ft.

(3.0 m)
@

4 cork stoppers

Powered subwoofer (SK W-780)

9 9
@§ 9 9
RCA cable 10 n. 4 "our pads

Surround Speakers (3.0 m)
Subwoofer
Surroun: back \ (Brown) \, 1(Tan)
Spea ers Speaker cables 26 ft.
(8.0 In)
Black mode|

B MDC 120V AC, 60Hz

RISK OF FIRE AND ELECTRIC SHOCK.

SAFETY-RELATED COMPONENT WARNINGll

COMPONENTS IDENTIFIED BY MARK A ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR

REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED ARTS ARE ACCEPTABLY
INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|SION CORPORATION
Service Department
