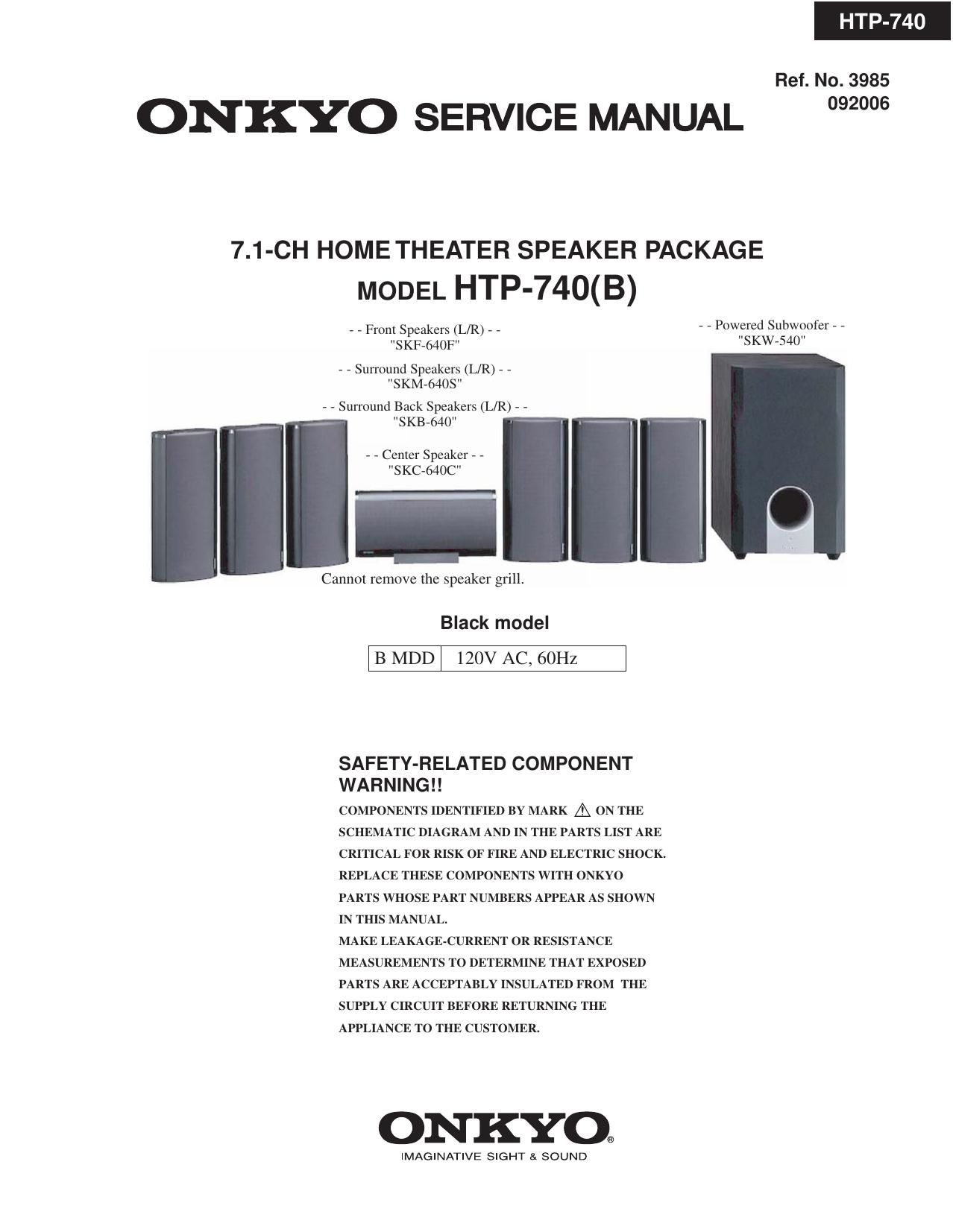

Extracted text from Onkyo HTP 740 Service Manual (Ocr-read)
Page 1
HTP-740
HTP-740
EXPLODED VIEW
SKF-640F / SKC-640C / SKM-640S / SKB-640
SP10
SP14
SP15 SP11SP12
SP13
SP16
SP17SP18
SP19SP20
SP21SP22
SP23 "SKF-640F ""SKC-640C"
TERMINAL :
White / Black
TERMINAL :
Green / Black
SKW-540 ---> Refer to service manual of "SKS-HT540" (Ref. No. 3942-R1)
Cannot remove the speaker grill.
"SKF-640F "
TERMINAL :
Red / Black
"SKM-640S "
TERMINAL :
Blue / Black
"SKM-640S "
TERMINAL :
Gray / Black
"SKB-640 "
TERMINAL :
Brown / Black
"SKB-640 "
TERMINAL :
Tan / Black
Page 2
1/1 PAGE
HTP-740
EXPLODED VIEW PARTS LIS T
REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS
EXPLODED SKF-640F (B) / : FRONT SPEAKERS
EXPLODED SP10 COMPLETE UNIT "SKF-640F (B) " 1 000-SKF640FLBSER
EXPLODED SP11 SPEC LABEL (L) --- 1 600-P640FL-00
EXPLODED SP12 COMPLETE UNIT "SKF-640F (B) " 1 000-SKF640FRBSER
EXPLODED SP13 SPEC LABEL (R) --- 1 600-P640FR-00
EXPLODED SKC-640C (B) : CENTER SPEAKER
EXPLODED SP14 COMPLETE UNIT "SKC-640C (B)" 1 000-SKC640CBSER
EXPLODED SP15 SPEC LABEL --- 1 600-P6400C-00
EXPLODED SKM-640S (B) / : SURROUND SPEAKERS
EXPLODED SP16 COMPLETE UNIT "SKM-640S (B) " 1 000-SKM640SLBSER
EXPLODED SP17 SPEC LABEL (L) --- 1 600-P640SL-00
EXPLODED SP18 COMPLETE UNIT "SKM-640S (B) " 1 000-SKM640SRBSER
EXPLODED SP19 SPEC LABEL (R) --- 1 600-P640SR-00
EXPLODED SKB-640 (B) / : SURROUND BACK SPEAKERS
EXPLODED SP20 COMPLETE UNIT "SKB-640 (B) " 1 000-SKB640SBLBSER
EXPLODED SP21 SPEC LABEL (L) --- 1 600-P640BL-00
EXPLODED SP22 COMPLETE UNIT "SKB-640 (B) " 1 000-SKB640SBRBSER
EXPLODED SP23 SPEC LABEL (R) --- 1 600-P640BR-00
EXPLODED
EXPLODED SKW-540 ---> Refer to service manual of "SKS-HT540" (Ref. No. 3942-R1).
