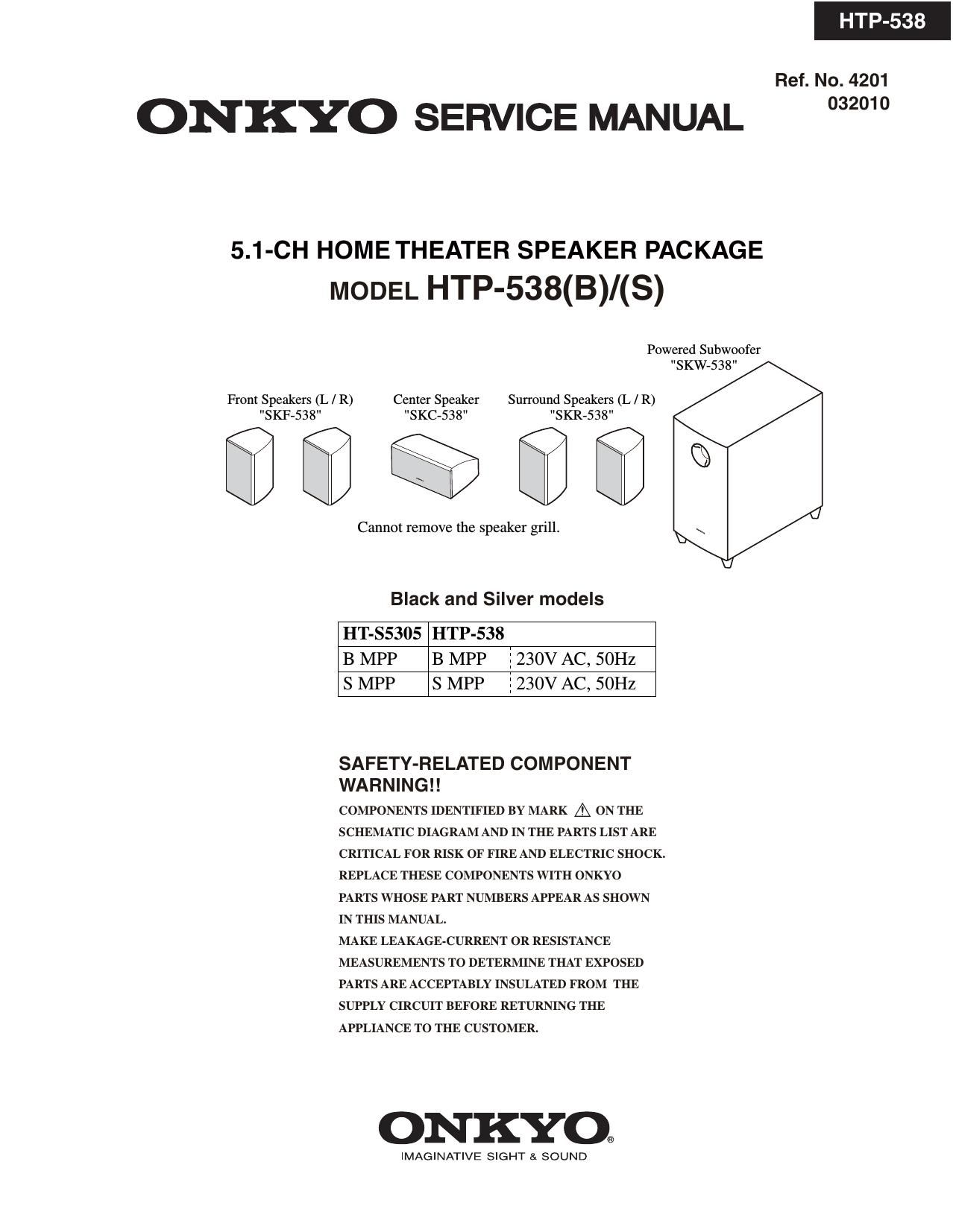

ONKYO SERVICE MANUAL

5.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-538(B)/(S)

From Speakers (L / R) Center Speaker
"SKF-538" "SKC-538

im®®ifl

Cannot remove the speaker grill.

Powered Subwoofer
"SKW-538"

Surround Speakers (L / R)
SKR-538"

Black and Silver models

HT-SS305 HTP-538
B MPP B MPP 3 230V AC, SOHZ
S MPP S MPP 3 230V AC, 50Hz

SAFETY-RELATED COMPONENT
WARNING

COMPONENTS IDENTIFIED BY MARK A ON THE

SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND

HTP-538

Ref. No. 4201
032010
