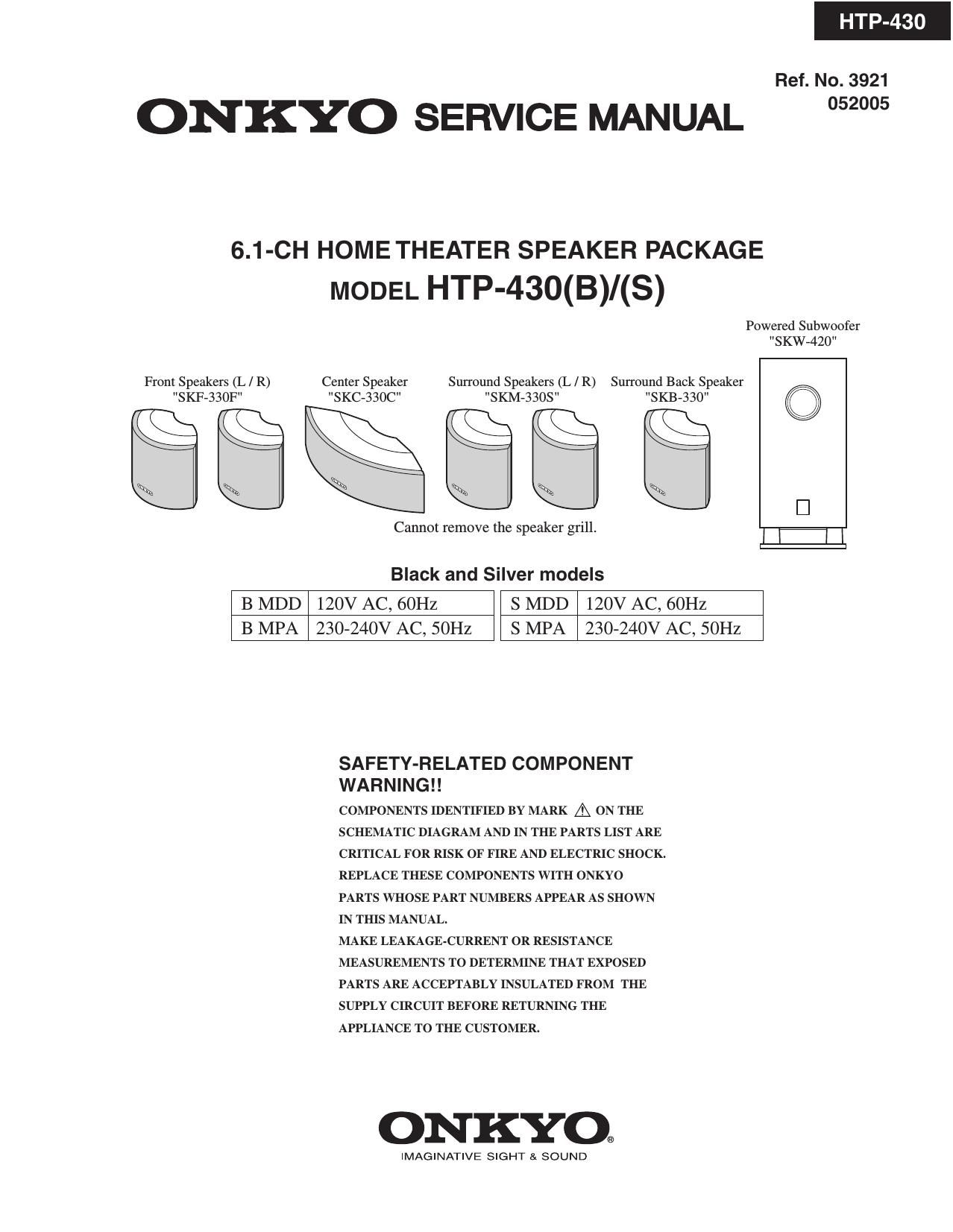

HTP-430

Ref. No. 3921

ONKYO SERVICE MANUAL °52°°5

6.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-430(B)/(S)

Powered Subwoofer
"SKW-420"

"SKF-330F" "SKC-33OC" "SKM-33OS" "SKB-330"

N N Cannot remove the spe:er grill- N LL;

Black and Silver models

B MDD 120V AC, 60Hz S MDD 120V AC, 60Hz
B MPA 230-240V AC, SOHZ S MPA 230-240V AC, 50Hz

From Speakers (L / R) Center Speaker Surround Speakers (L / R) Surround Back Speaker I

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYoe

IMAGINATIVE SIGHT & SOUND

Page 2

HTP-430

SPECIFICATIONS

I Powered Subwoofer (SKW-420) I Center Speaker (SKC-3300)

Type :

Input sensitivity / impedance :
Maximum output power :
Frequency response :
Cabinet capacity :
Dimensions (W x H x D) :

Weight :

Driver unit :

Power supply :
North American :
Australian :

Power consumption :
North American :
Australian :

Other :

Bass-reflex with built-in
power amplifier

220 mV/ 15 k ohm

150 W

30 Hz - 150 Hz

1.15 cubic feet (32.5 L)
9-1/ " x 20-3/8" x 16-3/16"
(235 x 518 x411mm)
28121bsl (1218 kg)

8" (20 cm) Cone (Woofer)

AC 120 V, 60 Hz
AC 230-240 V, 50 Hz

75 W
77 W
Auto Standby function

Front Speaker (SKF-330F)

Type :

impedance :

Maximum input power:
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :

Weight :
Drivers unit :

Terminal :
Key hole slot :
Threaded insert :

Grille :
Other :

2 Way Bass-reflex

8 ohm

100 W

83 dB/W/m

80 Hz - 22 kHz

10 kHz

0.042 cubic feet (1.2 L)
5-13/16" x 7-15/16" x 4"
(148 x 202 x 101 mm)
2.0 lbs. (019 kg)

3-1/8" (8 cm) Cone (Woofer)
3/ " (2 cm) Ceramic (Tweeter)

Spring type color coded

1

North American model :
1/4" screw, Depth 5/16"
Other models :

5 mm screw, Depth 8 mm
Fixed

Magnetic shielding

Type :

impedance :

Maximum input power:
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :

Weight :
Drivers unit:

Terminal :
Key hole slot :
Threaded insert :

Grille :
Other :

2 Way Bass-reflex

8 ohm

100 W

86 dB/W/m

80 Hz - 22 kHz

10 kHz

0.081 cubic feet (2.3 L)
143/16" x 5" x 5-3/16"

(360 x 127 x 131 mm)

3.51bsl (116 kg)

3-1/8" (8 cm) Cone (Woofer) x 2
3/4" (2 cm) Ceramic (Tweeter)
Spring type color coded

2

North American model :

1/ " screw, Depth 5/16"

Other models :

5 mm screw, Depth 8 mm
Fixed

Magnetic shielding

Surround Speaker (SKM-33OS / SKB-330)

Type :

Impedance :

Maximum input power:
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :

Weight :
Drivers unit:

Terminal :

Key hole slot :
Threaded insert :

Grille :

2 Way Bass-reflex

8 ohm

100 W

82 dB/W/m

80 Hz - 22 kHz

10 kHz

0.042 cubic feet (1.2 L)
5-13/16" x 7-15/16" x 4"
(148 x 202 x101mm)

1.5 lbs. (017 kg)

3-1/8 (8 cm) Cone (Woofer)
3/ " (2 cm) Ceramic (Tweeter)
Spring type color coded

1

North American model :

1/4" screw, Depth 5/16"
Other models :

5 mm screw, Depth 8 mm
Fixed

Specifications and appearance are subject to change

without prior notice.
