Page: 1 / 49
Extracted text from Onkyo HTP 320 Service Manual (Ocr-read)

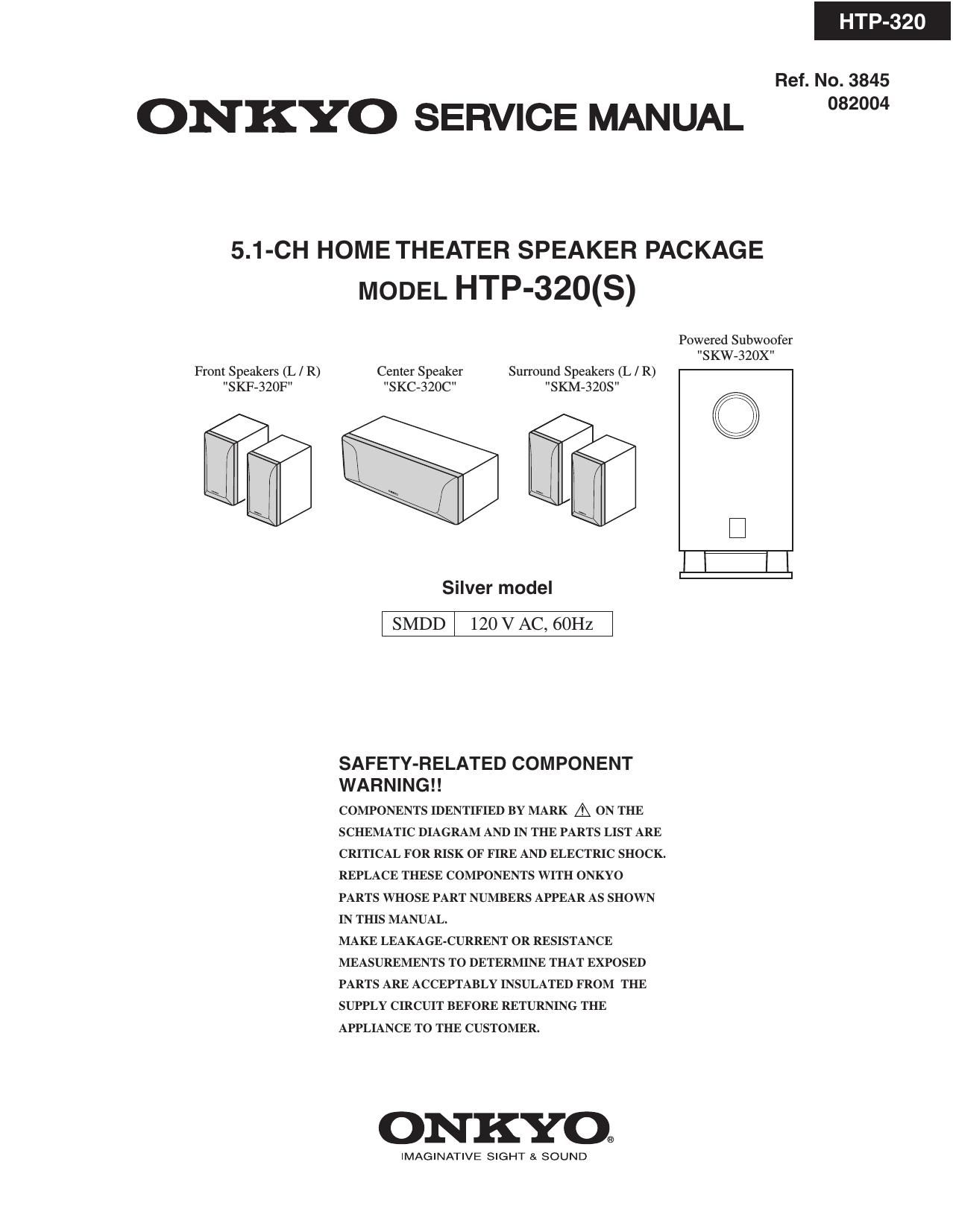

Page 1
HTP-320
SPECIFICATIONS
Type :
Input sensitivity / impedance :
Maximum output power :
Frequency response :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Speaker unit :
Power supply :
Power consumption :
Other :Powered Bass-reflex
220 mV / 15 k ohm
100 W (Dynamic Power)
35 Hz - 150 Hz
0.91 cubic feet (26 Litter)
9-1/16 x 17-13/16 x 15-7/8
inch
(230 x 436 x 404 mm)
24.7 lbs. (11.2 kg)
8 inch Cone
AC 120 V, 60 Hz
75 W
Auto-Standby function
Front Speaker (SKF-320F)
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Speaker unit :
Woofer :
Tweeter :
Terminal :
Other :2 Way Bass-reflex
8 ohm
100 W
76 dB/W/m
70 Hz - 50 kHz
4.5 kHz
0.035 cubic feet (1.0 Litter)
4 x 6-5/8 x 4-15/16 inch
(101 x 169 x 126 mm)
2.6 lbs. (1.2 kg)
3-1/8 inch Cone
1 inch Balanced Dome
Spring type Color coded
Magnetic shieldingType :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Speaker unit :
Woofer
Tweeter
Terminal :
Other :2 Way Bass-reflex
8 ohm
100 W
78 dB/W/m
70 Hz - 50 kHz
4.5 kHz
0.057 cubic feet (1.6 Litter)
10-3/8 x 4 x 4-15/16 inch
(264 x 101 x 126 mm)
4.4 lbs. (2.0 kg)
3-1/8 inch Cone x 2
1 inch Balanced Dome
Spring type Color coded
Magnetic shielding
Surround Speaker (SKM-320S)
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Speaker unit :
Woofer :
Tweeter :
Terminal :2 Way Bass-reflex
8 ohm
100 W
79 dB/W/m
70 Hz - 30 kHz
10 kHz
0.035 cubic feet (1.0 Litter)
4 x 6-5/8 x 4-15/16 inch
(101 x 169 x 126 mm)
1.8 lbs. (0.8 kg)
3-1/8 inch Cone Woofer
3/4 inch Ceramic Tweeter
Spring type Color coded
Specifications and appearance are subject to change
without prior notice.
Powered Subwoofer (SKW-320X) Center Speaker (SKC-320C)
Page 2
HTP-320
EXPLODED VIEWS-1
SKW-320X : POWERED SUBWOOFER
HTP-320
A02SP06
x 10 pcs.
A05 x 4 pcs.
A04
F903 A03
U02 U03
F902A01
U01
IC501---> Refer to "PRINTED CIRCUIT BOARD PARTS LIST"Refer to "EXPLODED VIEWS-2"
