Onkyo DXHD 805 Service Manual
This is the 85 pages manual for Onkyo DXHD 805 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from Onkyo DXHD 805 Service Manual (Ocr-read)

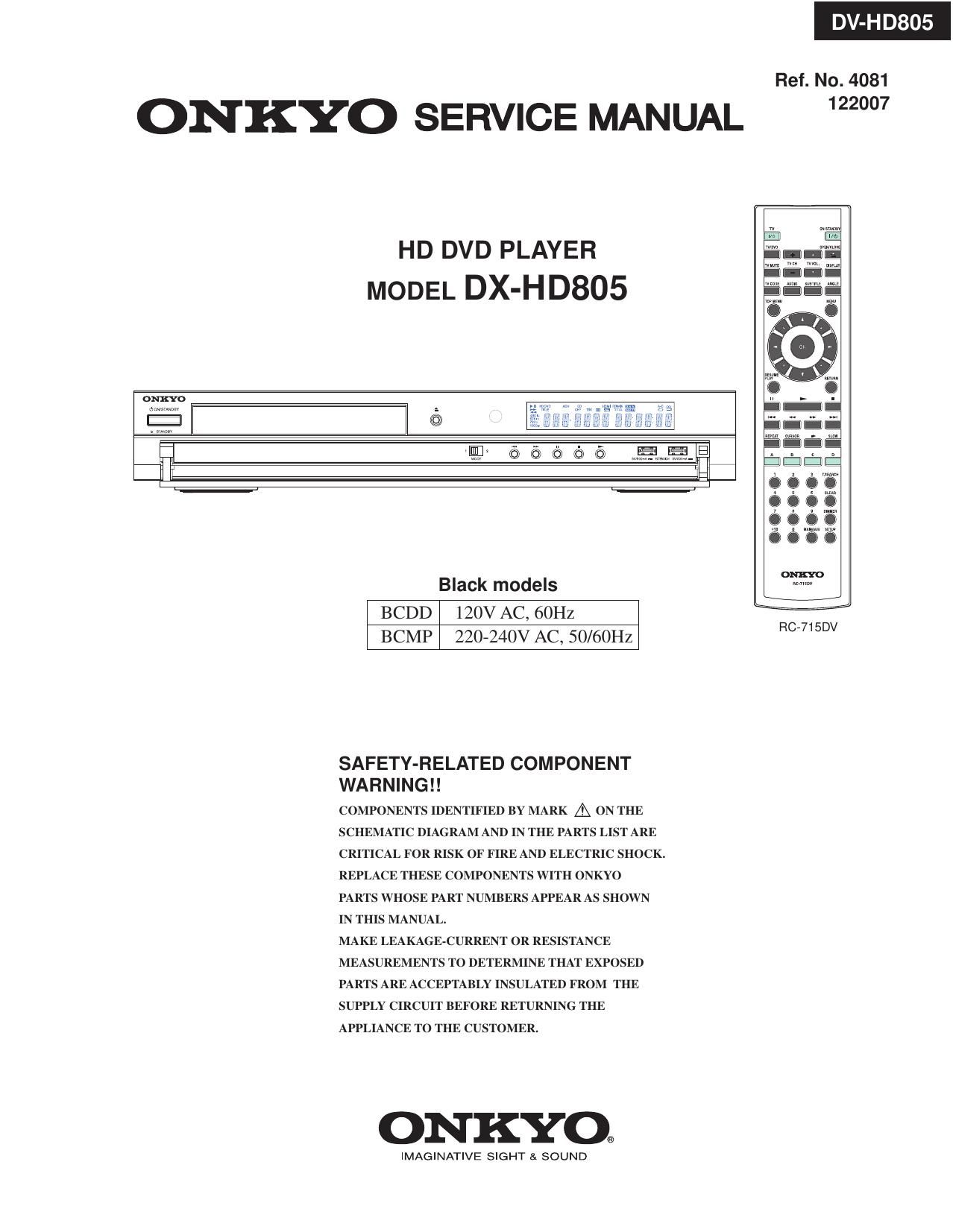

Page 1
DV-HD805
Ref. No. 4081
ONKYO SERVICE MANUAL 2°
HD DVD PLAYER
MODEL DX-HD805
Black models :5"
BCDD 120V AC, 60Hz m
BCMP 220-240V AC, 50/60Hz '
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
