Onkyo DXC 530 Service Manual

Extracted text from Onkyo DXC 530 Service Manual (Ocr-read)

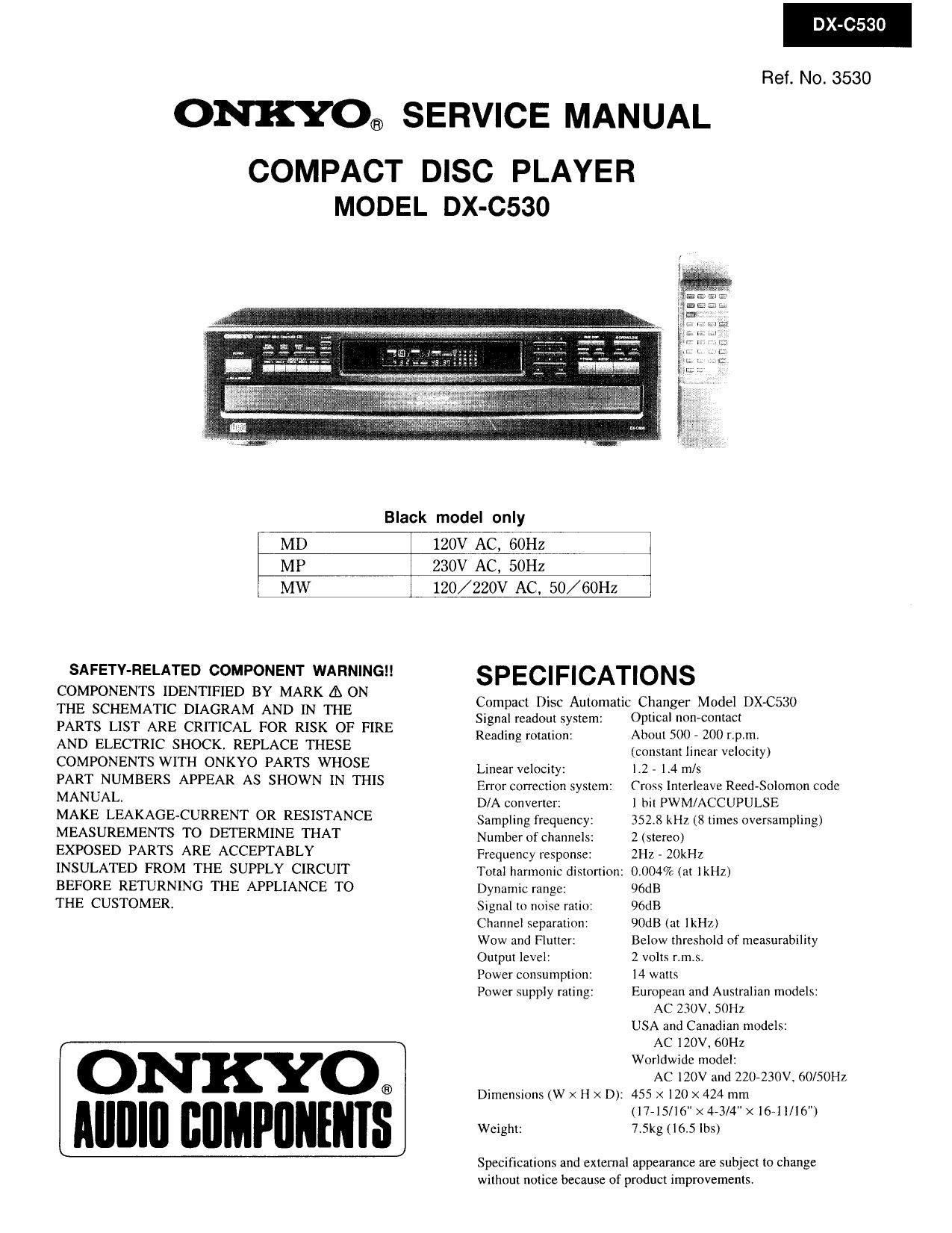

Page 1

DX-C530

Ref. No. 3530
ONKYO® SERVICE MANUAL
Black model only
MD 120V AC, 60HZ
MP 230V AC, 50Hz
MW 120/220V AC, 50/60HZ
SAFETY-RELATED COMPONENT WARNING SPECIFICATIONS
COMPONENTS IDENTIFIED BY MARK A ON C D' A N Ch' M d 1 DXC ,
THE SCHEMATIC DIAGRAM AND IN THE 3.0mlfido'sf ggfimamO gggfgmgmgd ' 550
PARTS LIST ARE CRrrICAL FOR RISK OF FIRE kffingermazg' Agent 500_ 200W
AND ELECTRIC SHOCK. REPLACE THESE (constant linear velocity)
COMPONENTS WITH ONKYO PARTS WHOSE Linear velocity: 12 , 14 m/s
PART NUMBERS APPEAR AS SHOWN IN THIS Error correction system: Cross lnterleave Reed-Solomon code
MANUAL ' V D/A converter: 1 bit PWM/ACCUPULSE
MAKE LEAKAGECLRREIT 0R RESISTANCE Sampling frequency: 352.8 kHz (8 times oversampling)
MEASUREMENTS TO DETERMINE THAT Number ofchannels: 2 (stereo)
EXPOSED PARTS ARE ACCEPTABLY Frequency response: 2Hz- 2(lkHz
INSULATED FROM THE SUPPLY CIRCUIT Total harmonic distortion: 000479 (at lkHz)
BEFORE RETURNING THE APPLIANCE TO Dynamic range: 96dB
THE CUSTOMER. Signal to noise ratio: 96dB
Channel separation: 90dB (at lkHz)
Wow and Flutter: Below threshold of measurabiliiy
Output level: 2 volts r.m.s.
Power consumption: 14 watts
Power supply rating: European and Australian models:

ONKYO®
AIIIIIII BIIMPIIIIIIIIS

AC 230V. SUHZ
USA and Canadian models:
AC 120V, 60Hz
Worldwide model:
AC 120V and 220-230V, 60/50Hz
Dimensions (W x H x D): 455 x 120 x 424 mm
(17-15/16" ><4«3/4" >< loll/lo")
Weight: 75kg (16.5 lbs)

Specifications and external appearance are subject to change
without notice because of product improvements

Page 2

DX-C530

TABLE OF CONTENTS

SPEGFICATION

SERVICE PROCEDURE

CAUTION ON REPLACEhrfEIfl' OF OPTICAL PICKUP
PROTECTION OF EYES FROM LASER BEAM
LASER WARNING LABELS

IC BLOCK DIAGRAM

MICROPROCESSOR CONNECTION DIAGRAM
MICROPROCESSOR TERMINAL DESCRIPTION
MECHANISM FXPLODED VIEW

PARTS LIST

PICKUP DRIVE UNIT

PRINTED CIRCUIT PC BOARD » PARTS LIST
d-[ASSIS EXPLODED VIEW PARTS LIST
GIANGER MIEU-IANISM PARTS LIST
CHASSIS EXPLODED VIEW

BLOCK DIAGRAM

ADJUSTMENT PROCEDURE

PRIME) CIRCUIT BOARD VIEW FROM BOTTOM SIDE
PACKING VIEW

SCHEMATIC DIAGRAM

CONTROL POSITION AND NAMES

SERVICE PROCEDURES

1. Safety-check out
After correcting the original service problem,perform
the following safety check before releasing the set
to the customer:
Connect the insulating-resistance tester between the
plug of power supply cord and chassis.
SpecificationszMore titan lOMohm at 500V.

2. V oltage Selector (B ack panel)
Worldwide models are equipped with a voltage selector
to conform with local power suppliesBe sure to set
this switch to match the voltage of the power supply
in user's area before turning the power switch on.
Voltage is changed by sliding the groove in the switch
with a screw driver to the right or left.
Confirm that the switch has been moved all the way to
the right or left before turning the power switch on.

[ID Ell]
220V ~ ' 120V ~ 220V ~ 120V ~
at AC120V at AC220V

CAUTION ON REPLACEMENT OF OPTICAL PICK UP

The laser diode in the optical pickup block is so
sensitive to static electricitysurge current and etc,
that the components are liable to be broken down
or its reliability remarkably deteriorated.

PRECAUTIONS

During repaimarefulley take the following precautions.

(The following precautions are included in the service
Pans.)

1.Ground for the work-desk.
Place a conductive sheet such as a sheet of copper
(with inpedance lower than 10M0) on the work-
desk and place the set on the conductive sheet so
that the chassis.

2.6munding for the test equipment and tools.
Test equipments and toolings should be grounded
in order that their ground level is the same the
ground of the power source.

lGrounding for the human body.

Be sure to put on a wrist~strap for grounding whose
other end is grounded.
Be particularly careful when the workers wear
synthetic fiber clothes, or air is dry.

4.Select a soldering iron that permits no leakage and
have the tip of the iron well-grounded.

5.Do not check the laser diode terminals with the
probe of a circuit tester or oscilloscope.
